JGBS86SP2SS UPPER OVEN

JGBS86SP2SS UPPER OVEN

Written by

in

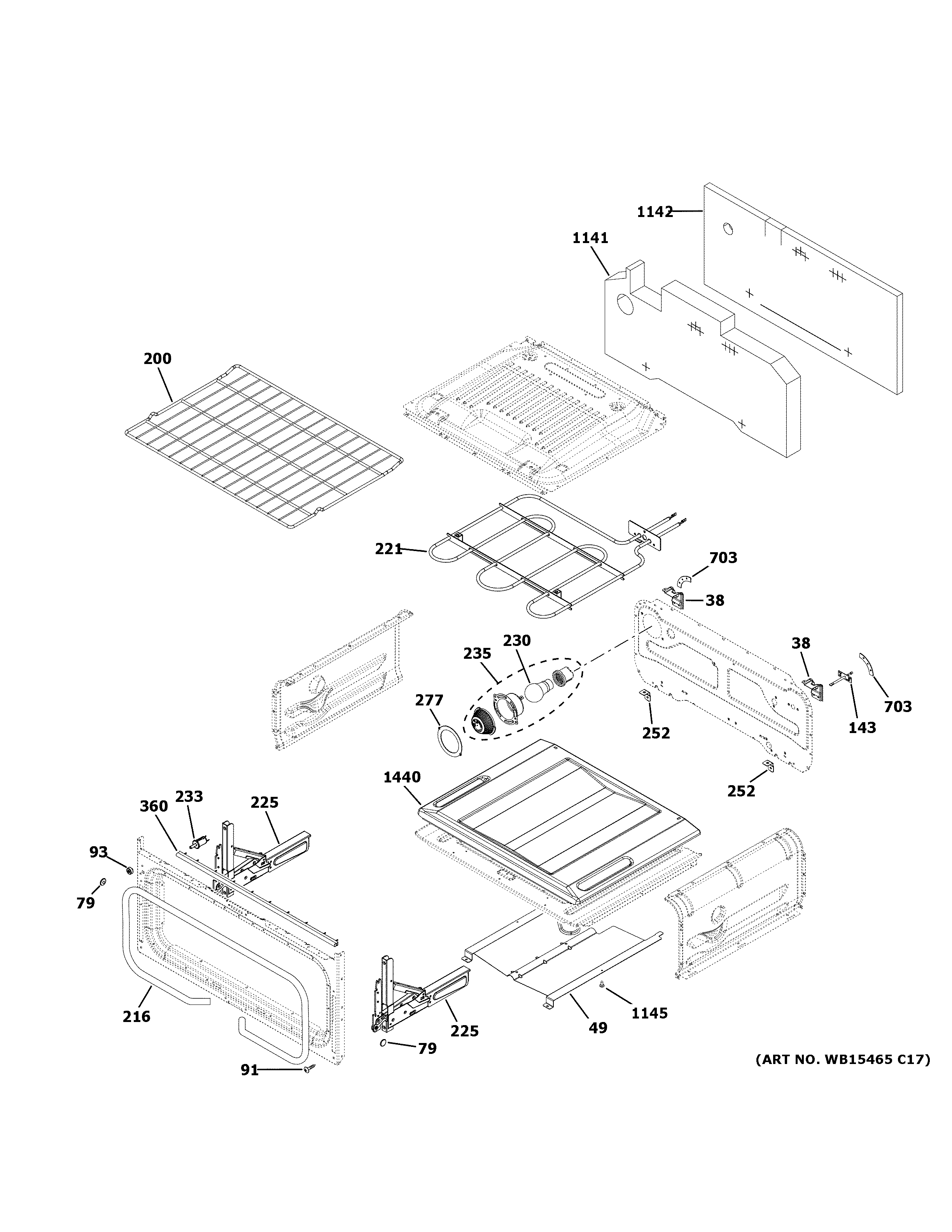

JGBS86SP2SS UPPER OVEN

Products

PositionProduct
38BRACKET CAVITY
49WB34X28907 GE Bake Deflector Upper
79SPACER SIDE
91WB01T10008 GE Oven Screw 10-32
93WB02X28737 GE Oven Front Frame Bumper
143WB24X25056 GE Oven Sensor Assembly
200OVEN RACK
216WB32K10047 GE Oven Gasket
221BROIL ELEMENT
225WB10X28783 GE Left Hand Hinge Assembly
230RANGE ONLY 40W 120V APPL BULB
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
252WB2K3 GE Angle Support
277WB32K10044 GE Oven Light Gasket
360WB35X25645 GE Drawer Gasket Assembly
703BRACKET OVEN
1141WB35X28788 GE Oven Back Insulation
1142WB35X28790 GE Oven Back Insulation
1145WB01T10009 GE Screw 10-16 Shoulder Type A
1440WB63X24934 GE Oven Bottom
