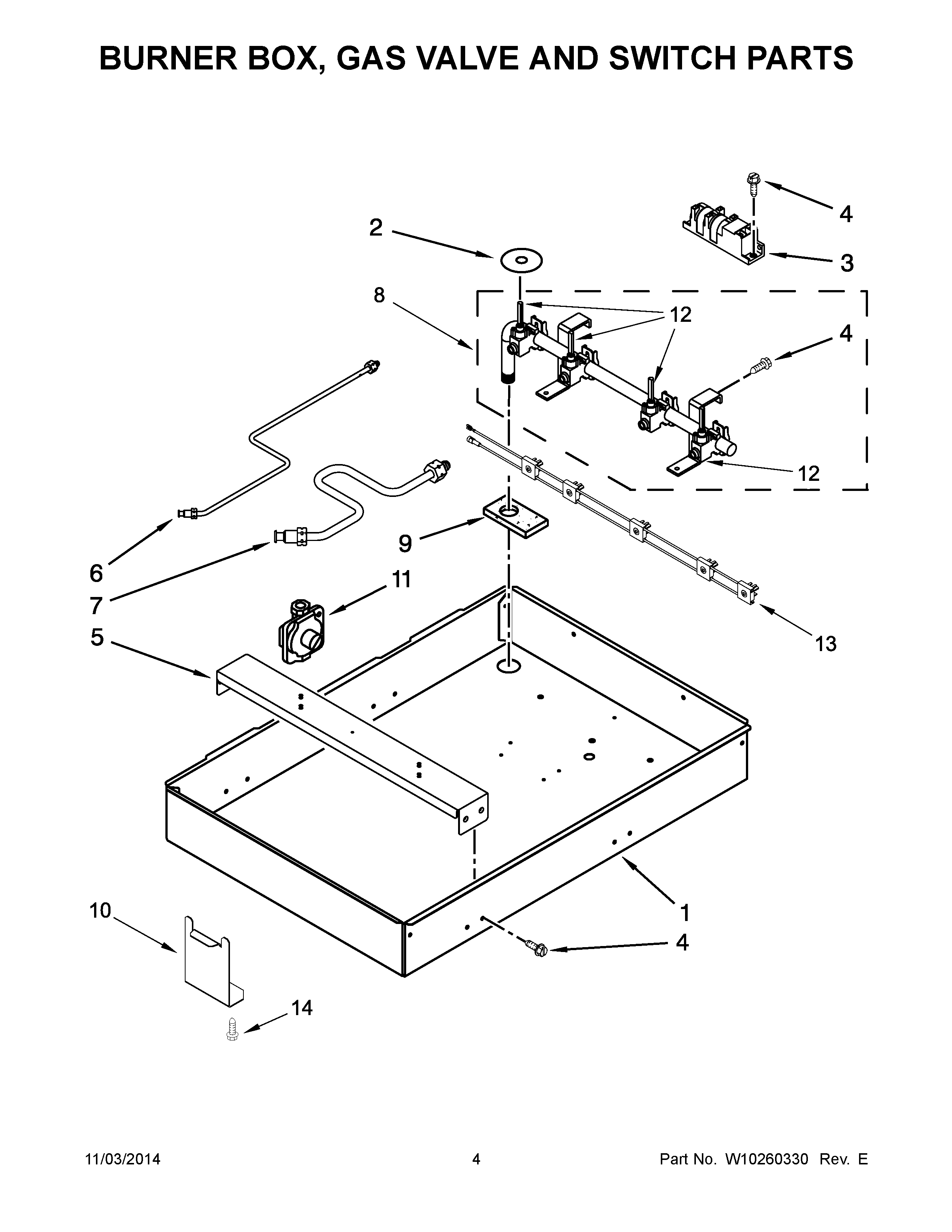

JGC1430ADB14 03 – BURNER BOX, GAS VALVE AND SWITCH PARTS

JGC1430ADB14 03 – BURNER BOX, GAS VALVE AND SWITCH PARTS

Written by

in

JGC1430ADB14 03 – BURNER BOX, GAS VALVE AND SWITCH PARTS

Products

PositionProduct
NIMAY 7509P173-60
1MAY W10176503
2Seal, Valve Shaft
3MODULE, SPARK
4MAY 7101P426- 60
5MAY 3801F848-51
6MAY 7506P375-60
7MAY 7506P374-60
8MAY 7513P516-60
9MAY 7208P024-60
10MAY 3801F935-51
11MAY 7510P093-60
12AMAY 7502P559-60
12BMAY 7502P560-60
12MAY 7502P558-60
13MAY 7450P097-60
14SCREW No.10 X 2
