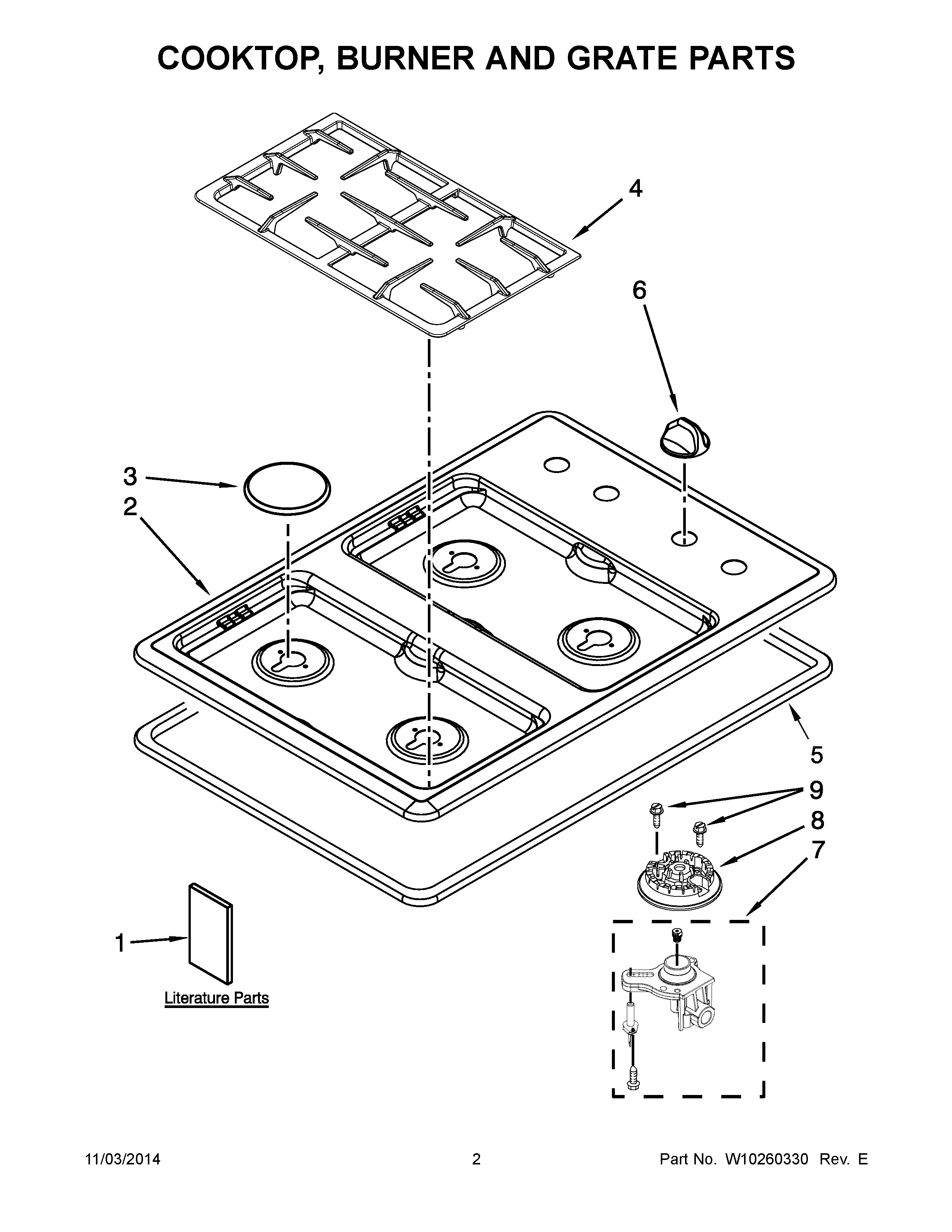

JGC1430ADS14 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	MAY 5112P675-60
NI	Harness, Cooktop
NI	BUSHING, SNAP
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 7402P087-60
1D	MAY 8104P828-60
1B	TIPS, SAFE COOKING (ENGLISH)
1A	MAY 8111P536-60
1	MAY 8101P736-60
1C	TIPS, SAFE COOKING (FRENCH)
2B	MAY 2001N294-55
2A	MAY 2001N296-81
2	MAY 2001N296-09
3B	CAP, BURNER (CTR)
3A	CAP, BURNER (LR & RF)
3	CAP, BURNER (LF & RR)
4	MAY 7518P435-60
5	MAY 8270P105-60
6	KNOB, CONTROL (5) (BLACK)
7C	HOLDER, ORIFICE (RF)
7B	ORIFICE HOLDER (9.5K) (RIGHT REAR)
7A	ORIFICE HOLDER (12K) (LEFT FRONT)
7	MAY 7527P006-60
8	HEAD, BURNER (6K) (LEFT REAR)
8A	HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
8B	HEAD, BURNER (17.5K) (RIGHT FRONT)
9	WP3368921 Whirlpool Screw
