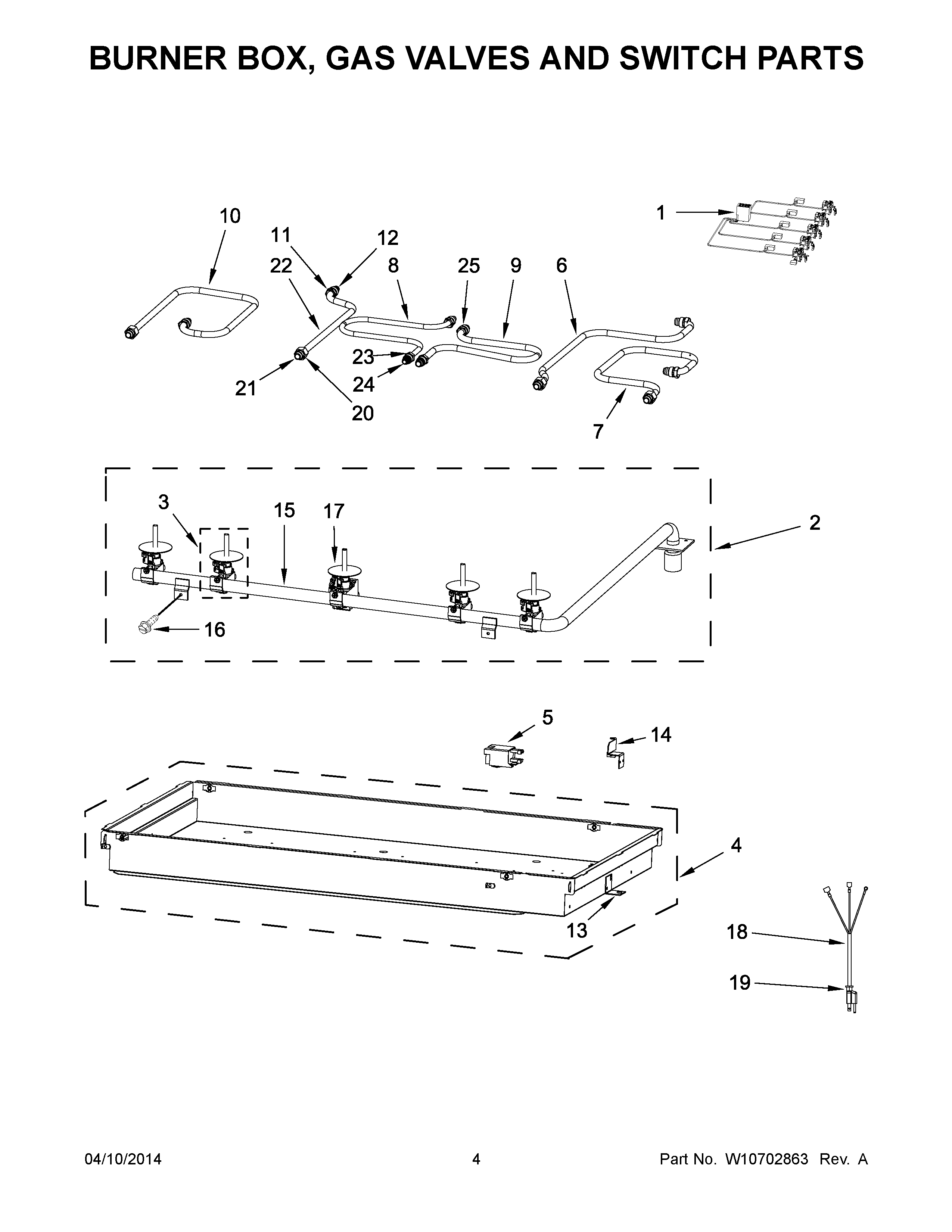

JGC1530BS0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10686629
NI	MAY W10686630
NI	MAY W10686634
NI	MAY W10691233
NI	MAY W10691448
NI	SCREW, BURNER BOX MOUNTING (10-32 X 1" PAN HEAD)
NI	SCREW, COOKTOP (6-32 X 3/8" PAN HEAD)
NI	SCREW, MANIFOLD PIPE MOUNTING (8 X 3/8" PAN HEAD)
NI	SCREW, BURNER BOX MOUNTING (8-32 X 3/8" PAN HEAD)
NI	MAY W10678586
NI	MAY W10626014
1	MAY W10691446
2	MAY W10691441
3	MAY W10691431
3	MAY W10691432
3	MAY W10691437
3	MAY W10691438
4	MAY W10691679
5	SPARK MODULE
6	MAY W10692359
7	MAY W10692360
8	MAY W10692355
9	MAY W10692356
10	MAY W10692353
11	MAY W10575399
12	MAY W10575398
13	BRACKET, MOUNTING
14	MAY W10617630
15	MAY W10617475
16	MAY W10617476
17	WASHER (SPARK SWITCH)
18	CORD, POWER
19	MAY W10618504
20	MAY 8190918
21	MAY 8190917
22	MAY W10692354
23	MAY W10692377
24	MAY W10692371
25	MAY W10692372
