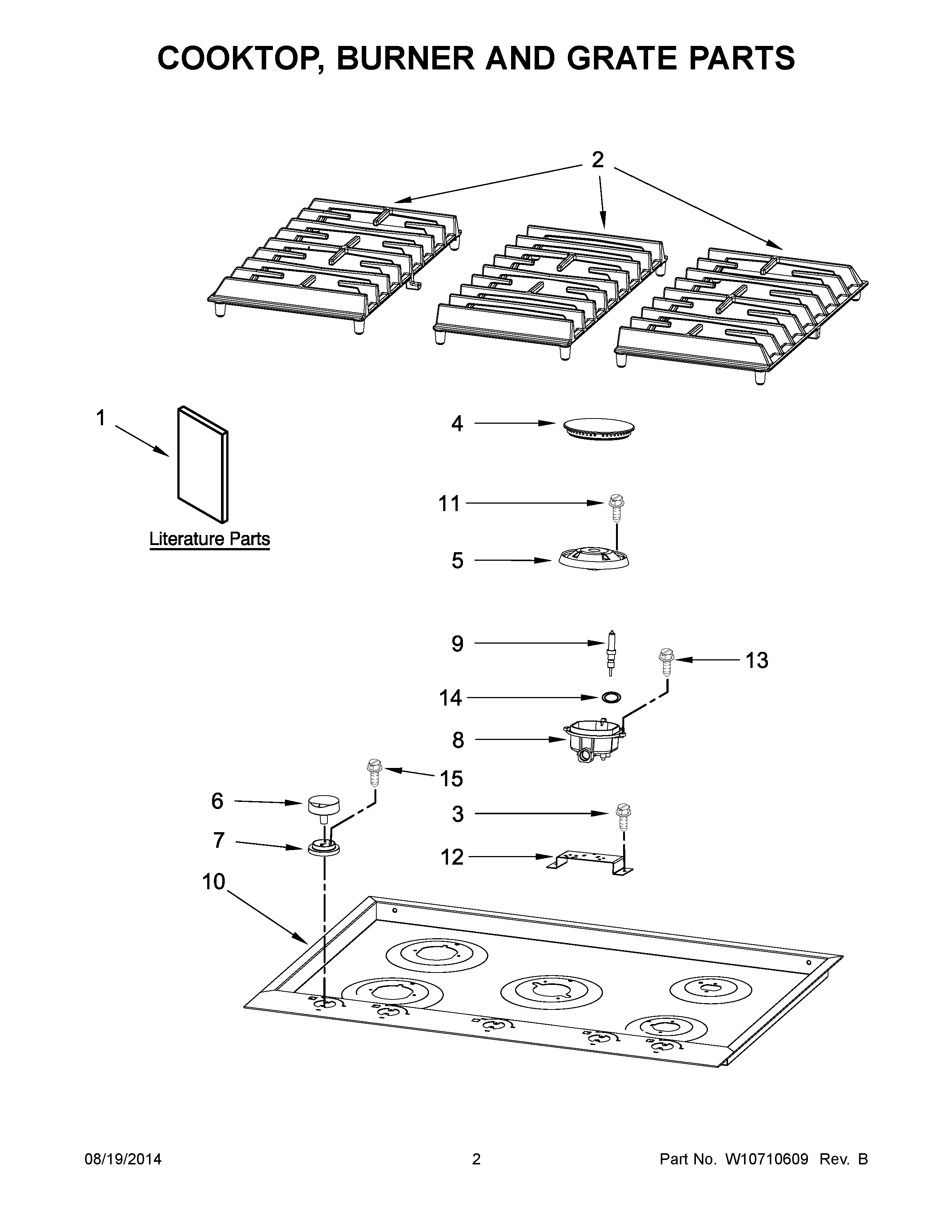

JGC1530BS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10676382
1AMAY W10676381
1BMAY W10686623
2MAY W10689383
2AMAY W10689381
3MAY W10626012
4AMAY W10691282
4BMAY W10691230
4CMAY W10691229
4MAY W10691232
5MAY W10691284
5BMAY W10691283
5CMAY W10691285
5AMAY W10691430
6MAY W10620810
7MAY W10618500
8CHOLDER, ORIFICE (155 MM) (LEFT FRONT, LEFT REAR)
8HOLDER ORIFICE (132MM) (RIGHT FRONT)
8AMAY W10691684
8BMAY W10691686
9CMAY W10692363
9DELECTRODE (250MM) (RIGHT FRONT)
9ELECTRODE (395MM) (CENTER FRONT, CENTER REAR)
9AMAY W10692369
9BMAY W10692370
10MAY W10691680
11AMAY W10626017
11MAY W10626016
12BRACKET, ORIFICE HOLDER
12AMAY W10691683
13MAY W10626015
14MAY W10571930
15MAY W10637348
