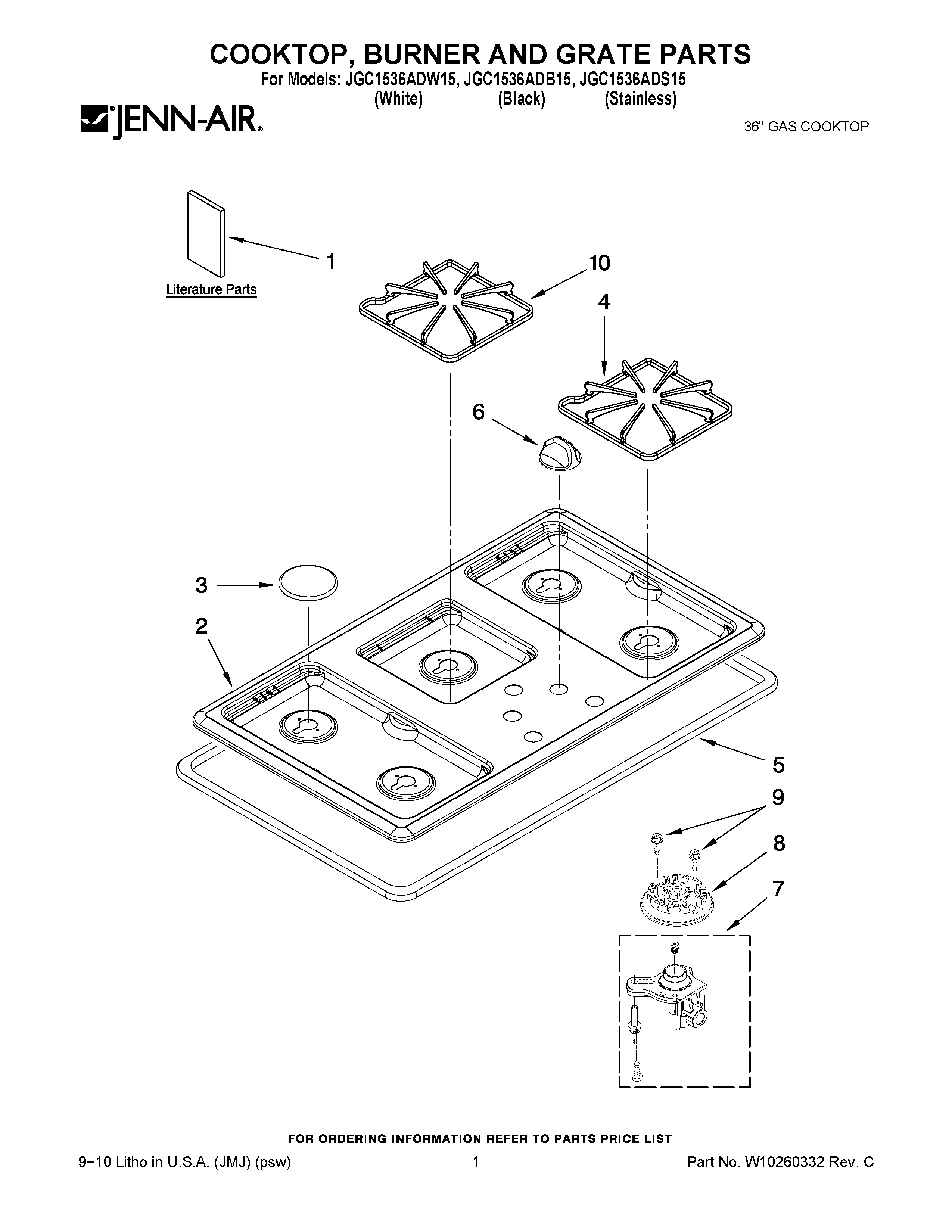

JGC1536ADB15 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10205174
1Wiring Diagram (English)
1MAY 8101P736-60
1MAY 8111P536-60
2MAY 2001N297-81
2MAY 2001N297-09
2MAY 2001N295-55
3CAP, BURNER (CTR)
3CAP, BURNER (LF & RR)
3CAP, BURNER (LR & RF)
4MAY 7518P435-60
5MAY 8270P107-60
6KNOB, CONTROL (5) (BLACK)
7HOLDER, ORIFICE (RF)
7WP7527P028-60 Whirlpool Dishwasher Orifice Holder
7WP7527P026-60 Whirlpool Orifice Holder
7WP7527P006-60 Whirlpool Orifice Holder
8HEAD, BURNER CTR.
8HEAD, BURNER (LR/RR/LF)
8HEAD, BURNER (RF)
9WP3368921 Whirlpool Screw
10MAY 7518P436-60
