JGC1536ADB15 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGC1536ADB15 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

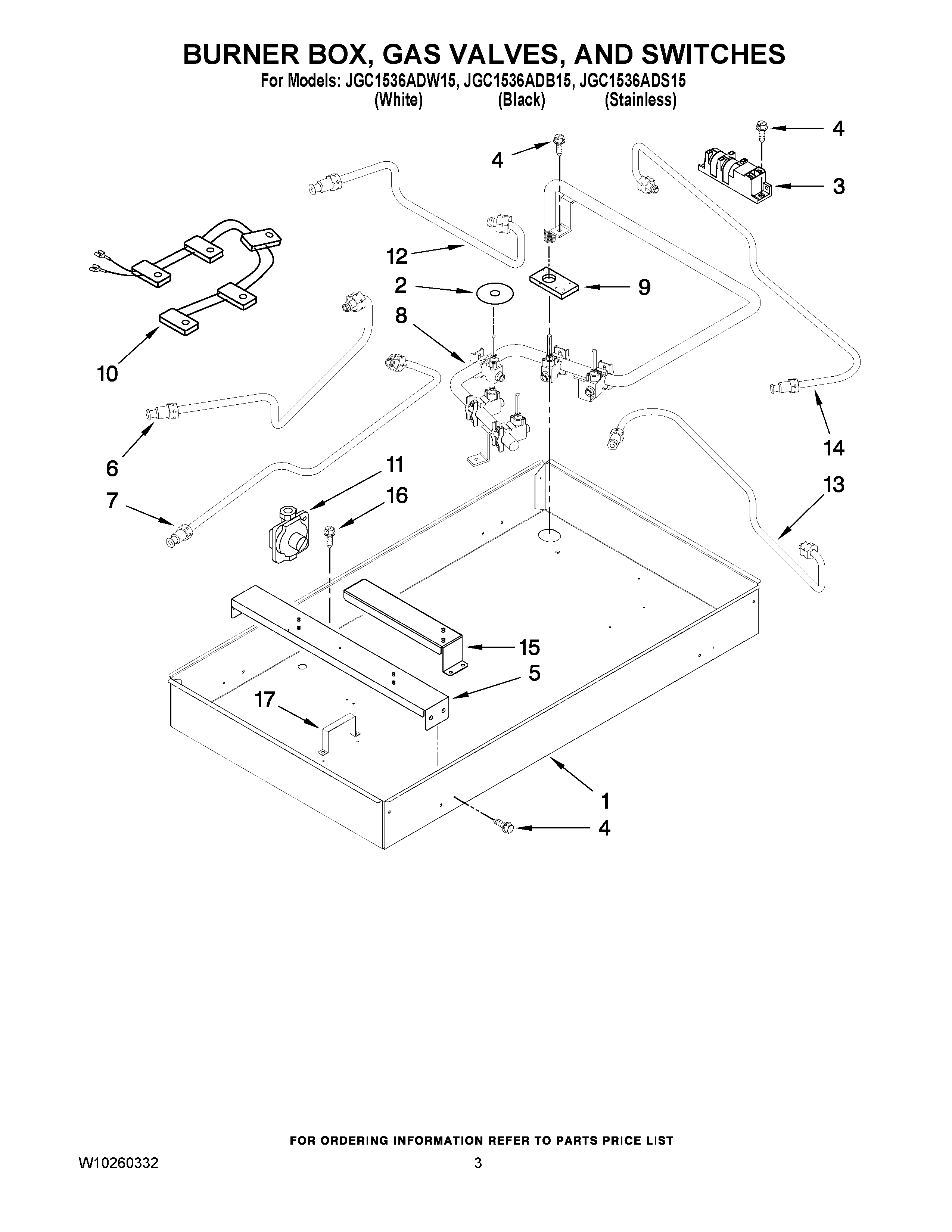

JGC1536ADB15 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1MAY W10176504
2Seal, Valve Shaft
3Spark Module
4MAY 7101P426- 60
5MAY 3801F877-51
6MAY 7506P343-60
7MAY 7506P344-60
8MAY 7513P515-60
9MAY 7208P024-60
10MAY W10184468
11MAY 7510P093-60
12MAY 7506P345-60
13MAY 7506P346-60
14MAY 7506P347-60
15MAY 3801F876-51
16Screw, Ground
17MAY 3801F925-51
