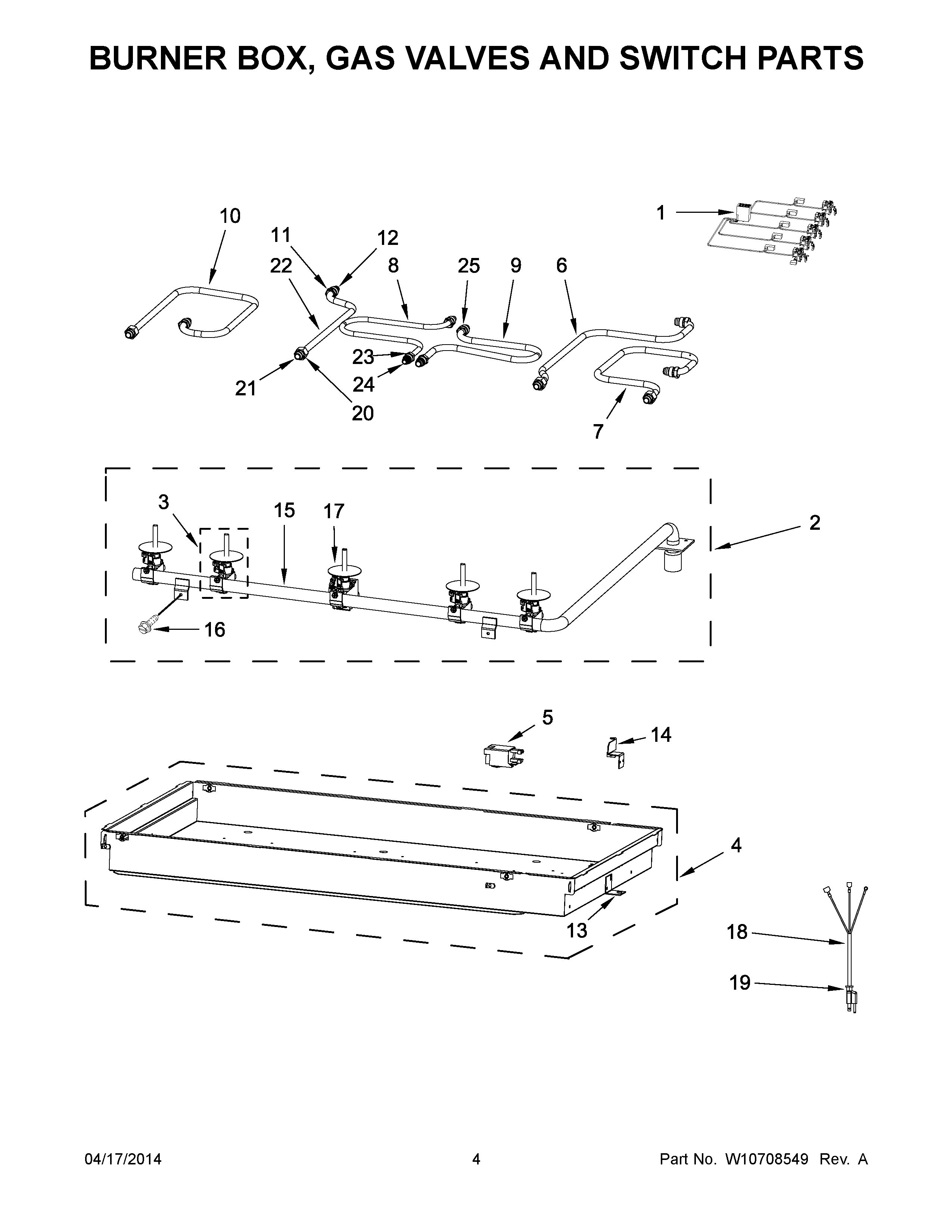

JGC1536BS0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	SCREW, BURNER BOX MOUNTING (8-32 X 3/8" PAN HEAD)
NI	SCREW, MANIFOLD PIPE MOUNTING (8 X 3/8" PAN HEAD)
NI	SCREW, COOKTOP (6-32 X 3/8" PAN HEAD)
NI	SCREW, BURNER BOX MOUNTING (10-32 X 1" PAN HEAD)
NI	MAY W10691449
NI	MAY W10626014
NI	MAY W10691233
NI	MAY W10686634
NI	MAY W10686630
NI	MAY W10686629
NI	MAY W10678586
1	MAY W10691447
2	MAY W10691439
3	MAY W10691438
3	MAY W10691437
3	MAY W10691431
4	MAY W10691454
5	SPARK MODULE
6	MAY W10691692
7	MAY W10692352
8	MAY W10691690
9	MAY W10691691
10	MAY W10691687
11	MAY W10575399
12	MAY W10575398
13	BRACKET, MOUNTING
14	MAY W10617630
15	MAY W10617475
16	MAY W10617476
17	WASHER (SPARK SWITCH)
18	CORD, POWER
19	MAY W10618504
20	MAY 8190918
21	MAY 8190917
22	MAY W10691688
23	MAY W10692377
24	MAY W10692371
25	MAY W10692372
