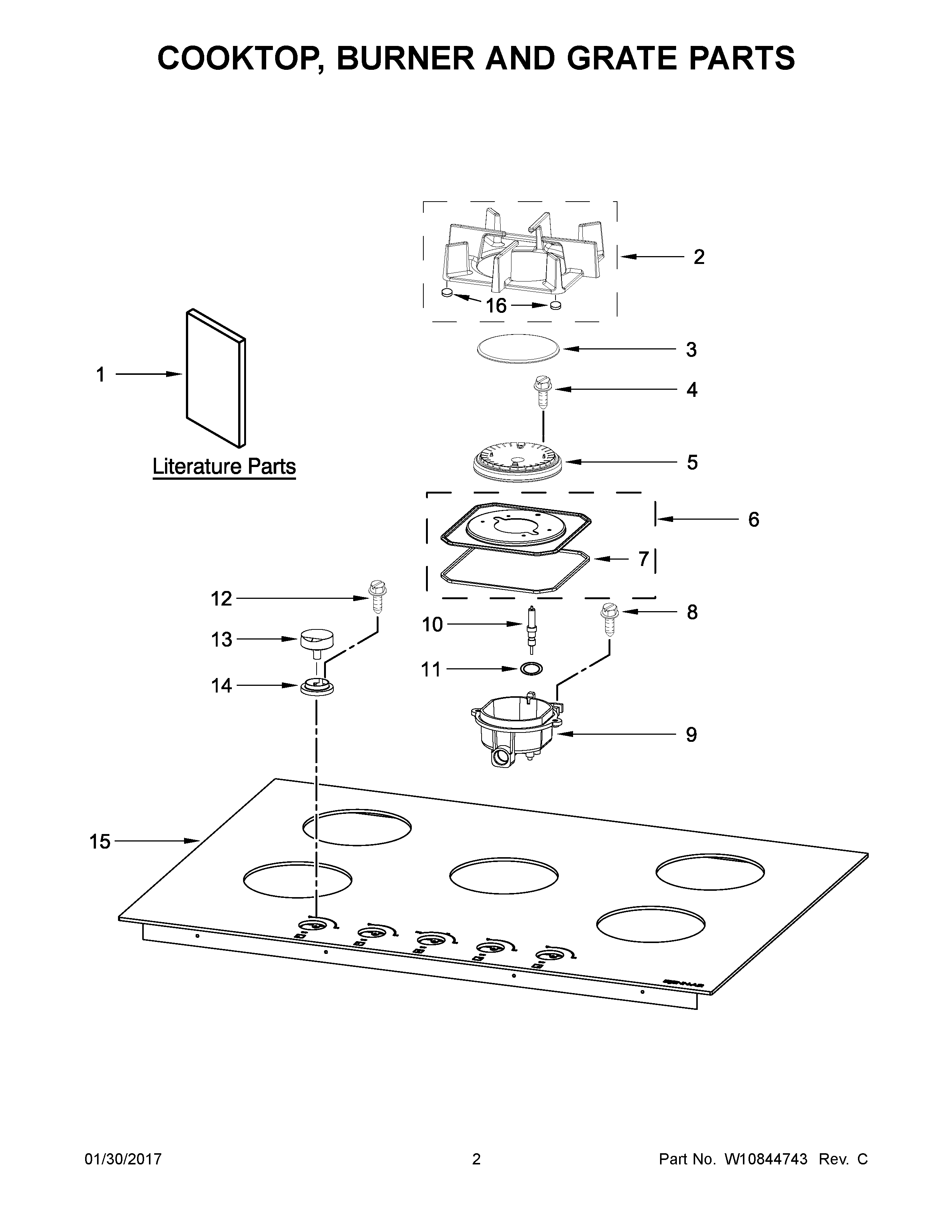

JGC2530EB00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1CTIPS, SAFE COOKING (ENGLISH)
1DTIPS, SAFE COOKING (FRENCH)
1BINSTRUCTIONS, LP CONVERSION
1AGUIDE, USE AND CARE
1INSTRUCTIONS, INSTALLATION
2AGRATE, BURNER (CENTER)
2GRATE, BURNER
3AMAY W10691229
3MAY W10691230
3CMAY W10691232
3BMAY W10691282
4MAY W10626016
4AMAY W10626017
5MAY W10691283
5CMAY W10691284
5AMAY W10691285
5BMAY W10691430
6PLATE, BURNER (KIT OF 5)
7GASKET, SILICONE
8MAY W10626015
9HOLDER ORIFICE (132MM) (RIGHT FRONT)
9BHOLDER, ORIFICE (190MM) (CENTER)
9CHOLDER, ORIFICE (155 MM) (LEFT FRONT, LEFT REAR)
9AMAY W10691684
10AELECTRODE (380MM) (CENTER)
10ELECTRODE (250MM) (RIGHT FRONT)
10BELECTRODE (500MM) (LEFT REAR)
11MAY W10571930
12MAY W10637348
13MAY W10620810
14MAY W10618500
15TOP, GLASS (INCLUDES BRACKETS)
16PAD, GRATE (KIT OF 4)
