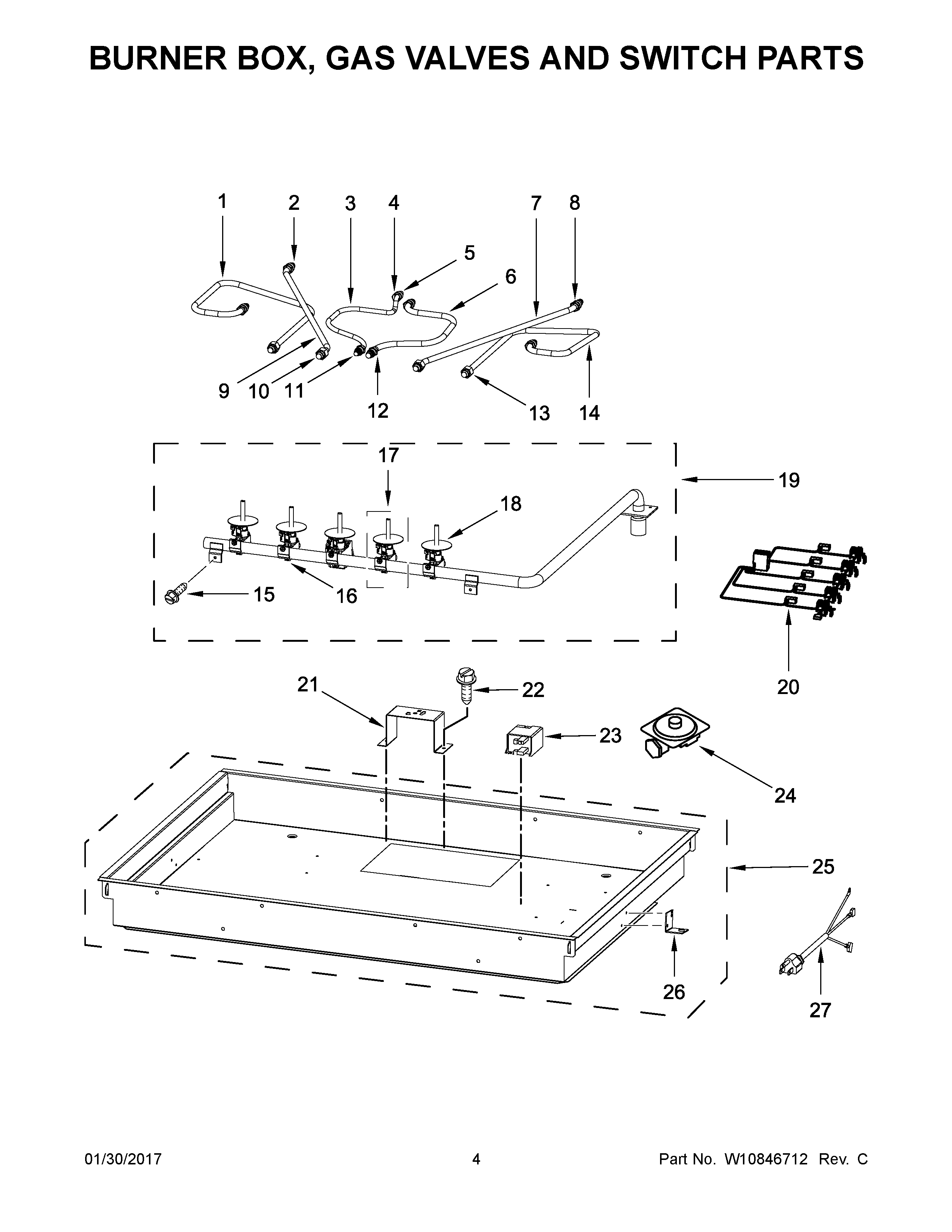

JGC2536EB00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIGASKET (COOKTOP MOUNTING)
NIHARNESS, MAIN
NIMAY W10691233
NIMAY W10686630
NIMAY W10686629
NIMAY W10618504
NISCREW, BURNER BOX MOUNTING (8-32 X 3/8" PAN HEAD)
NISCREW, MANIFOLD PIPE MOUNTING (8 X 3/8" PAN HEAD)
NIMAY W10686634
1TUBING, BURNER (LEFT FRONT)
2MAY W10575399
3TUBING, BURNER (CENTER SIMMER)
4MAY W10692377
5FERRULE, DUAL INJECTOR
6TUBING, BURNER (CENTER)
7TUBING, BURNER (RIGHT REAR)
8MAY W10575398
9TUBING, BURNER (LEFT REAR)
10MAY 8190917
11MAY W10692371
12MAY W10692372
13MAY 8190918
14TUBING, BURNER (RIGHT FRONT)
15MAY W10617476
16MAY W10617475
17BMAY W10691438
17MAY W10691432
17AMAY W10691431
17CMAY W10691437
18WASHER (SPARK SWITCH)
19ASSEMBLY, MANIFOLD
20HARNESS, SWITCH
21ABRACKET, ORIFICE HOLDER (CENTER)
21BRACKET, ORIFICE HOLDER
22MAY W10626012
23SPARK MODULE
24MAY W10569189
25ASSEMBLY, BURNER BOX
26BRACKET, MOUNTING
27CORD, POWER
