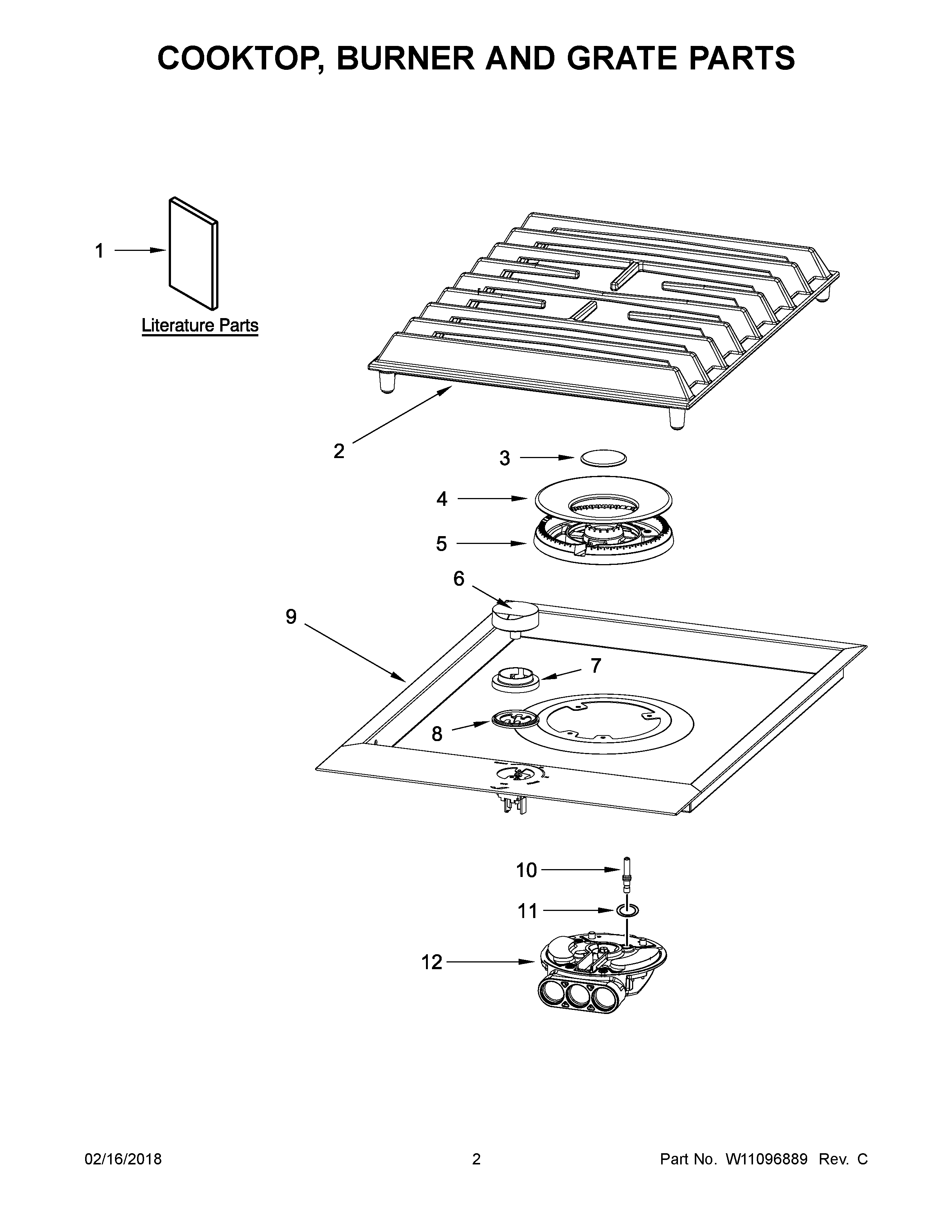

JGC3115GS0 02 – COOKTOP, BURNER AND GRATE PARTS

JGC3115GS0 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGC3115GS0 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIKIT, NATURAL GAS (HIGH ALTITUDE)
NIKIT, LP CONVERSION (HIGH ALTITUDE)
NIMAY W11027216
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
1BLP CONVERSION INSTRUCTIONS
2GRATE, BURNER
3BURNER CAP, INNER
4BURNER CAP, OUTER
5BASE, BURNER
6KNOB
7MAY W10618500
8BEZEL, ILLUMINATOR
9COOKTOP, BURNER
10ELECTRODE
11MAY W10571930
12HOLDER, ORIFICE (WOK)
