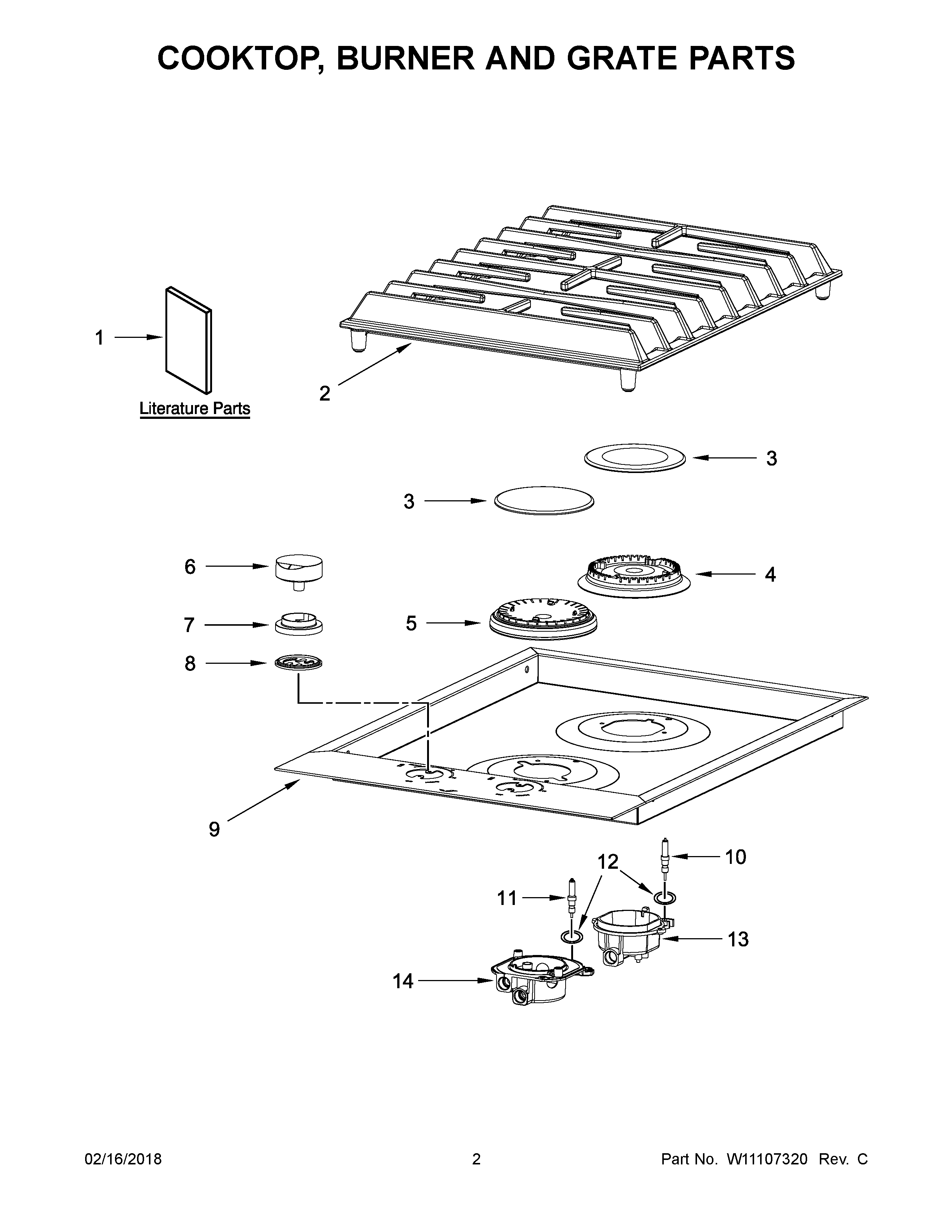

JGC3215GS0 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIKIT, NATURAL GAS (HIGH ALTITUDE)
NIKIT, LP CONVERSION (HIGH ALTITUDE)
NIMAY W11027216
1BLP CONVERSION INSTRUCTIONS
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2GRATE, BURNER
3AMAY W10691282
3MAY W10691232
4BASE, BURNER (LARGE) (LEFT FRONT, LEFT REAR)
5BASE, BURNER (DUAL) (CENTER)
6KNOB
7MAY W10618500
8BEZEL, ILLUMINATOR
9COOKTOP, MAIN
10ELECTRODE (500MM) (LEFT REAR)
11ELECTRODE (360MM)
12MAY W10571930
13HOLDER ORIFICE (170MM) (LEFT REAR, CENTER REAR, CENTER FRONT)
14HOLDER, ORIFICE (DUAL, 170MM)
