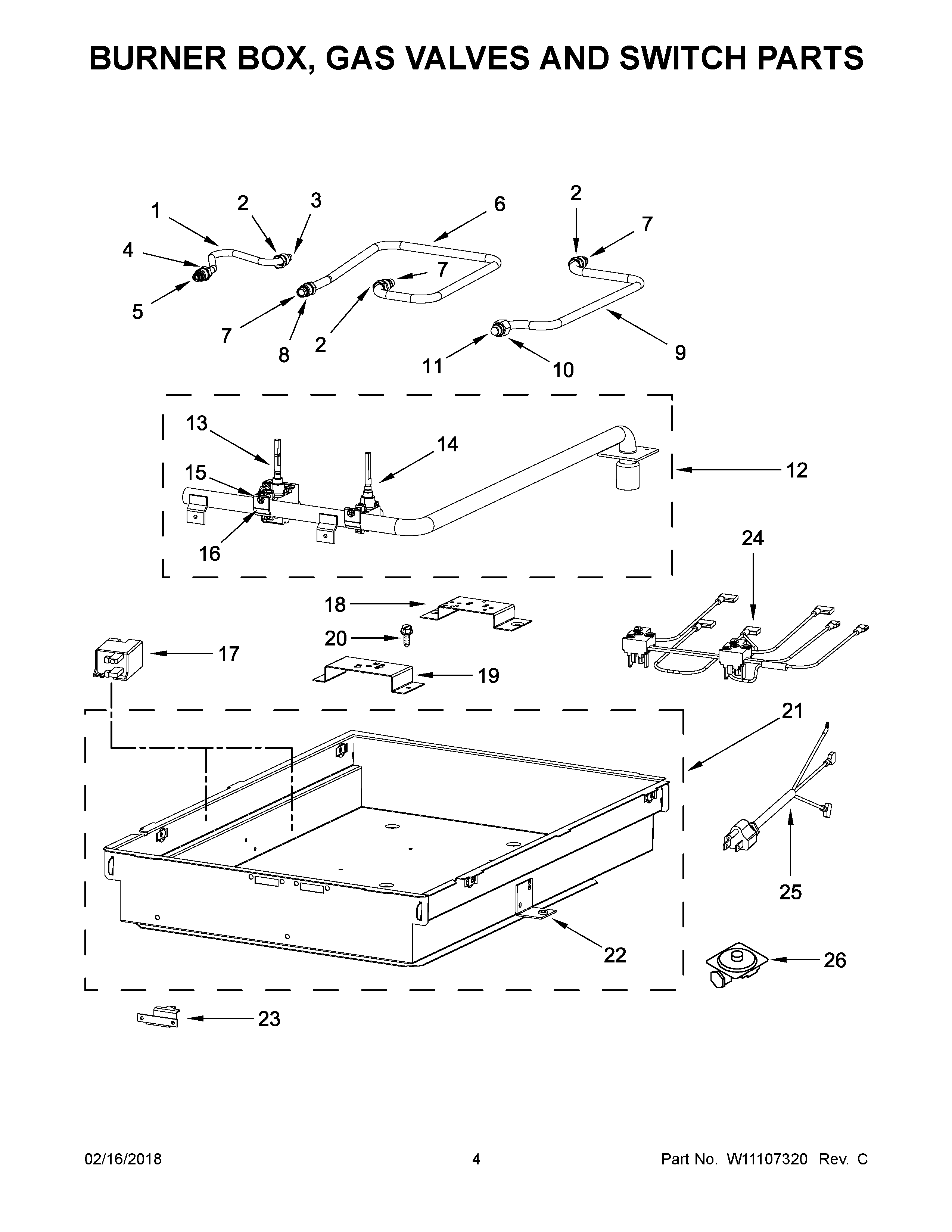

JGC3215GS0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

JGC3215GS0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

JGC3215GS0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, KIT, MODULE MOUNTING BRIDGE
1TUBING, BURNER (FRONT)
2MAY W10575398
3FERRULE, DUAL INJECTOR
4MAY W10692377
5MAY W10692371
6TUBING, BURNER (FRONT)
7MAY W10575399
8MAY W10692372
9TUBING, BURNER (REAR)
10MAY 8190918
11MAY 8190917
12ASSEMBLY, MANIFOLD
13VALVE, GAS (DUAL) (CENTER)
14VALVE, GAS (SINGLE) (LEFT FRONT, LEFT REAR)
15MAY W10617475
16MAY W10617476
17SPARK MODULE
18BRACKET, ORIFICE HOLDER (SINGLE BURNER) (LEFT FRONT, LEFT REAR, RIGHT FRONT, RIGHT REAR)
19BRACKET, ORIFICE HOLDER (DUAL BURNER) (CENTER)
20MAY W10626012
21ASSEMBLY, BURNER BOX
22BRACKET, MOUNTING
23BRACKET, CONTROL PANEL
24HARNESS, SWITCH AND LIGHT
25CORD, POWER
26MAY W10569189
