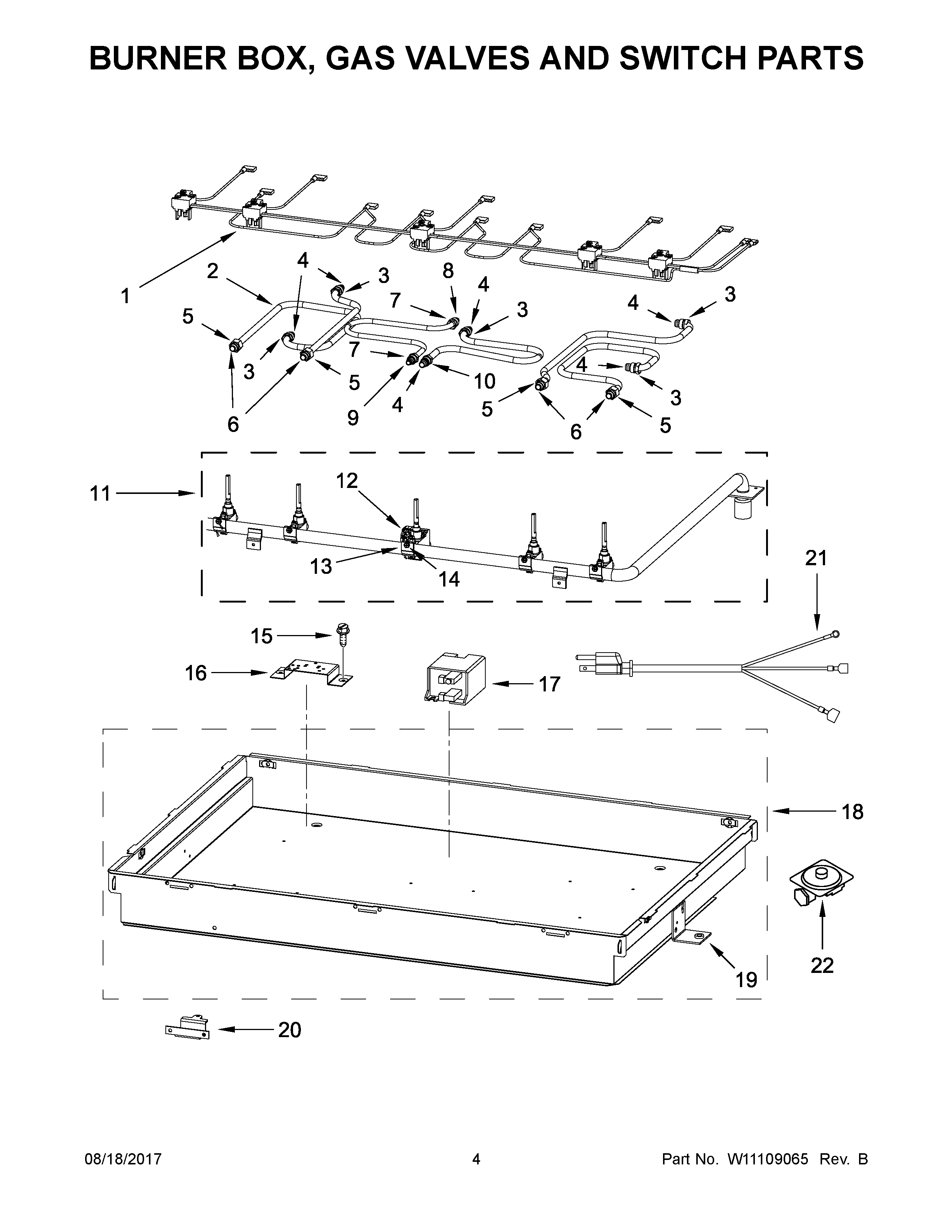

JGC3530GS0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NIACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NIACCESSORY PARTS, CLEANER, STAINLESS STEEL
NIACCESSORIES, CLEANER, GAS GRATE & DRIP PAN
1HARNESS, SWITCH AND LIGHT
2ATUBING, BURNER (LEFT REAR)
2TUBING, BURNER (LEFT FRONT)
2BTUBING, BURNER (CENTER)
2CTUBING, BURNER (1/4" CENTER SIMMER)
2DTUBING, BURNER (RIGHT FRONT)
2ETUBING, BURNER (RIGHT REAR)
3MAY W10575398
4MAY W10575399
5MAY 8190918
6MAY 8190917
7MAY W10692377
8FERRULE, DUAL INJECTOR
9MAY W10692371
10MAY W10692372
11ASSEMBLY, MANIFOLD
12CVALVE, GAS (SINGLE) (RIGHT REAR)
12BVALVE, GAS (SINGLE) (RIGHT FRONT)
12AVALVE, GAS (DUAL) (CENTER)
12VALVE, GAS (SINGLE) (LEFT FRONT, LEFT REAR)
13MAY W10617475
14MAY W10617476
15MAY W10626012
16ABRACKET, ORIFICE HOLDER (DUAL BURNER) (CENTER)
16BRACKET, ORIFICE HOLDER (SINGLE BURNER) (LEFT FRONT, LEFT REAR, RIGHT FRONT, RIGHT REAR)
17SPARK MODULE
18ASSEMBLY, BURNER BOX
19BRACKET, MOUNTING
20BRACKET, CONTROL PANEL
21CORD, POWER
22MAY W10569189
