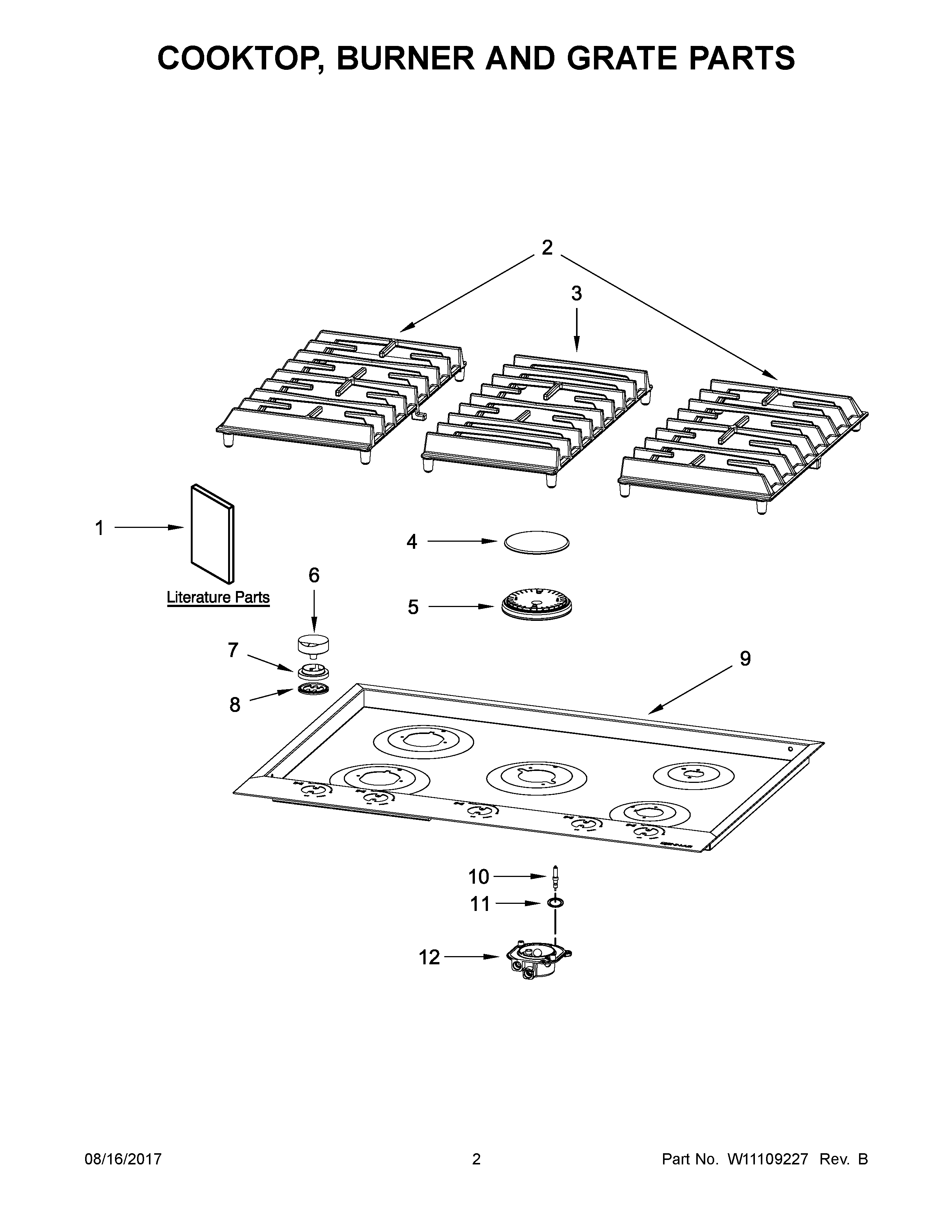

JGC3536GS0 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10686634
1BLP CONVERSION INSTRUCTIONS
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2GRATE, BURNER (SIDE)
3GRATE, BURNER (CENTER)
4CMAY W10691233
4AMAY W10691282
4MAY W10691232
4BMAY W10691229
5BBASE, BURNER (SMALL) (RIGHT REAR)
5ABASE, BURNER (DUAL) (CENTER)
5BASE, BURNER (LARGE) (LEFT FRONT, LEFT REAR)
6KNOB
7MAY W10618500
8BEZEL, ILLUMINATOR
9COOKTOP, MAIN
10BELECTRODE (360MM) (CENTER)
10ELECTRODE (360MM) (LEFT FRONT)
10DELECTRODE (450MM) (LEFT REAR)
10CELECTRODE (250MM) (RIGHT FRONT)
10AELECTRODE (500MM) (LEFT REAR)
11MAY W10571930
12HOLDER, ORIFICE (155 MM) (LEFT FRONT, LEFT REAR)
12BHOLDER, ORIFICE (DUAL, 195MM) (CENTER)
12AHOLDER ORIFICE (170MM) (LEFT REAR, CENTER REAR, CENTER FRONT)
12CMAY W10691684
