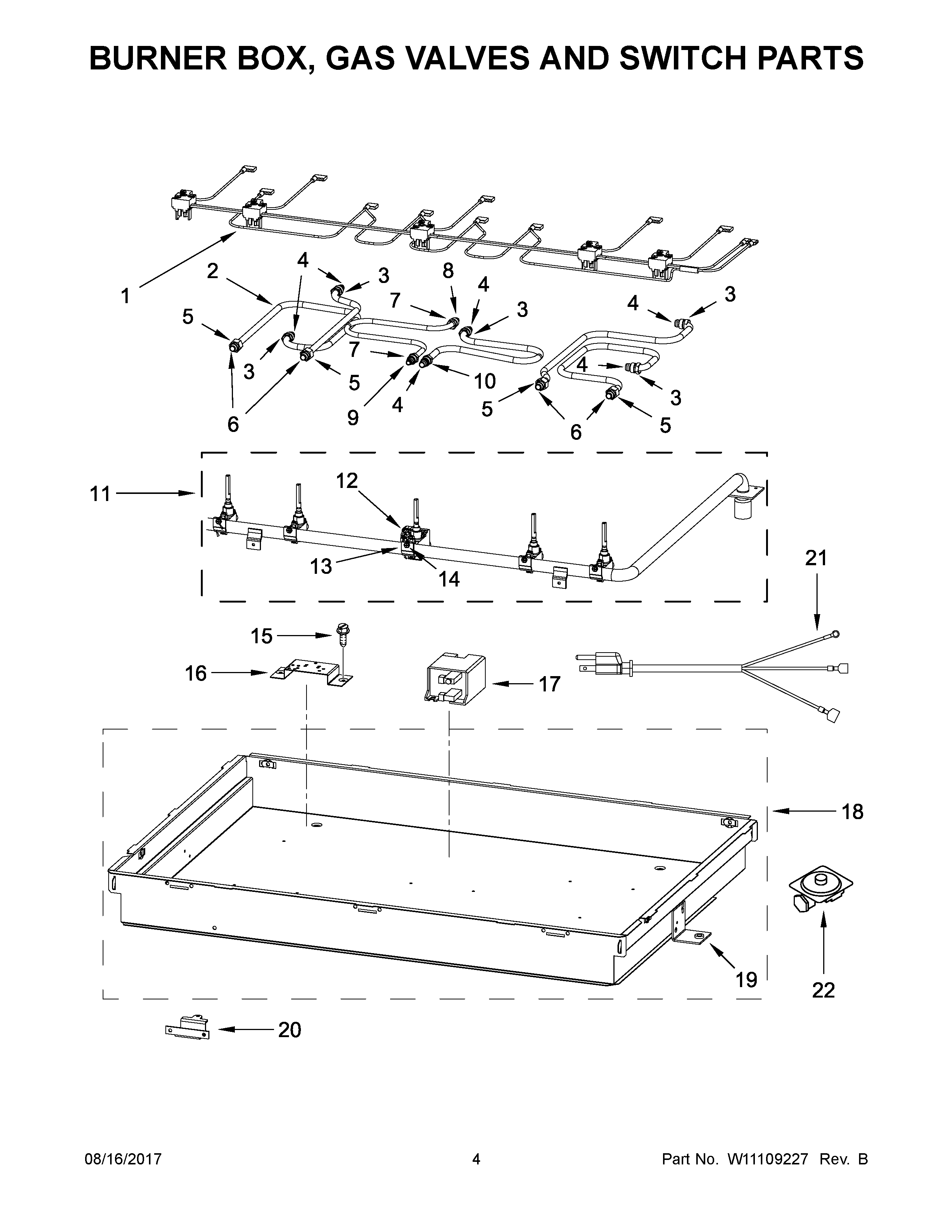

JGC3536GS0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	ACCESSORIES, CLEANER, GAS GRATE & DRIP PAN
1	HARNESS, SWITCH AND LIGHT
2D	TUBING, BURNER (RIGHT FRONT)
2B	TUBING, BURNER (CENTER LEFT)
2A	TUBING, BURNER (LEFT REAR)
2	TUBING, BURNER (LEFT FRONT)
2E	TUBING, BURNER (RIGHT REAR)
2C	TUBING, BURNER (CENTER RIGHT)
3	MAY W10575398
4	MAY W10575399
5	MAY 8190918
6	MAY 8190917
7	MAY W10692377
8	FERRULE, DUAL INJECTOR
9	MAY W10692371
10	MAY W10692372
11	ASSEMBLY, MANIFOLD
12A	VALVE, GAS (DUAL) (CENTER)
12B	VALVE, GAS (SINGLE) (RIGHT REAR)
12	VALVE, GAS (SINGLE) (LEFT FRONT, LEFT REAR)
13	MAY W10617475
14	MAY W10617476
15	MAY W10626012
16	BRACKET, ORIFICE HOLDER (SINGLE BURNER) (LEFT FRONT, LEFT REAR, RIGHT FRONT, RIGHT REAR)
16A	BRACKET, ORIFICE HOLDER (DUAL BURNER) (CENTER)
17	SPARK MODULE
18	ASSEMBLY, BURNER BOX
19	BRACKET, MOUNTING
20	BRACKET, CONTROL PANEL
21	CORD, POWER
22	MAY W10569189
