JGC6430ADB 01 – BODY

JGC6430ADB 01 – BODY

Written by

in

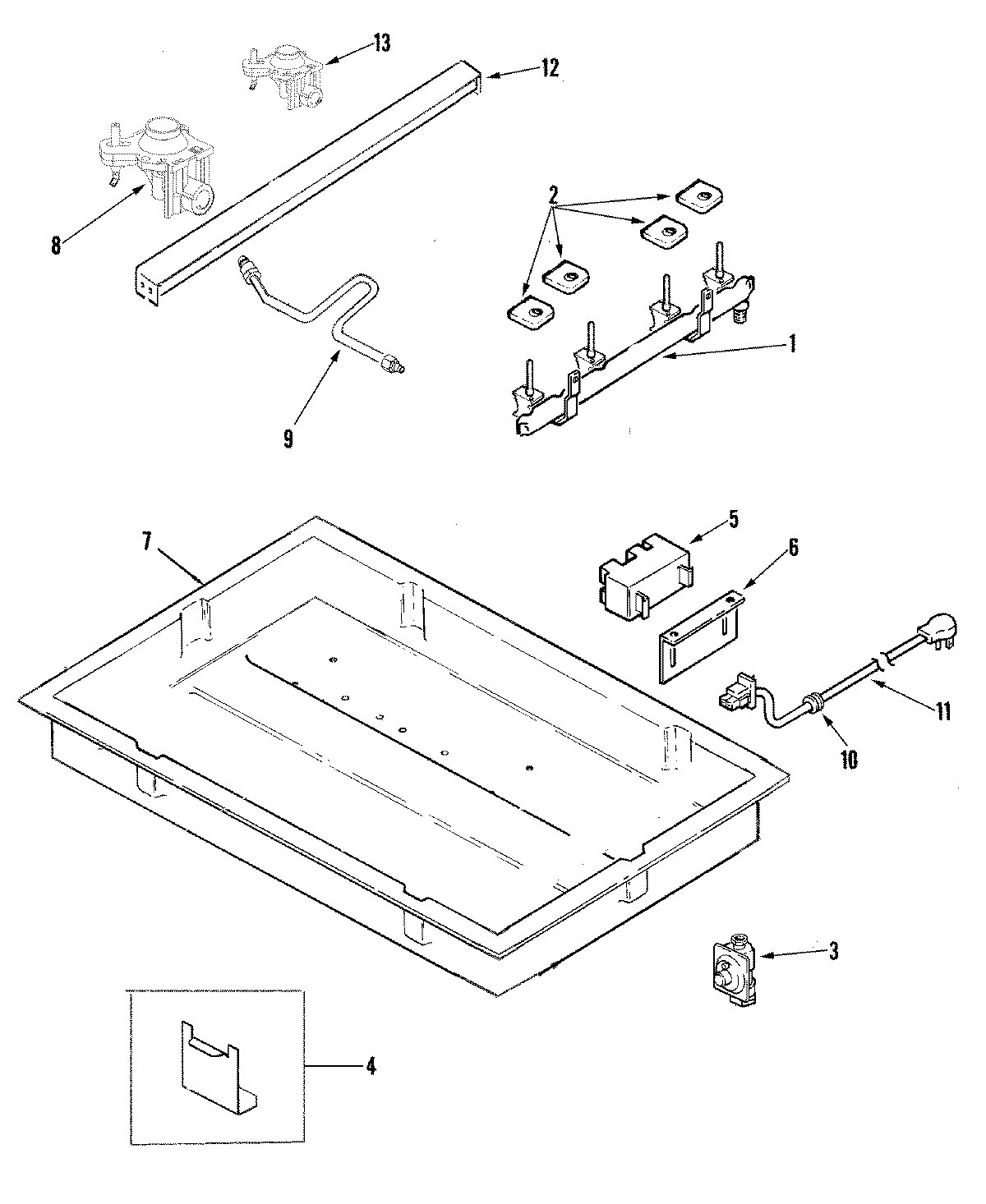

JGC6430ADB 01 – BODY

Products

PositionProduct
1MAY 74001380
1MAY 74007690
1MAY 74009417
2WP74007696 Whirlpool Switch
3W11170853 Whirlpool Regulator Assembly
4WP3801F935-51 Whirlpool Mounting Bracket
58215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
6MAY 74007795
6MAY 7101P059-60
7MAY 74007772
7MAY 74009422
7MAY 12400021
8WP74007691 Whirlpool Holder
8WP7509P103-60 Whirlpool Conversion Kit
8WP74007692 Whirlpool Holder
9MAY 74007694
9MAY 74007695
10BUSHING, SNAP
11SCREW, GROUND (GRN)
11MAY 74007689
12MAY 7118P018-60
12MAY 74007787
12SCREW No.10 X 2
12MAY 74009250
13WP8523793 Whirlpool Oven Surface Igniter
13WP7527P006-60 Whirlpool Orifice Holder
