JGC6430ADW 03 – TOP ASSEMBLY

JGC6430ADW 03 – TOP ASSEMBLY

Written by

in

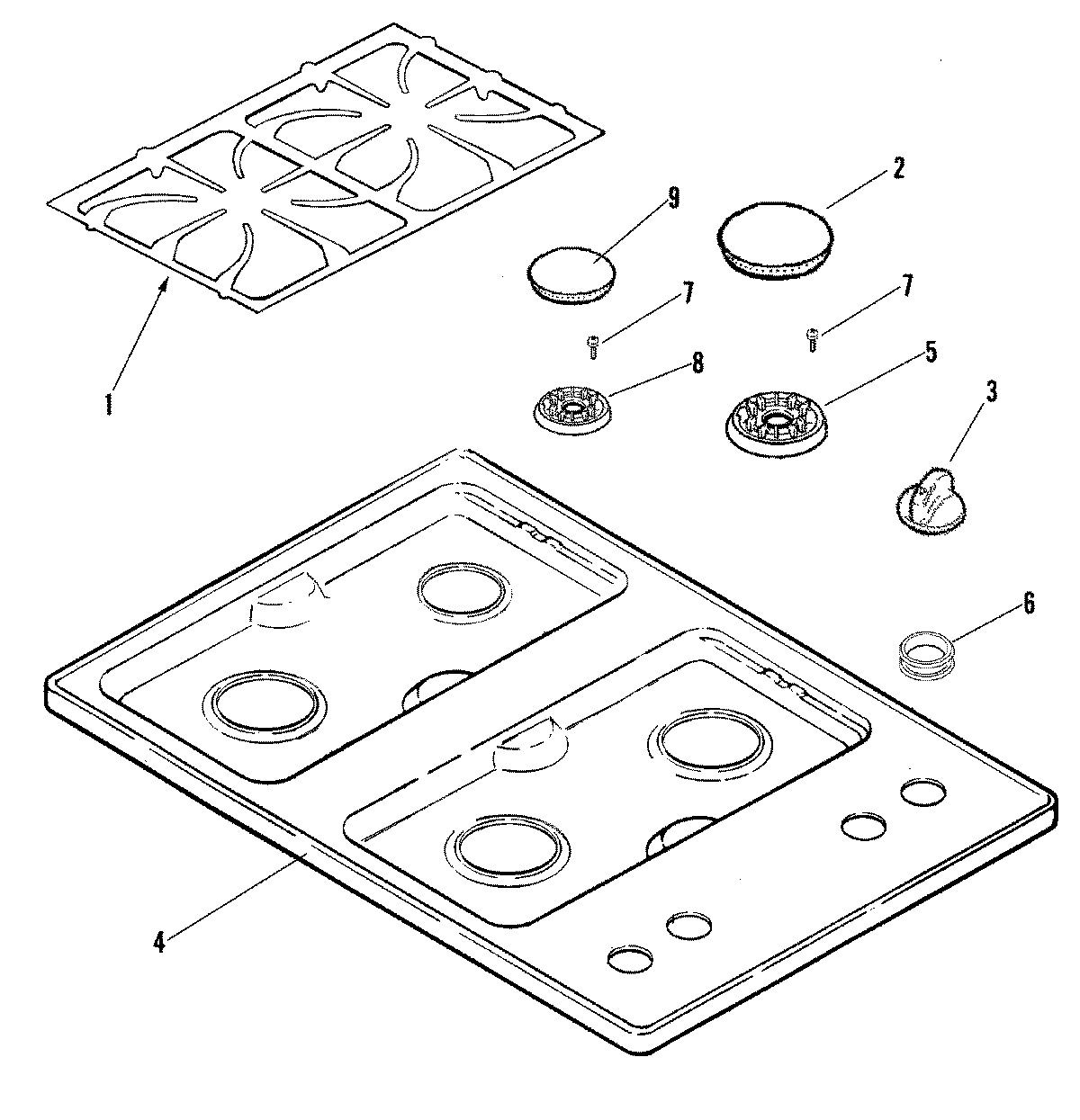

JGC6430ADW 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74007790
2WP74007752 Whirlpool Burner Cap (Medium Gray)
3WP74011276 Whirlpool Knob Burner
4MAY 74007825
5WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
6WP74007705 Whirlpool Grommet
7WP3368921 Whirlpool Screw
8WPW10406243 Whirlpool Burner Head Auxiliary 6K
9CAP, BURNER (SMR-GRY)
