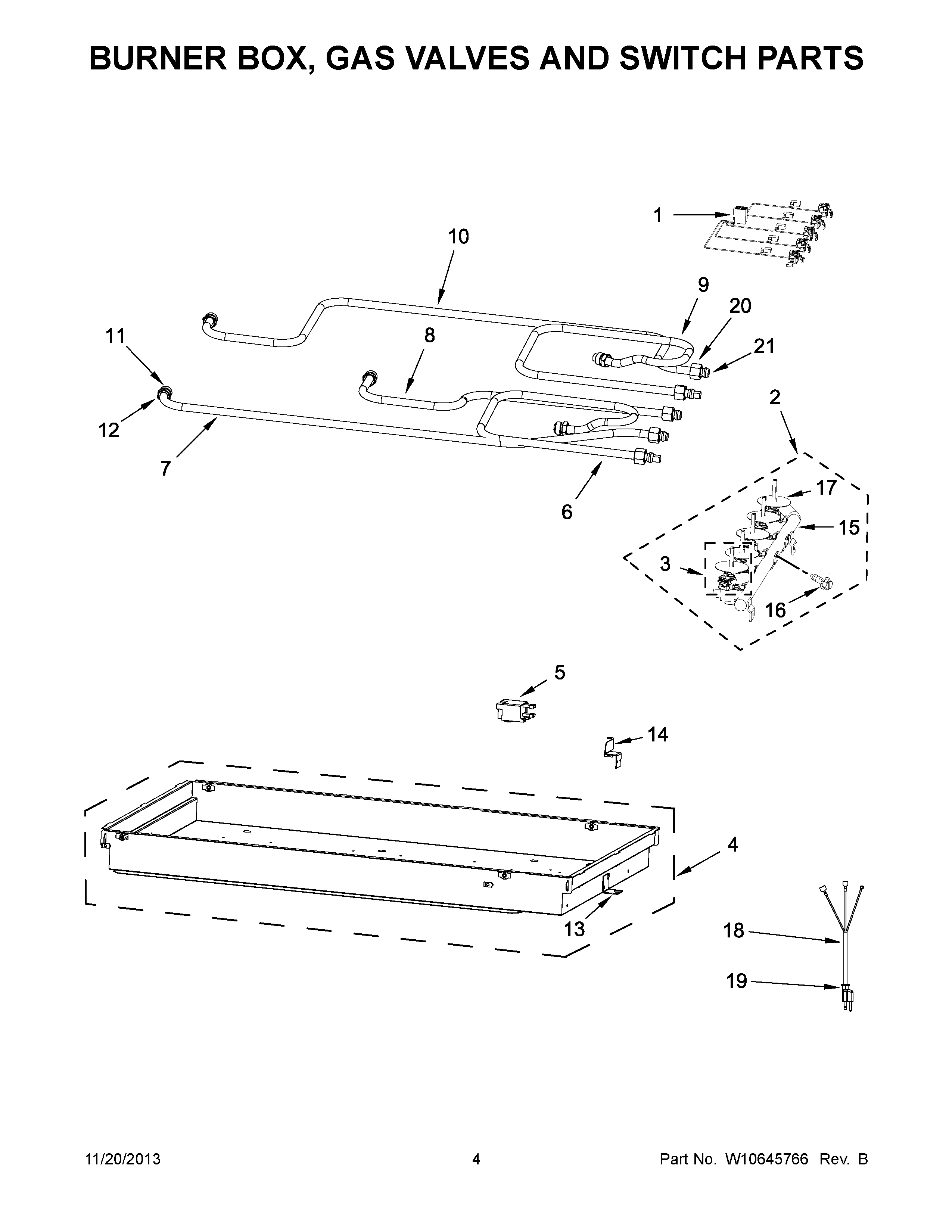

JGC7530BP0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

JGC7530BP0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

JGC7530BP0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10623930
NISCREW, BURNER BOX MOUNTING (8-32 X 3/8" PAN HEAD)
NISCREW, MANIFOLD PIPE MOUNTING (8 X 3/8" PAN HEAD)
NISCREW, COOKTOP (6-32 X 3/8" PAN HEAD)
NISCREW, BURNER BOX MOUNTING (10-32 X 1" PAN HEAD)
NIMAY W10593221
NIMAY W10593220
NIMAY W10590568
NIMAY W10626014
1MAY W10623929
2MAY W10623919
3MAY W10617471
3MAY W10617473
3MAY W10617472
4MAY W10623922
5SPARK MODULE
6MAY W10620812
7MAY W10620813
8MAY W10620814
9MAY W10620815
10MAY W10620816
11MAY W10575399
12MAY W10575398
13BRACKET, MOUNTING
14MAY W10617630
15MAY W10617475
16MAY W10617476
17WASHER (SPARK SWITCH)
18CORD, POWER
19MAY W10618504
20MAY 8190918
21MAY 8190917
