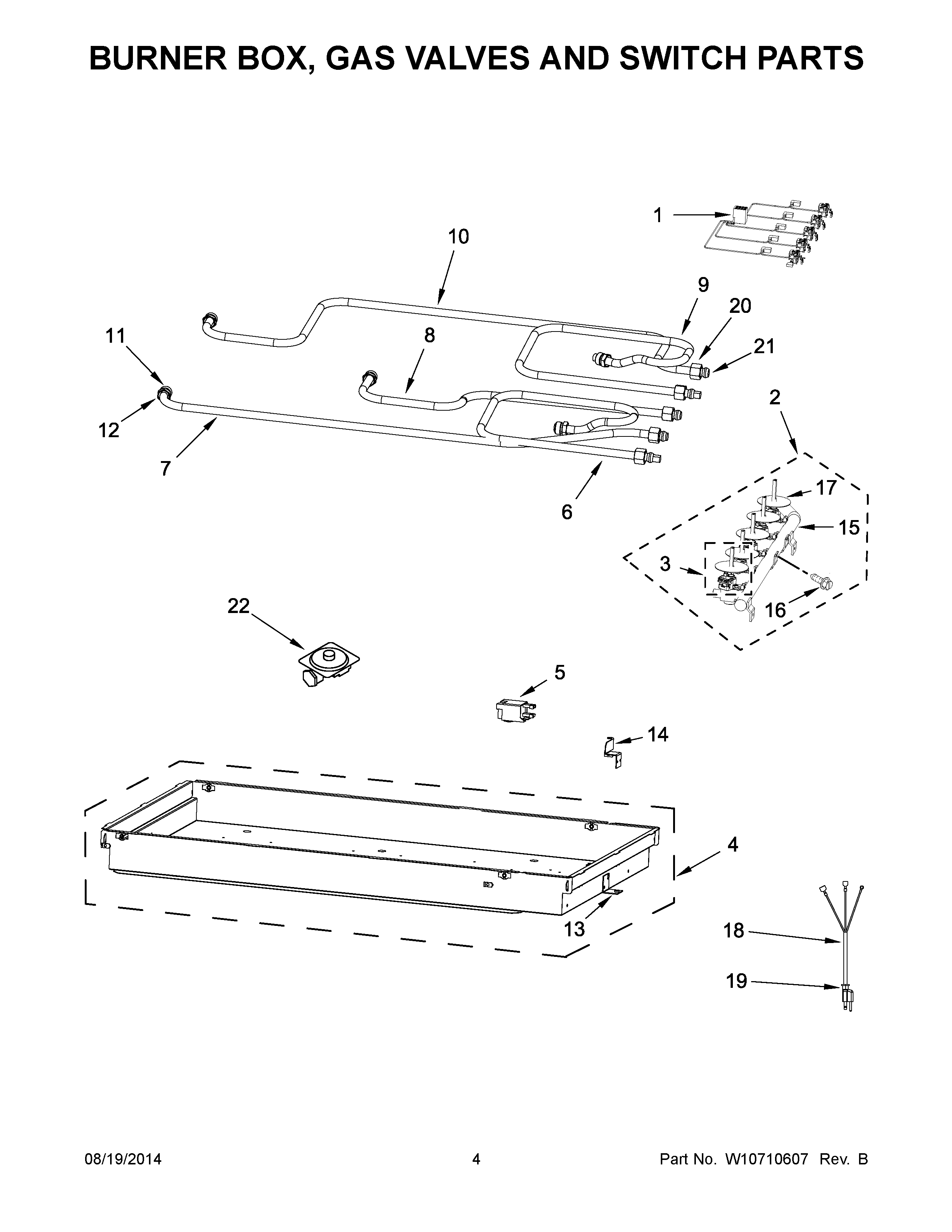

JGC7530BP00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10623930
NI	SCREW, BURNER BOX MOUNTING (8-32 X 3/8" PAN HEAD)
NI	SCREW, MANIFOLD PIPE MOUNTING (8 X 3/8" PAN HEAD)
NI	SCREW, COOKTOP (6-32 X 3/8" PAN HEAD)
NI	SCREW, BURNER BOX MOUNTING (10-32 X 1" PAN HEAD)
NI	MAY W10593221
NI	MAY W10593220
NI	MAY W10590568
NI	MAY W10626014
1	MAY W10623929
2	MAY W10623919
3	MAY W10617473
3A	MAY W10617471
3B	MAY W10617472
4	MAY W10623922
5	SPARK MODULE
6	MAY W10620812
7	MAY W10620813
8	MAY W10620814
9	MAY W10620815
10	MAY W10620816
11	MAY W10575399
12	MAY W10575398
13	BRACKET, MOUNTING
14	MAY W10617630
15	MAY W10617475
16	MAY W10617476
17	WASHER (SPARK SWITCH)
18	CORD, POWER
19	MAY W10618504
20	MAY 8190918
21	MAY 8190917
22	MAY W10569189
