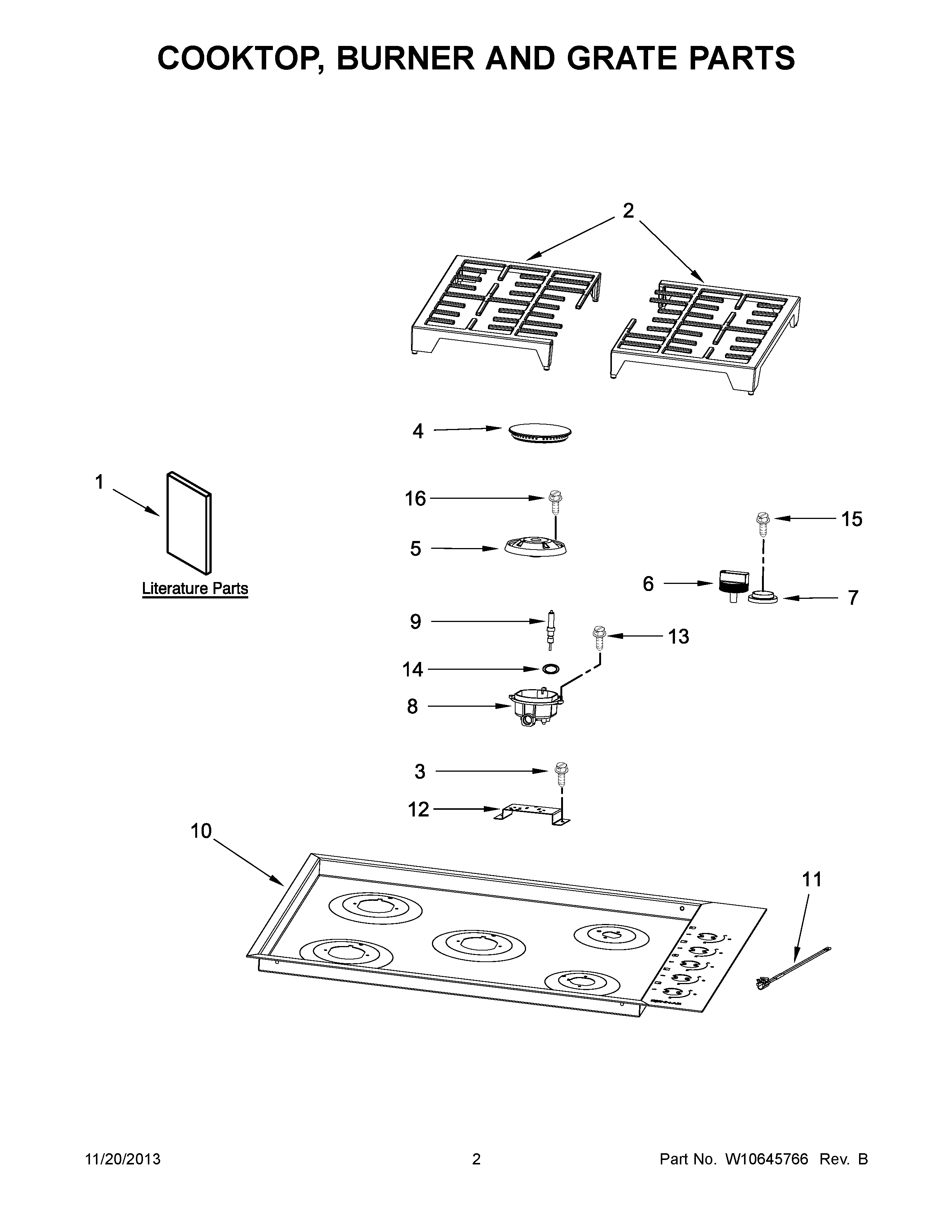

JGC7530BS0 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10588274
1	MAY W10588276
1	MAY W10620796
1	MAY W10588275
2	MAY W10623870
2	MAY W10623925
3	MAY W10626012
4	MAY W10617817
4	MAY W10617816
4	MAY W10617815
5	MAY W10617819
5	MAY W10617818
5	MAY W10617820
6	MAY W10620811
6	MAY W10620810
7	MAY W10618500
8	HOLDER, ORIFICE (155 MM) (LEFT FRONT, LEFT REAR)
8	HOLDER ORIFICE (132MM) (RIGHT FRONT)
8	MAY W10618475
8	HOLDER ORIFICE (170MM) (LEFT REAR, CENTER REAR, CENTER FRONT)
8	HOLDER ORIFICE (193MM) (LEFT FRONT)
9	MAY W10617809
9	ELECTRODE (395MM) (CENTER FRONT, CENTER REAR)
9	MAY W10623868
9	ELECTRODE (250MM) (RIGHT FRONT)
10	MAY W10618506
11	MAY W10623921
12	BRACKET, ORIFICE HOLDER
13	MAY W10626015
14	MAY W10571930
15	MAY W10637348
16	MAY W10626016
16	MAY W10626017
