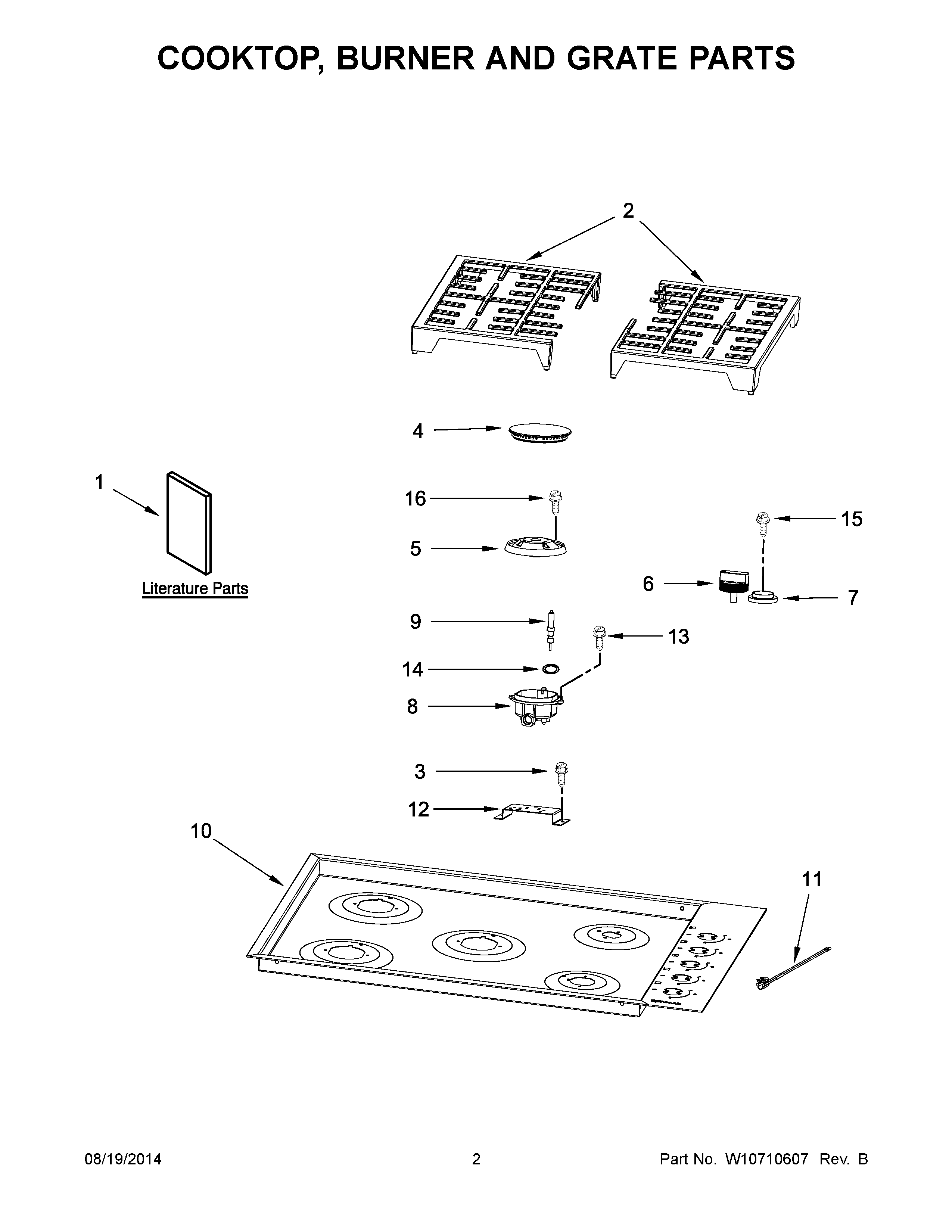

JGC7530BS00 02 – COOKTOP, BURNER AND GRATE PARTS

JGC7530BS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGC7530BS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1DTIPS, SAFE COOKING (ENGLISH)
1BMAY W10588274
1CMAY W10588276
1AMAY W10620796
1MAY W10588275
2MAY W10623870
2AMAY W10623925
3MAY W10626012
4BMAY W10617817
4AMAY W10617816
4MAY W10617815
5AMAY W10617819
5MAY W10617818
5BMAY W10617820
6MAY W10620811
6AMAY W10620810
7MAY W10618500
8DHOLDER, ORIFICE (155 MM) (LEFT FRONT, LEFT REAR)
8HOLDER ORIFICE (132MM) (RIGHT FRONT)
8AMAY W10618475
8BHOLDER ORIFICE (170MM) (LEFT REAR, CENTER REAR, CENTER FRONT)
8CHOLDER ORIFICE (193MM) (LEFT FRONT)
9AMAY W10617809
9ELECTRODE (395MM) (CENTER FRONT, CENTER REAR)
9CMAY W10623868
9BELECTRODE (250MM) (RIGHT FRONT)
10MAY W10618506
11MAY W10623921
12BRACKET, ORIFICE HOLDER
13MAY W10626015
14MAY W10571930
15MAY W10637348
16MAY W10626016
16AMAY W10626017
