JGC7536ADS 02 – TOP ASSEMBLY

JGC7536ADS 02 – TOP ASSEMBLY

Written by

in

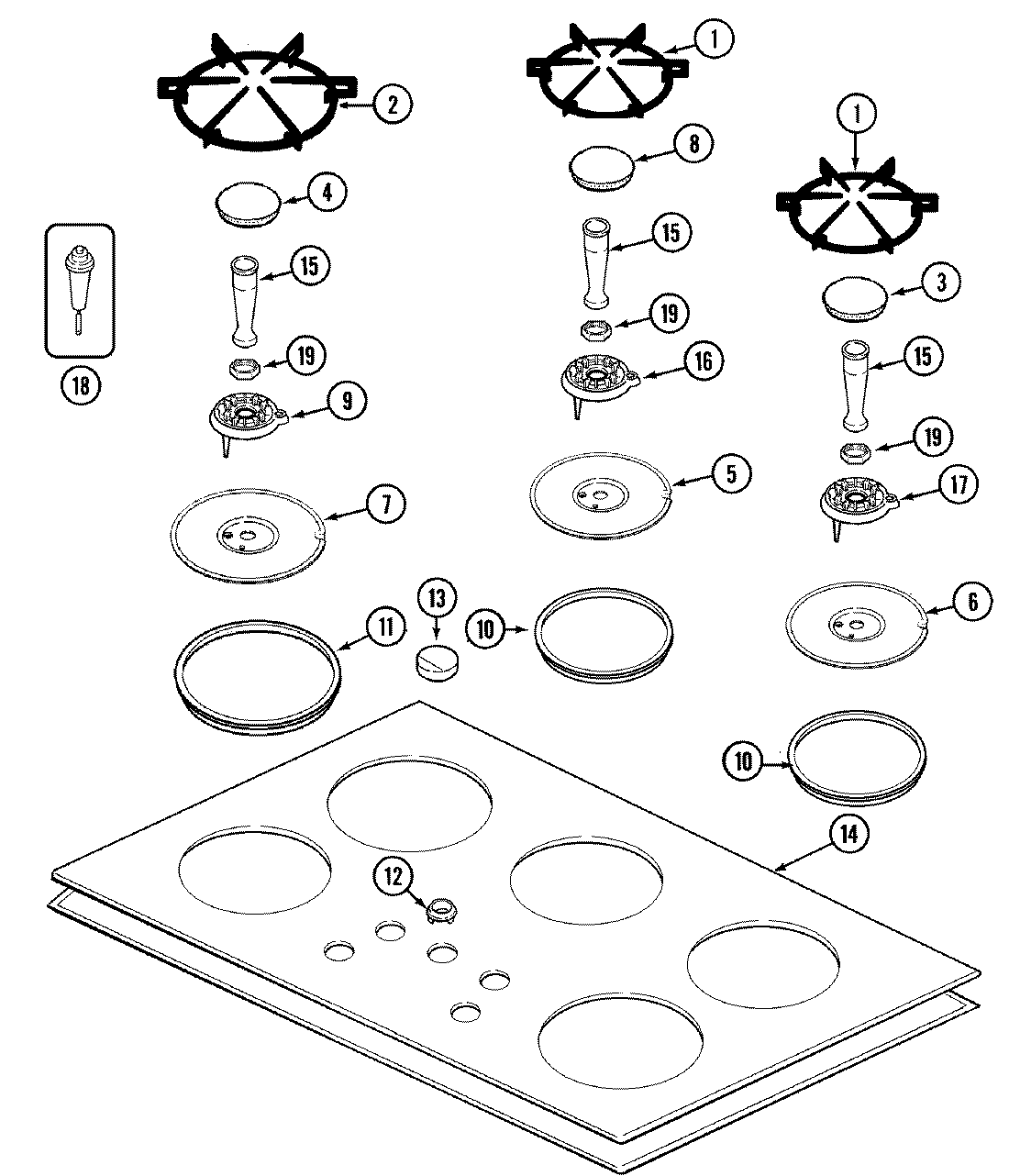

JGC7536ADS 02 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74005342
2MAY 74005343
3MAY 74005345
3CAP, BURNER (LRG-BLK)
4MAY 74005344
4WP74007196 Whirlpool Burner Cap
5MAY 74005346
6MAY 74005347
7MAY 74005348
8CAP, BURNER (SMR-MT BLK)
8MAY 74005349
9BURNER, BASE (LRG)
9MAY 74005957
10WP71001669 Whirlpool Pan Seal
11WP71001670 Whirlpool Pan Seal
12WP8008P071-60 Whirlpool Grommet
13WP71002372 Whirlpool Control Knob
14MAY 74006994
15WP7538P003-60 Whirlpool Venturi
16WP7540P028-60 Whirlpool Burner Base
17MAY 74005956
17BURNER, BASE (SM)
18WP7432P109-60 Whirlpool Oven Igniter
19WP7103P178-60 Whirlpool Nut
20MAY 74003224
21MAY 74004681
21MAY 71002741
