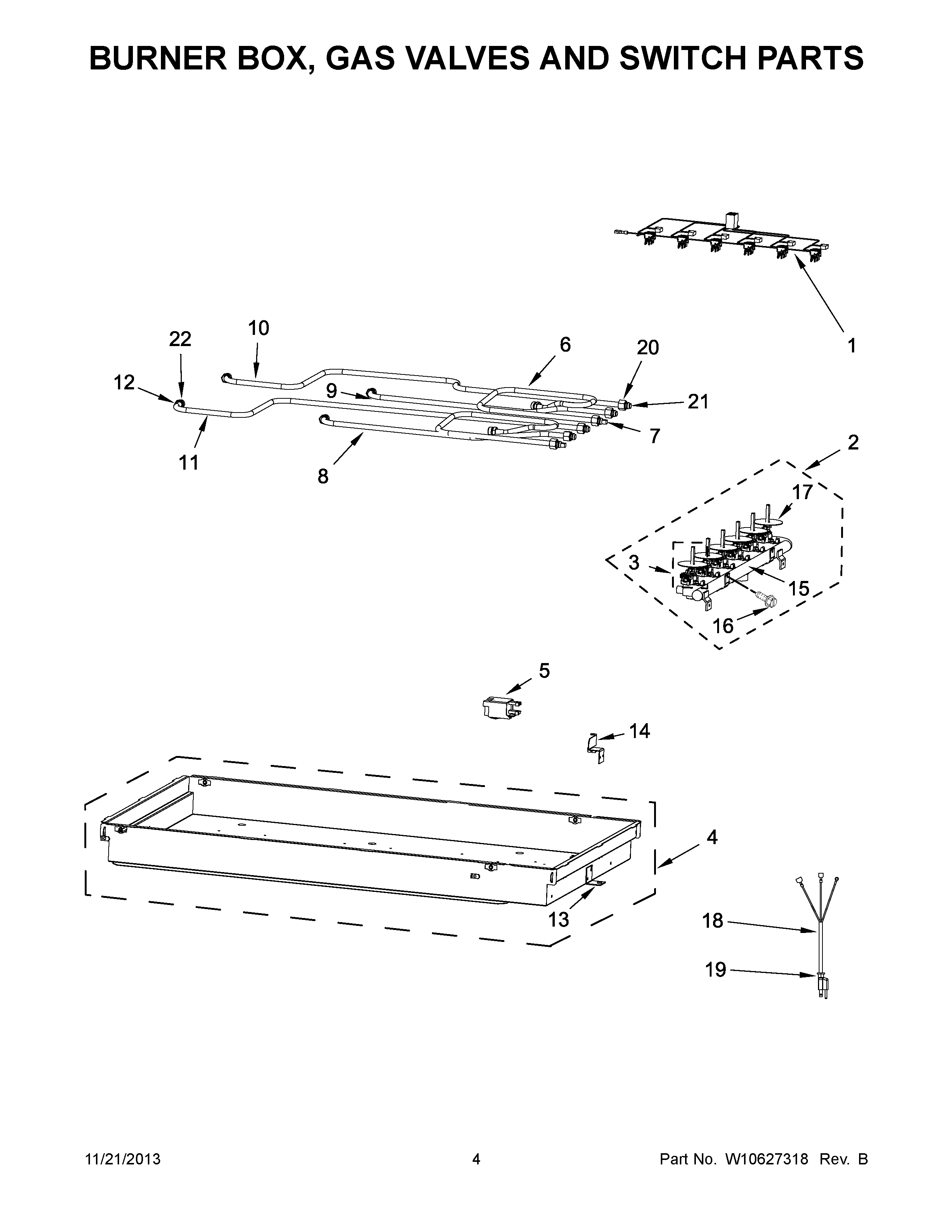

JGC7636BP0 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10590568
NI	MAY W10593220
NI	MAY W10593221
NI	MAY W10617681
NI	SCREW, BURNER BOX MOUNTING (10-32 X 1" PAN HEAD)
NI	SCREW, COOKTOP (6-32 X 3/8" PAN HEAD)
NI	SCREW, MANIFOLD PIPE MOUNTING (8 X 3/8" PAN HEAD)
NI	SCREW, BURNER BOX MOUNTING (8-32 X 3/8" PAN HEAD)
NI	MAY W10626014
1	MAY W10617680
2	MAY W10617391
3	MAY W10617472
3	MAY W10617471
3	MAY W10617473
4	MAY W10617591
5	SPARK MODULE
6	MAY W10617632
7	MAY W10617623
8	MAY W10617629
9	MAY W10617622
10	MAY W10617621
11	MAY W10617807
12	MAY W10575399
13	BRACKET, MOUNTING
14	MAY W10617630
15	MAY W10617475
16	MAY W10617476
17	WASHER (SPARK SWITCH)
18	CORD, POWER
19	MAY W10618504
20	MAY 8190918
21	MAY 8190917
22	MAY W10575398
