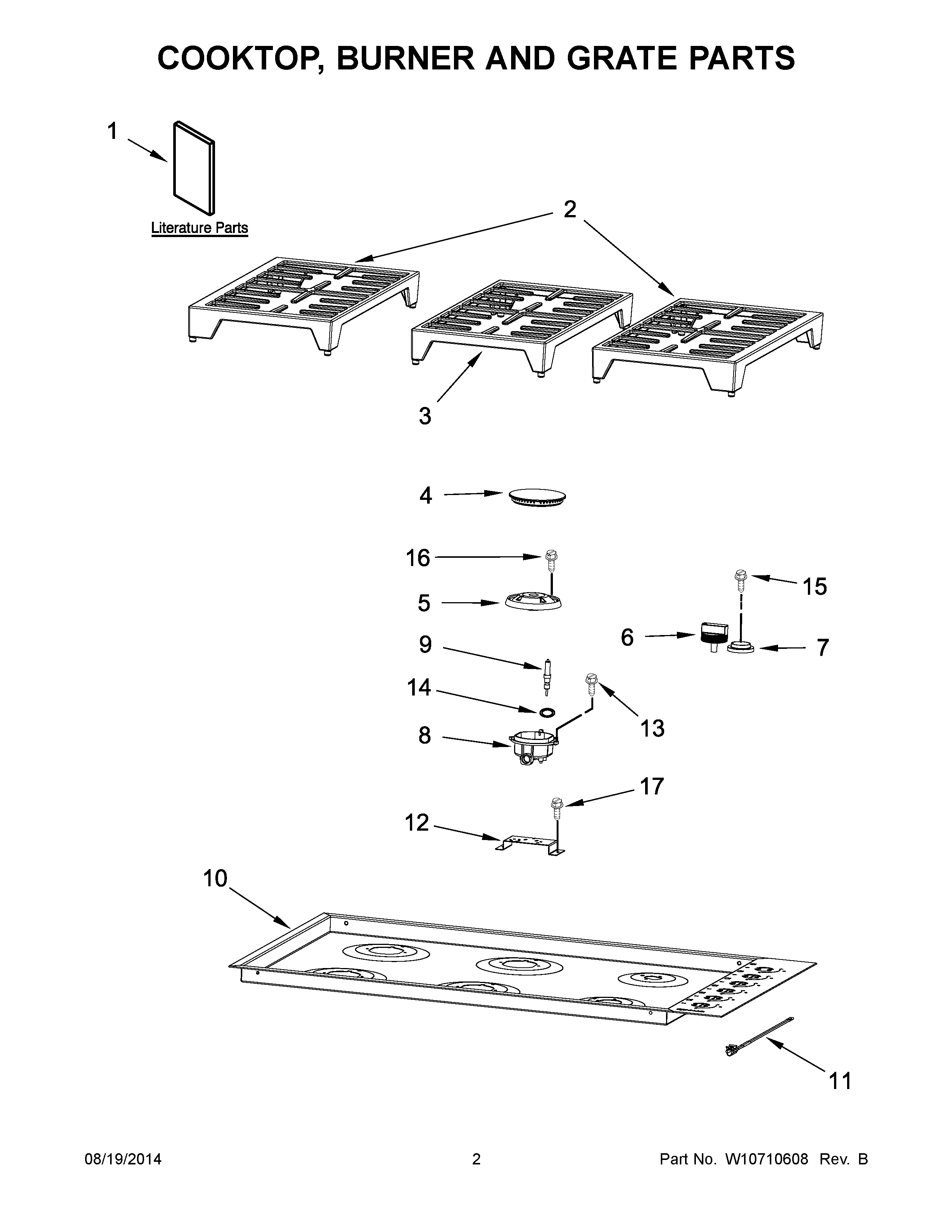

JGC7636BP00 02 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
JGC7636BP00 02 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
1D
TIPS, SAFE COOKING (ENGLISH)
1A
MAY W10620795
1B
MAY W10588274
1C
MAY W10588276
1
MAY W10588275
2A
MAY W10617812
2
MAY W10617811
3
MAY W10617813
3A
MAY W10617814
4B
MAY W10617817
4A
MAY W10617816
4
MAY W10617815
5
MAY W10617818
5A
MAY W10617819
5B
MAY W10617820
6
MAY W10620811
6A
MAY W10620810
7
MAY W10618500
8
HOLDER ORIFICE (132MM) (RIGHT FRONT)
8A
MAY W10618475
8B
HOLDER ORIFICE (170MM) (LEFT REAR, CENTER REAR, CENTER FRONT)
8C
HOLDER ORIFICE (193MM) (LEFT FRONT)
9
ELECTRODE (395MM) (CENTER FRONT, CENTER REAR)
9A
MAY W10617809
9B
ELECTRODE (250MM) (RIGHT FRONT)
9C
MAY W10623868
10
MAY W10618505
11
ASSEMBLY, INDICATOR LIGHT (LED)
12
BRACKET, ORIFICE HOLDER
13
MAY W10626015
14
MAY W10571930
15
MAY W10637348
16
MAY W10626016
16A
MAY W10626017
17
MAY W10626012
←
