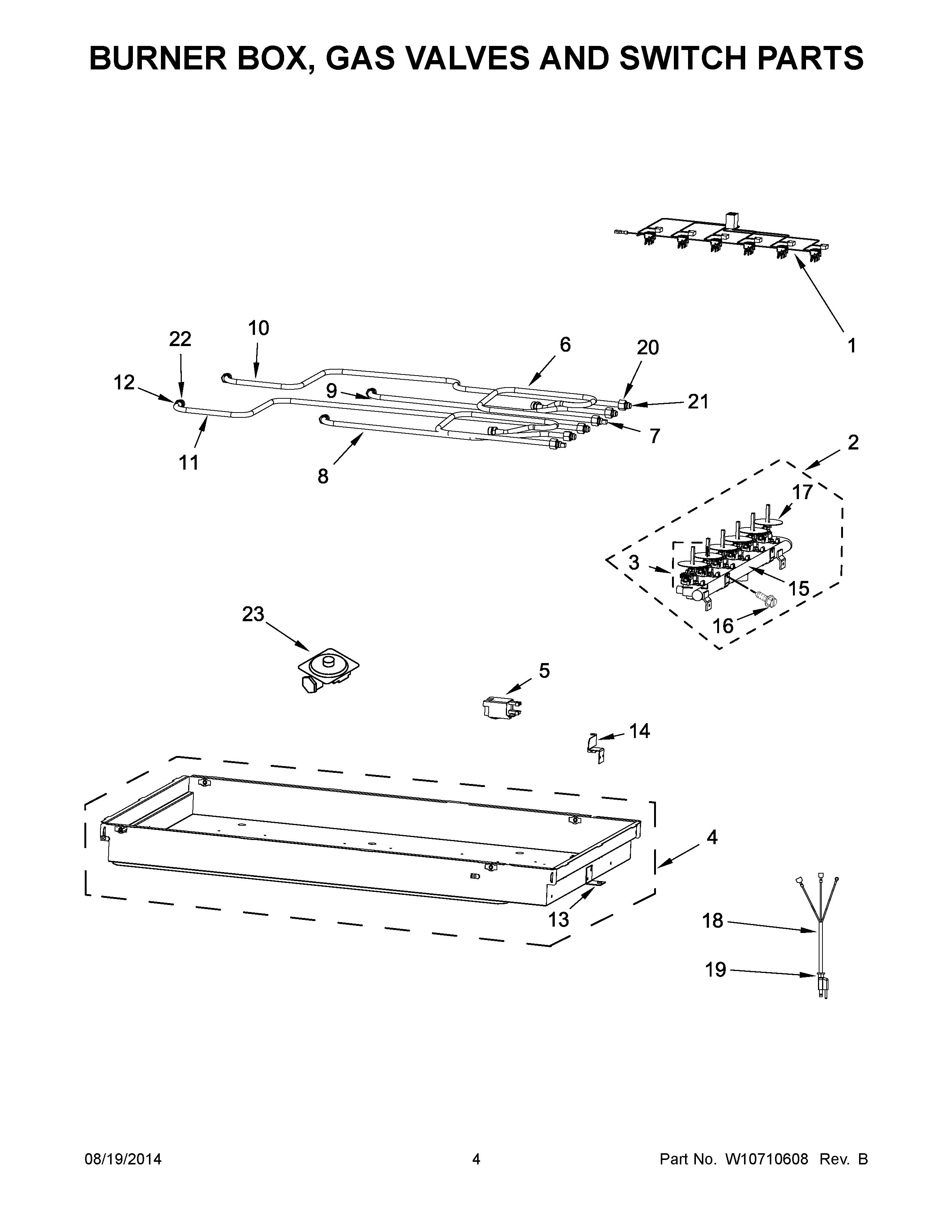

JGC7636BP00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

JGC7636BP00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

JGC7636BP00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10590568
NIMAY W10593220
NIMAY W10593221
NIMAY W10617681
NISCREW, BURNER BOX MOUNTING (10-32 X 1" PAN HEAD)
NISCREW, COOKTOP (6-32 X 3/8" PAN HEAD)
NISCREW, MANIFOLD PIPE MOUNTING (8 X 3/8" PAN HEAD)
NISCREW, BURNER BOX MOUNTING (8-32 X 3/8" PAN HEAD)
NIMAY W10626014
1MAY W10617680
2MAY W10617391
3BMAY W10617472
3AMAY W10617471
3MAY W10617473
4MAY W10617591
5SPARK MODULE
6MAY W10617632
7MAY W10617623
8MAY W10617629
9MAY W10617622
10MAY W10617621
11MAY W10617807
12MAY W10575399
13BRACKET, MOUNTING
14MAY W10617630
15MAY W10617475
16MAY W10617476
17WASHER (SPARK SWITCH)
18CORD, POWER
19MAY W10618504
20MAY 8190918
21MAY 8190917
22MAY W10575398
23MAY W10569189
