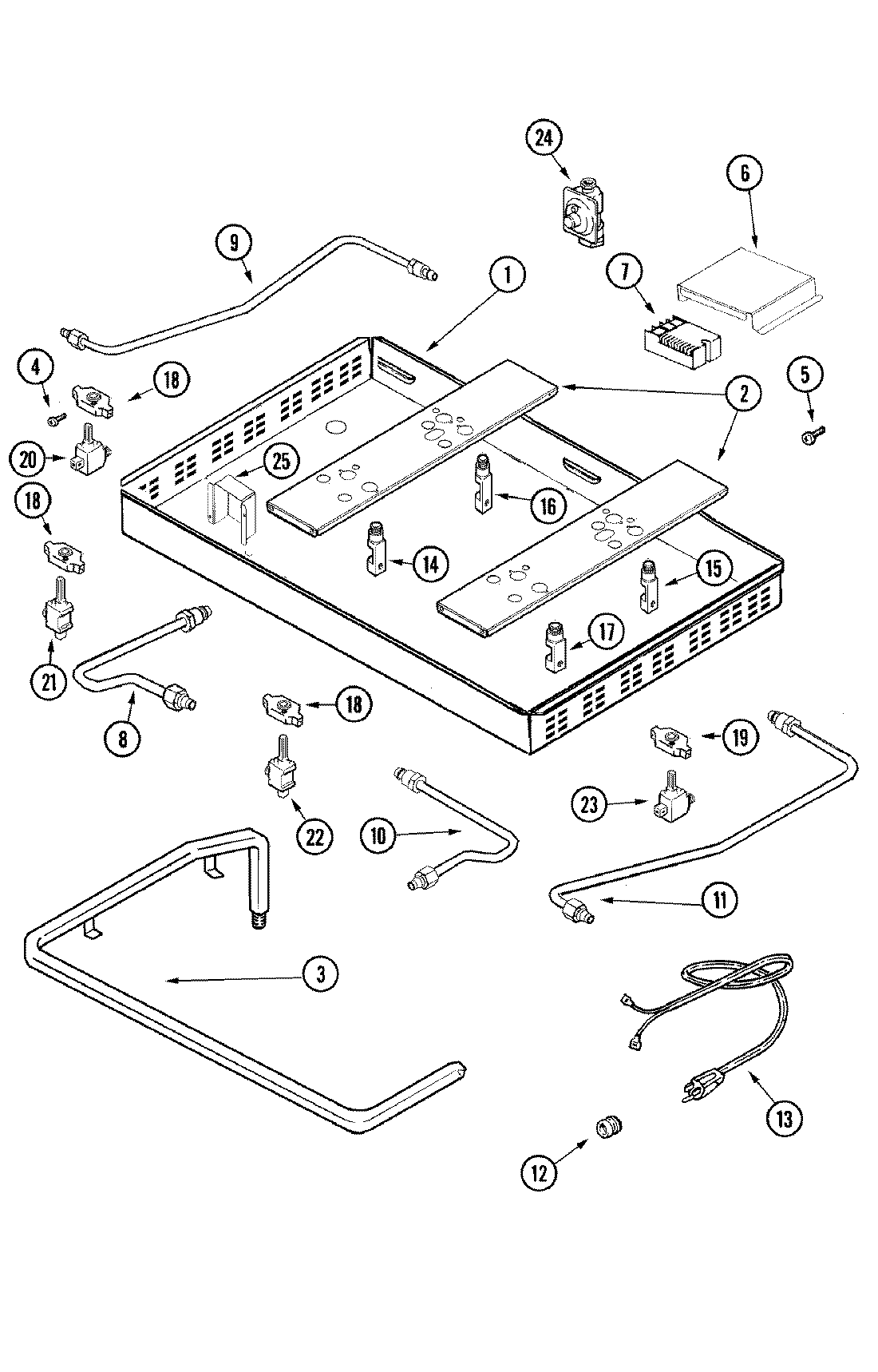

JGC8430ADB 01 – BODY

Products

Position	Product
1	MAY Y706186
1	WP3400202 Whirlpool Screw
1	MAY 74006599
1	MAY 74005932
2	BRACKET, SEALED BURNER
3	MAY 74005943
3	MAY 74006605
3	MAY 74006606
3	MAY 74006607
4	MAY 71003231
5	WP90767 Whirlpool Screw
6	COVER, SPARK MODULE
7	WPW10475147 Whirlpool Spark Module
8	MAY 74005948
9	MAY 74005949
10	MAY 74005950
11	MAY 74005951
12	MAY 705833
13	MAY 74005927
14	Holder W/Orifice (6.5K) (LF,RR)
14	71002728 Whirlpool Oven LP Orifice
15	MAY 71002727
15	HOLDER W/ORIFICE (9.1K)
16	HOLDER W/ORIFICE (10.5K)
17	MAY 71002723
17	WP7509P062-60 Whirlpool Orifice Spud
18	WP74005954 Whirlpool Igniter Switch
19	74005953 Whirlpool Oven Igniter Switch
20	VALVE, TOP BURNER
21	VALVE, TOP BURNER
22	VALVE, TOP BURNER
23	VALVE, TOP BURNER
23	MAY 7724P004-60
24	W11106948 Whirlpool Pressure Regulator
25	MAY 74006339
