JGC8430ADB 02 – TOP ASSEMBLY

JGC8430ADB 02 – TOP ASSEMBLY

Written by

in

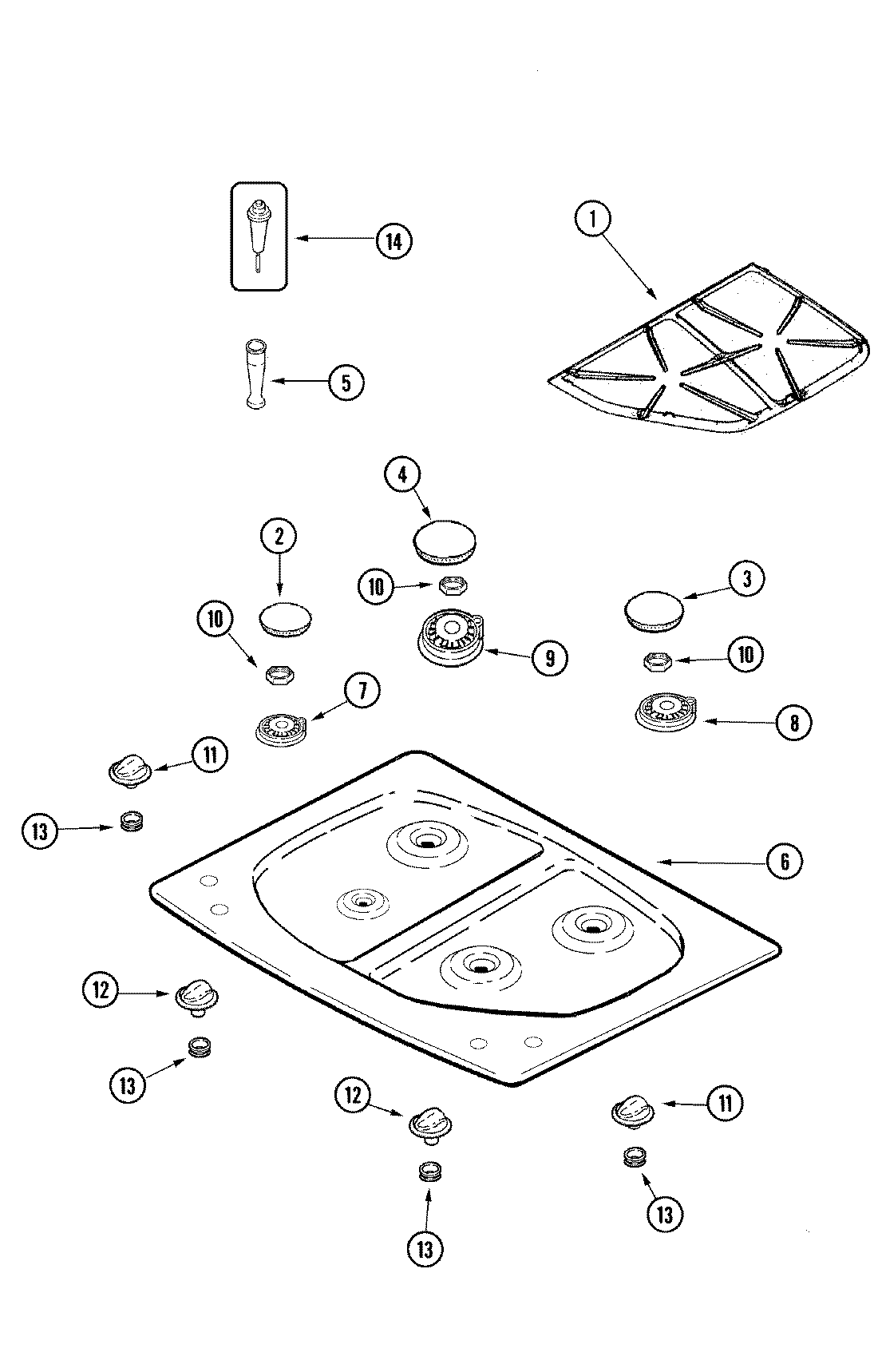

JGC8430ADB 02 – TOP ASSEMBLY

Products

PositionProduct
1GRATE (RT-BLK)
1GRATE (LT-BLK)
2MAY 74007198
2MAY 74005349
2CAP, BURNER (SMR-MT BLK)
3WP74007196 Whirlpool Burner Cap
3MAY 74005344
4CAP, BURNER (LRG-BLK)
4MAY 74005345
5WP7538P003-60 Whirlpool Venturi
6MAY 74005929
7WP7540P028-60 Whirlpool Burner Base
8MAY 74005956
8BURNER, BASE (SM)
9BURNER, BASE (LRG)
9MAY 74005957
10WP7103P178-60 Whirlpool Nut
11WP74005940 Whirlpool Burner Knob
12WP74005939 Whirlpool Burner Knob
13WP74005934 Whirlpool Grommet
14WP7432P109-60 Whirlpool Oven Igniter
15MAY 74005960
16MAY 74005962
17MAY 74005959
18MANUAL, USE & CARE
19MAY 74005475
