JGC8430ADS 02 – TOP ASSEMBLY – Aparts

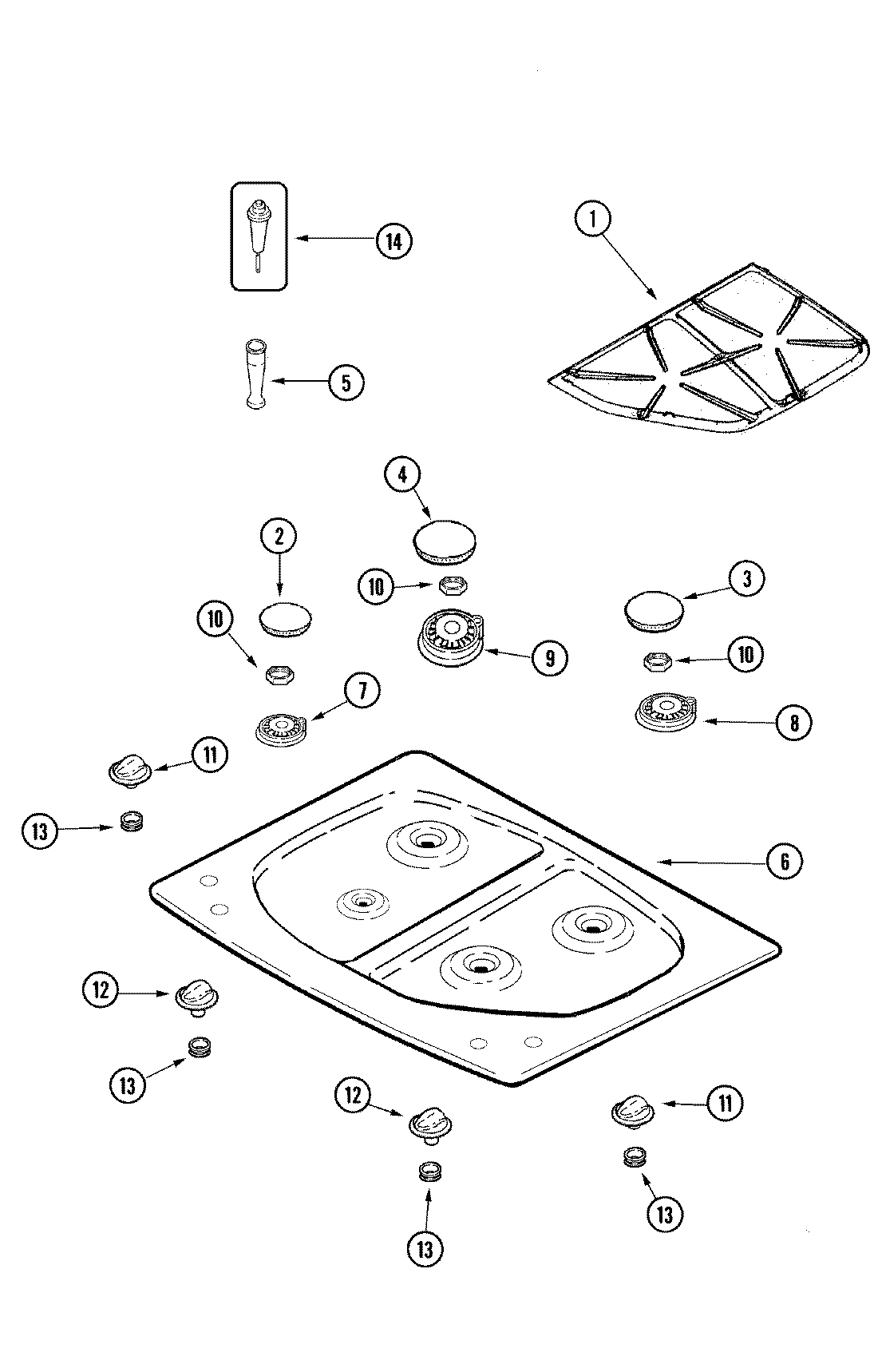

JGC8430ADS 02 – TOP ASSEMBLY

Products

Position	Product
1	GRATE (LT-BLK)
1	GRATE (RT-BLK)
2	MAY 74005349
2	MAY 74007198
2	CAP, BURNER (SMR-MT BLK)
3	WP74007196 Whirlpool Burner Cap
3	MAY 74005344
4	MAY 74005345
4	CAP, BURNER (LRG-BLK)
5	WP7538P003-60 Whirlpool Venturi
6	MAY 74005931
7	WP7540P028-60 Whirlpool Burner Base
8	MAY 74005956
8	BURNER, BASE (SM)
9	MAY 74005957
9	BURNER, BASE (LRG)
10	WP7103P178-60 Whirlpool Nut
11	WP74005940 Whirlpool Burner Knob
12	WP74005939 Whirlpool Burner Knob
13	WP74005934 Whirlpool Grommet
14	WP7432P109-60 Whirlpool Oven Igniter
15	MAY 74005960
16	MAY 74005962
17	MAY 74005959
18	MANUAL, USE & CARE
19	MAY 74005475
