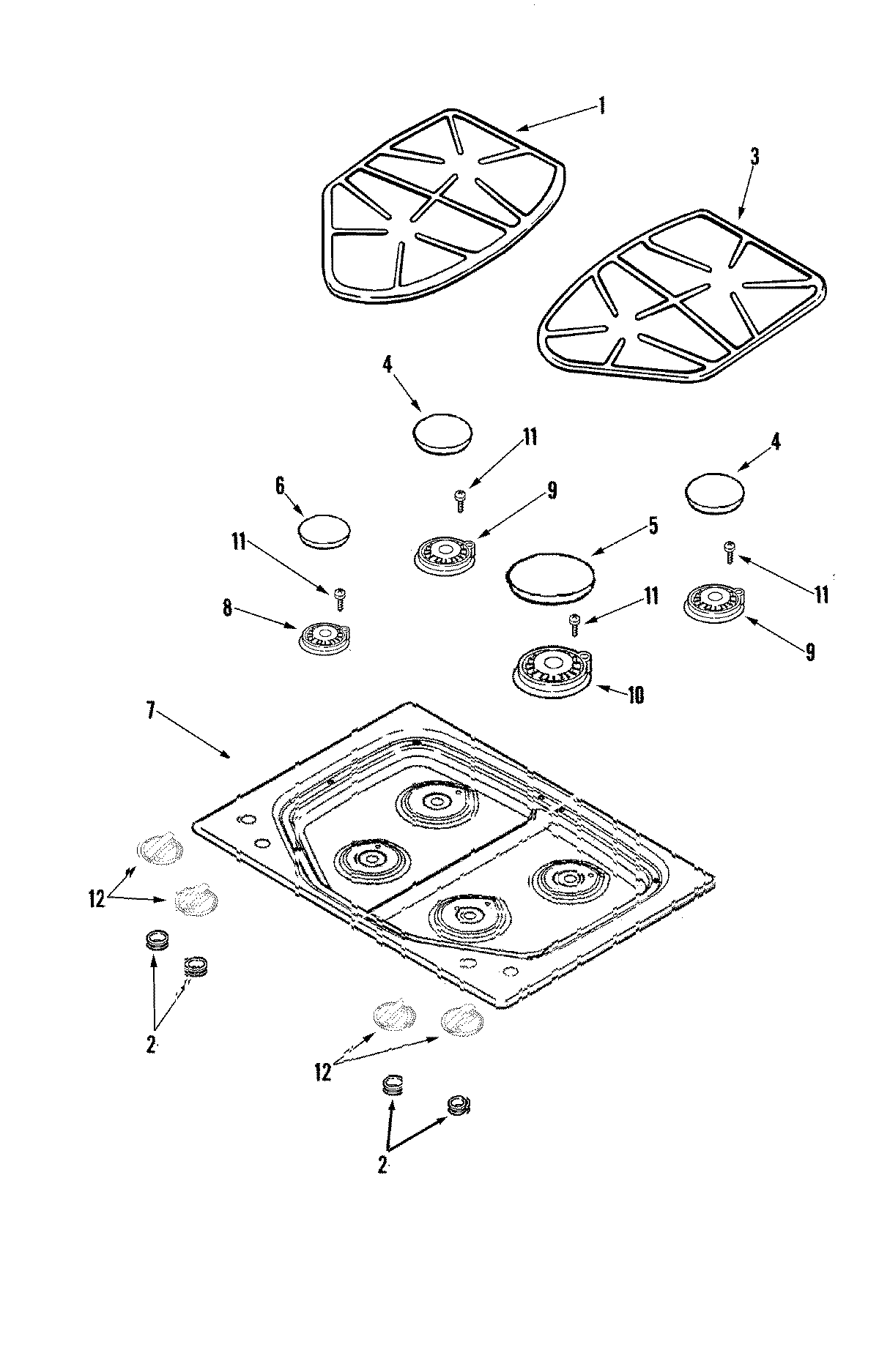

JGC8430BDB 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY W10203486
1MAY 74009549
2WP74007705 Whirlpool Grommet
3MAY W10203484
3MAY 74009550
4Cap, Burner (12.5K RF, LR)
5CAP, BURNER (EX-LRG/BLK)
6WP8284669 Whirlpool Burner Cap
7MAY 74009542
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10WP74009336 Whirlpool Oven Top Igniter
11WP3368921 Whirlpool Screw
12WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
