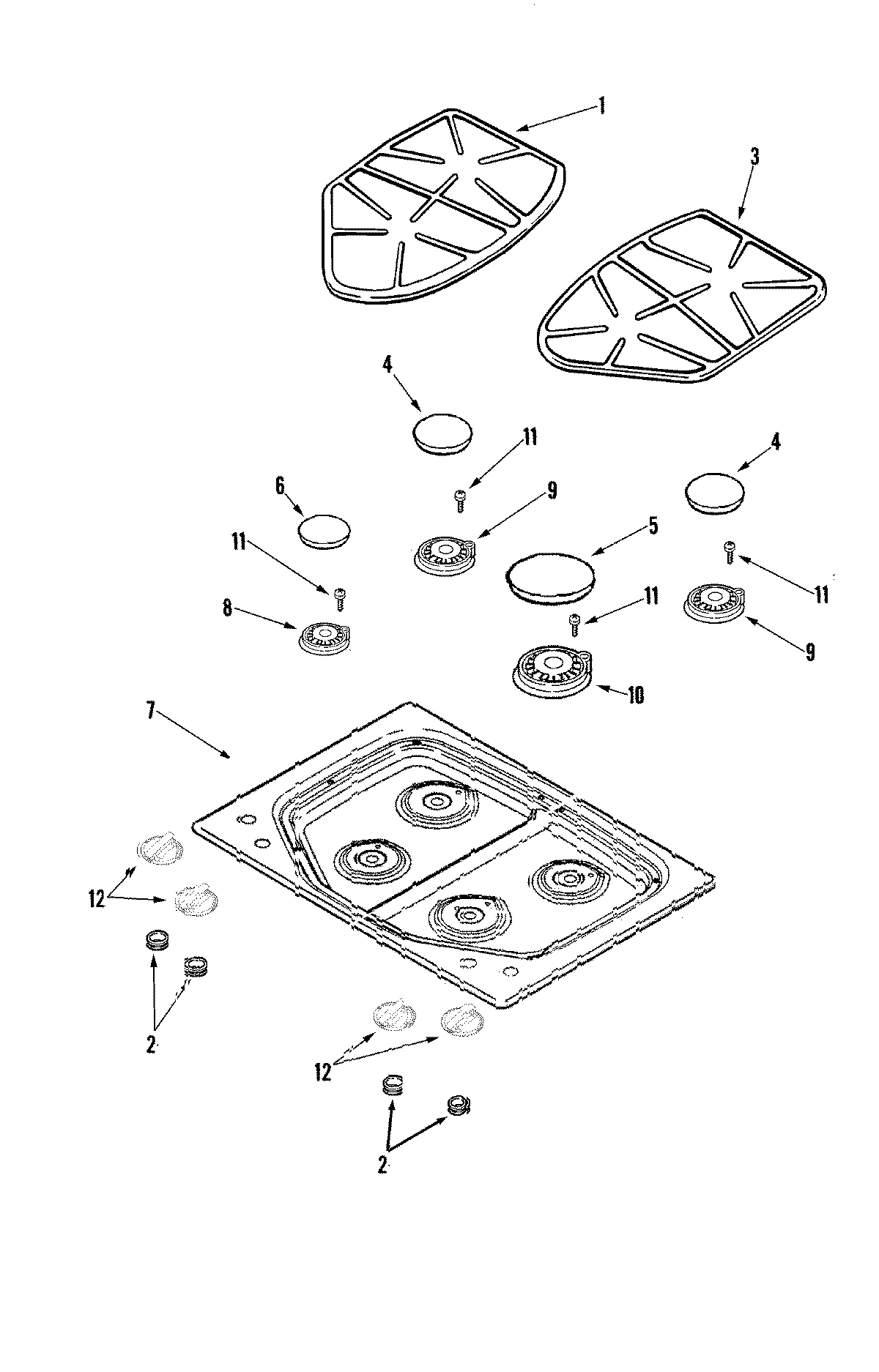

JGC8430BDQ 03 – TOP ASSEMBLY

JGC8430BDQ 03 – TOP ASSEMBLY

Written by

in

JGC8430BDQ 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74009547
2WP74007705 Whirlpool Grommet
3MAY 74009548
4WP74007751 Whirlpool Burner Cap
5WP74007417 Whirlpool Burner Cap
6WP74007419 Whirlpool Burner Cap
7MAY 74009544
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10WP74009336 Whirlpool Oven Top Igniter
11WP3368921 Whirlpool Screw
12WP74009554 Whirlpool Burner Knob
