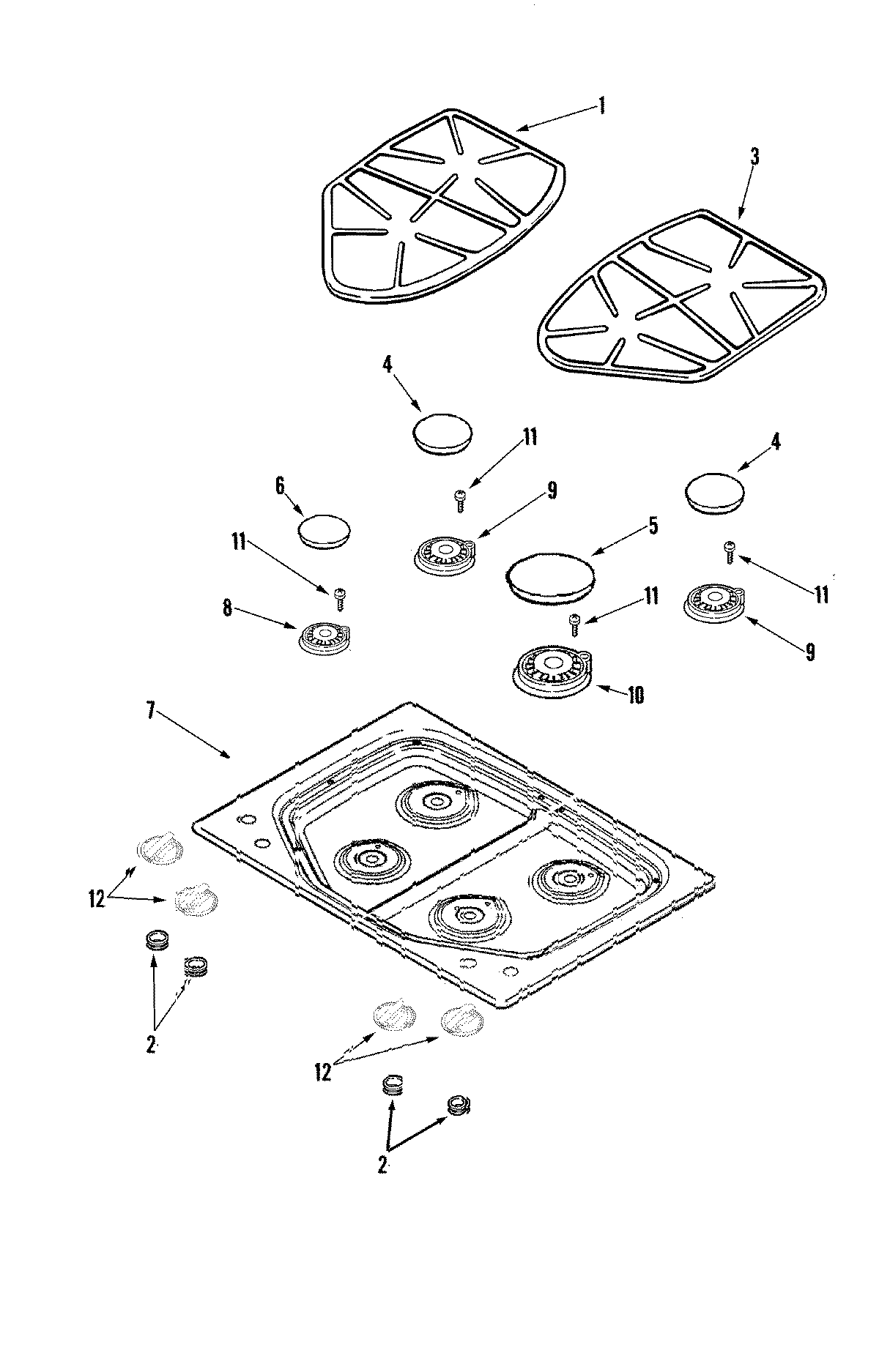

JGC8430BDS 03 – TOP ASSEMBLY

Products

Position	Product
1	MAY W10203486
1	MAY 74009549
2	WP74007705 Whirlpool Grommet
3	MAY W10203484
3	MAY 74009550
4	Cap, Burner (12.5K RF, LR)
5	CAP, BURNER (EX-LRG/BLK)
6	WP8284669 Whirlpool Burner Cap
7	MAY 74009555
8	74007734 Whirlpool Burner Assembly
9	74007735 Whirlpool Burner Assembly
10	74007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10	WP74009336 Whirlpool Oven Top Igniter
11	WP3368921 Whirlpool Screw
12	WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
