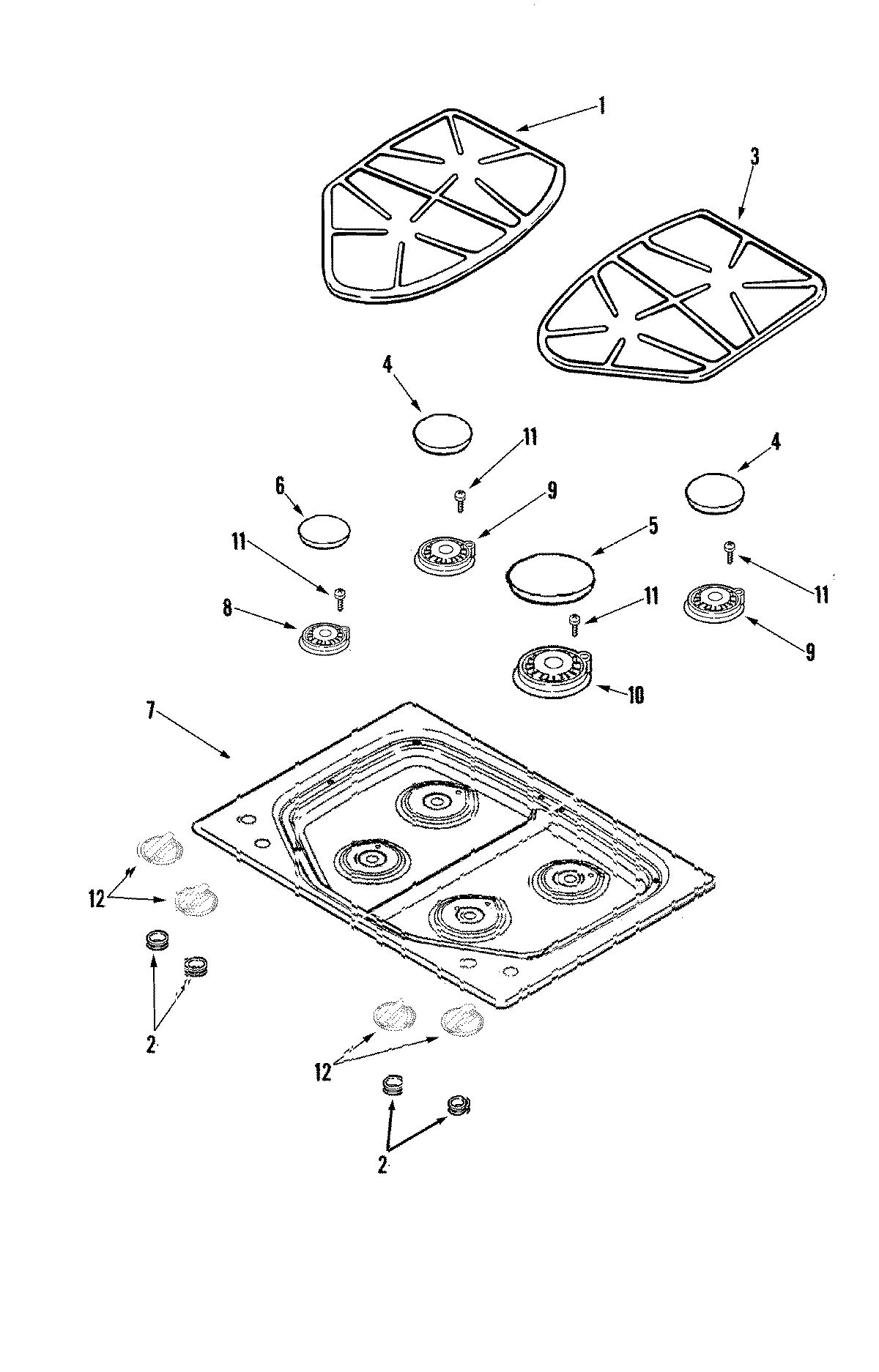

JGC8430BDW 03 – TOP ASSEMBLY

JGC8430BDW 03 – TOP ASSEMBLY

Written by

in

JGC8430BDW 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 7518P433-60
1MAY 74009551
2WP74007705 Whirlpool Grommet
3MAY 7518P434-60
3MAY 74009552
4WP74007752 Whirlpool Burner Cap (Medium Gray)
5WP74007420 Whirlpool Large Gray Burner Cap
6CAP, BURNER (SMR-GRY)
7MAY 74009543
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10WP74009336 Whirlpool Oven Top Igniter
11WP3368921 Whirlpool Screw
12WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
