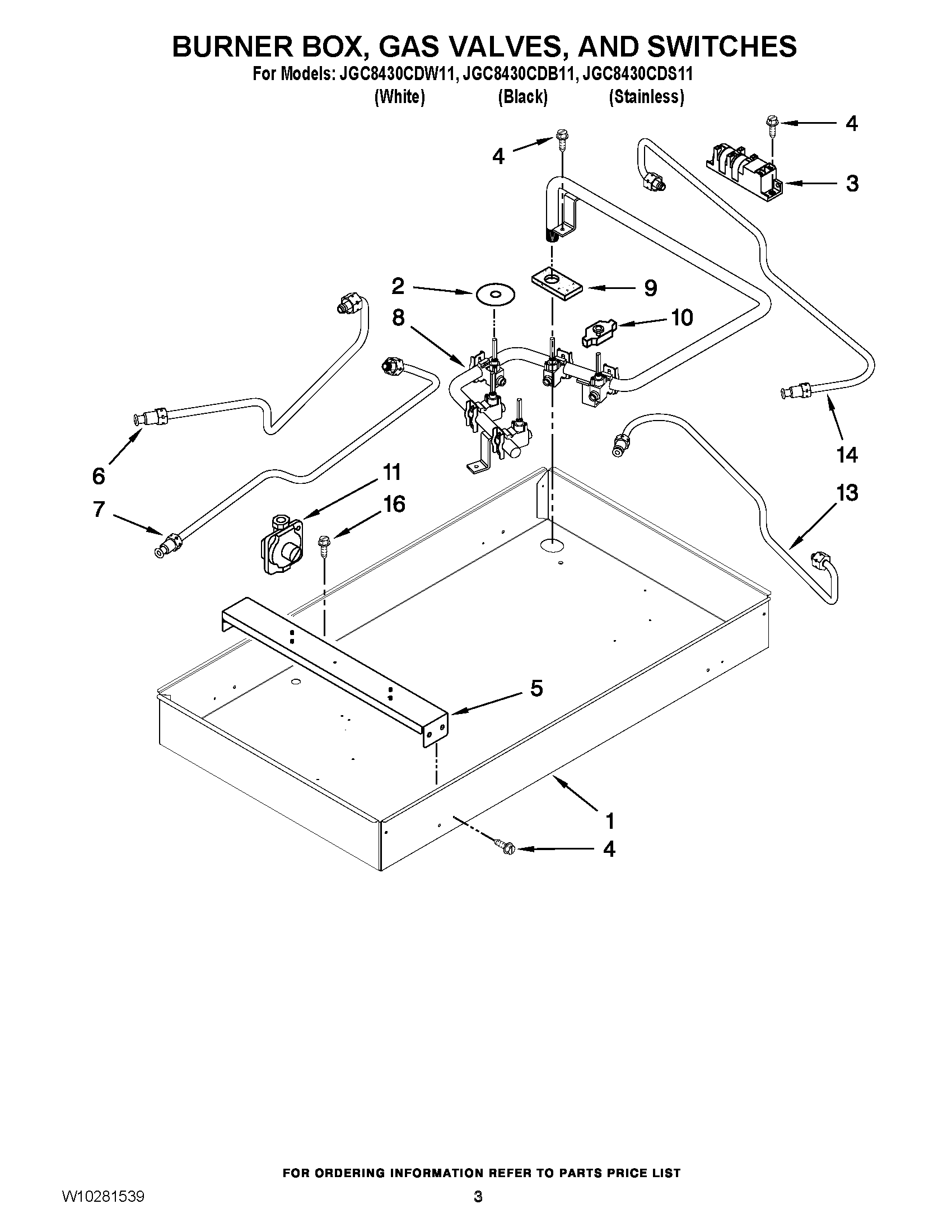

JGC8430CDB11 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGC8430CDB11 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGC8430CDB11 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1MAY W10258464
2Seal, Valve Shaft
3MAY 7431P038-60
4MAY 7101P426- 60
5MAY 3801F889-51
6MAY 7506P370-60
7MAY 7506P371-60
8MAY 7513P305-60
9MAY 7208P024-60
10WP74007753 Whirlpool BU Switch
10WP74007774 Whirlpool Switch Button
11MAY 7510P093-60
13MAY 7506P372-60
14TUBING, GAS (RIGHT REAR)
16Screw, Ground
