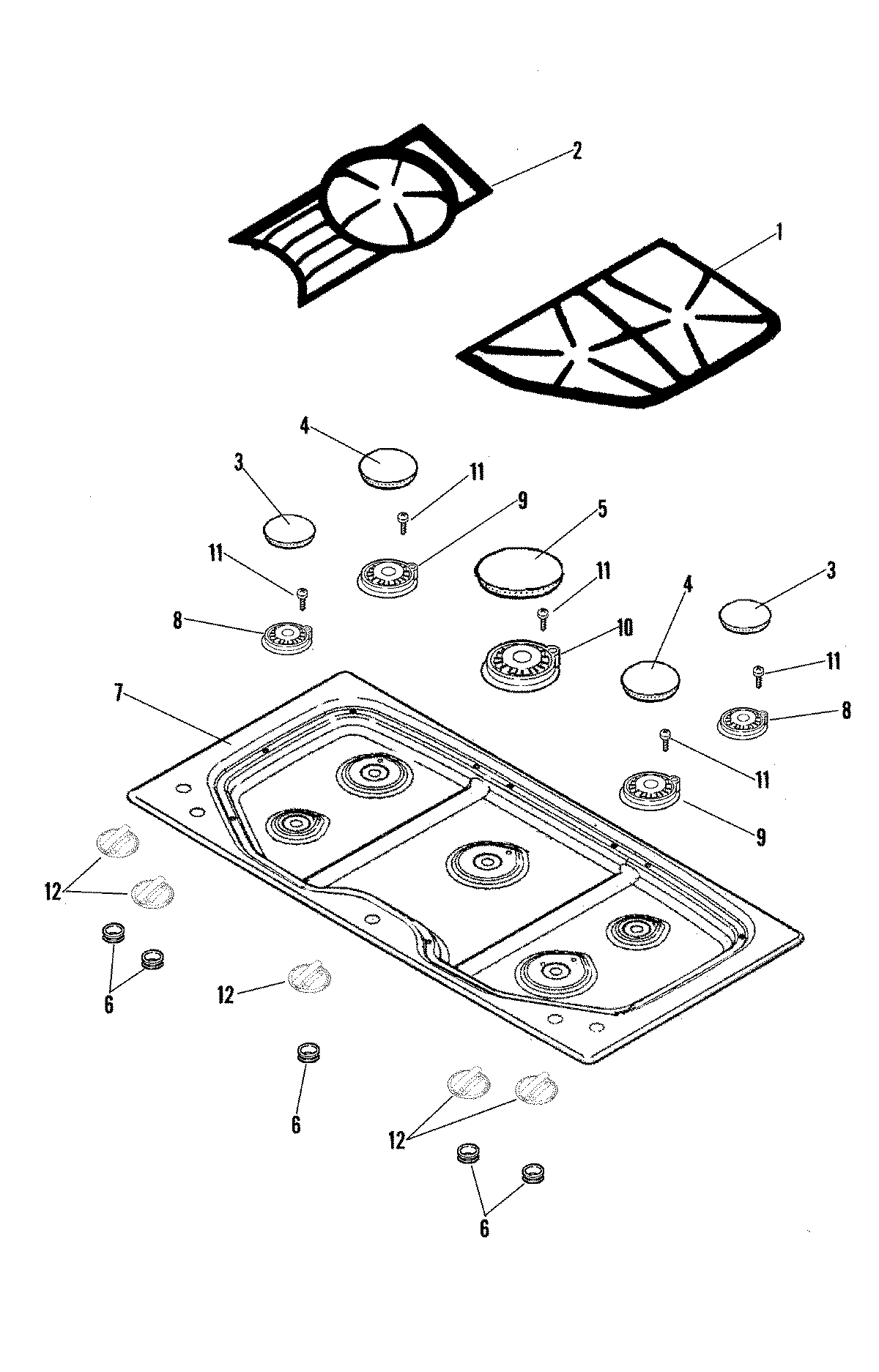

JGC8536ADB 03 – TOP ASSEMBLY

JGC8536ADB 03 – TOP ASSEMBLY

Written by

in

JGC8536ADB 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74007738
1MAY 74007737
2MAY 74007739
3WP8284669 Whirlpool Burner Cap
4Cap, Burner (12.5K RF, LR)
5CAP, BURNER (EX-LRG/BLK)
6WP74007705 Whirlpool Grommet
7MAY 74007729
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
11WP3368921 Whirlpool Screw
12WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
13WP74009336 Whirlpool Oven Top Igniter
13WP8273062 Whirlpool Screw
