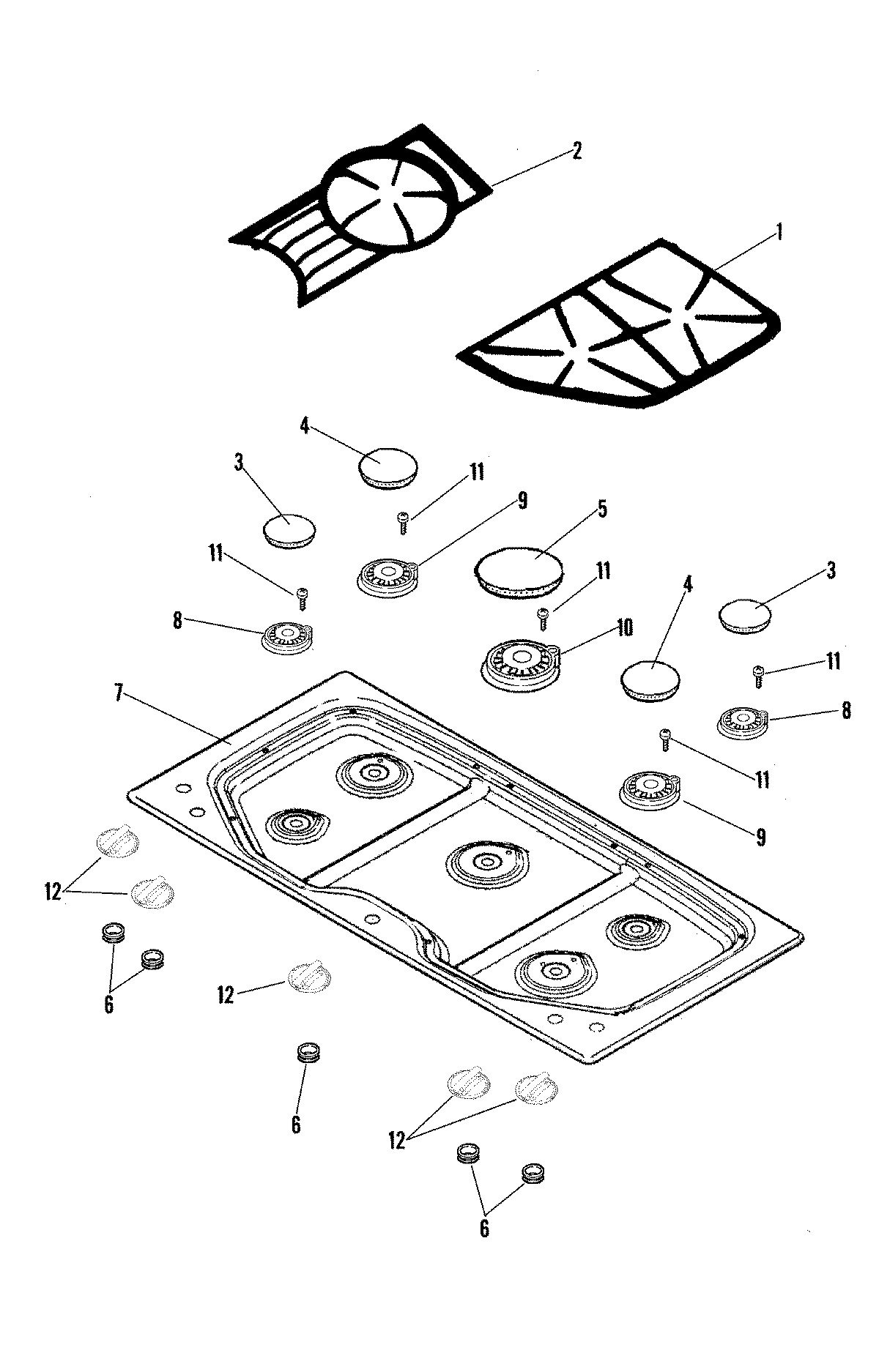

JGC8536ADW 03 – TOP ASSEMBLY

JGC8536ADW 03 – TOP ASSEMBLY

Written by

in

JGC8536ADW 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74007744
1MAY 74007743
2MAY 74007745
3CAP, BURNER (SMR-GRY)
4WP74007752 Whirlpool Burner Cap (Medium Gray)
5WP74007420 Whirlpool Large Gray Burner Cap
6WP74007705 Whirlpool Grommet
7COOKTOP (WHITE)
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
11WP3368921 Whirlpool Screw
12WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
13WP74009336 Whirlpool Oven Top Igniter
13WP8273062 Whirlpool Screw
