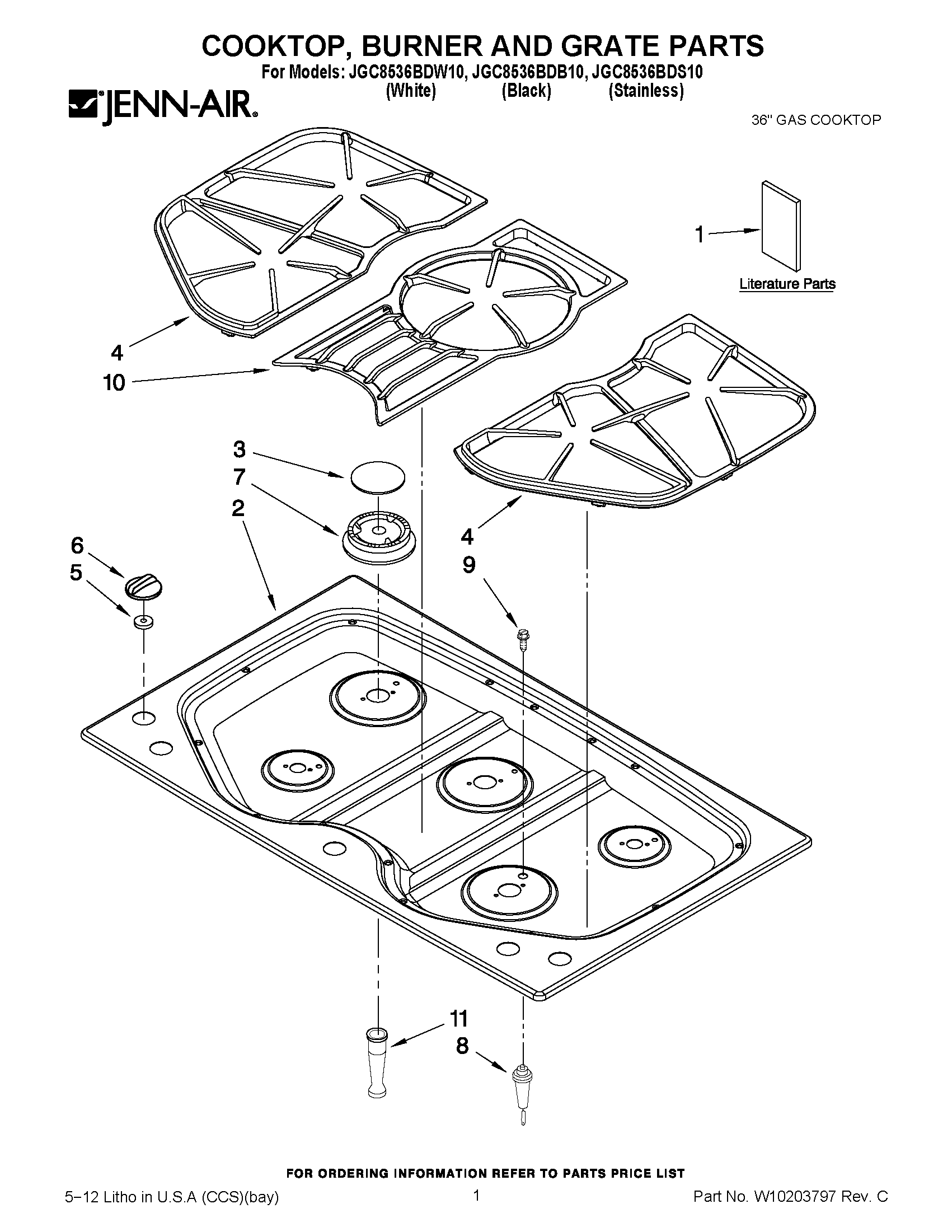

JGC8536BDB10 01 – COOKTOP, BURNER AND GRATE PARTS

JGC8536BDB10 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGC8536BDB10 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Use & Care Guide
1MAY W10203467
2COOKTOP (WHITE)
2WP2001F255-E1 Whirlpool Cooktop
2MAY 74007729
3CAP, BURNER (CTR)
3CAP, BURNER (LF & RR)
3CAP, BURNER (LR & RF)
4MAY W10203775
4MAY W10203774
5WP74007705 Whirlpool Grommet
6MAY W10203520
7MAY W10203537
7MAY W10203534
7MAY 8215559
8WP74009336 Whirlpool Oven Top Igniter
9WP8273062 Whirlpool Screw
10MAY W10203776
11MAY W10203539
11MAY 74010092
