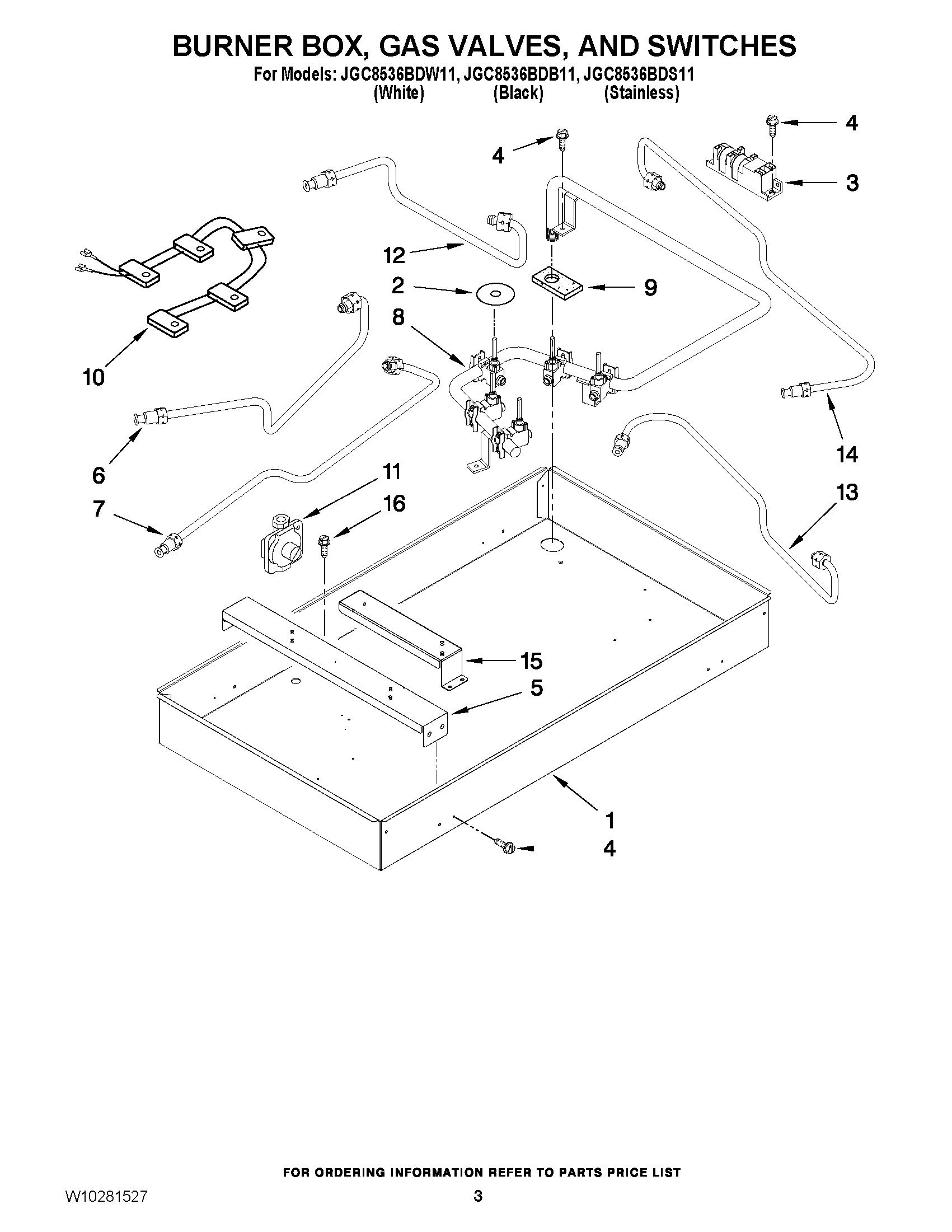

JGC8536BDB11 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1MAY W10247661
2Seal, Valve Shaft
3SPARK MODULE
4MAY 7101P426- 60
5MAY 3801F891-51
5MAY 3801F892-51
5BRACKET, ORIFICE HOLDER (2)
6MAY 7506P370-60
7MAY 7506P371-60
8PIPE, MANIFOLD (INCLUDES VALVES)
9MAY 7208P024-60
10WP74007774 Whirlpool Switch Button
10WP74007753 Whirlpool BU Switch
10HARNESS & SWITCHES (CENTER)
11MAY 7510P093-60
12MAY 7506P369-60
13MAY 7506P372-60
14TUBING, GAS (RIGHT REAR)
15MAY 3801F890-51
16Screw, Ground
