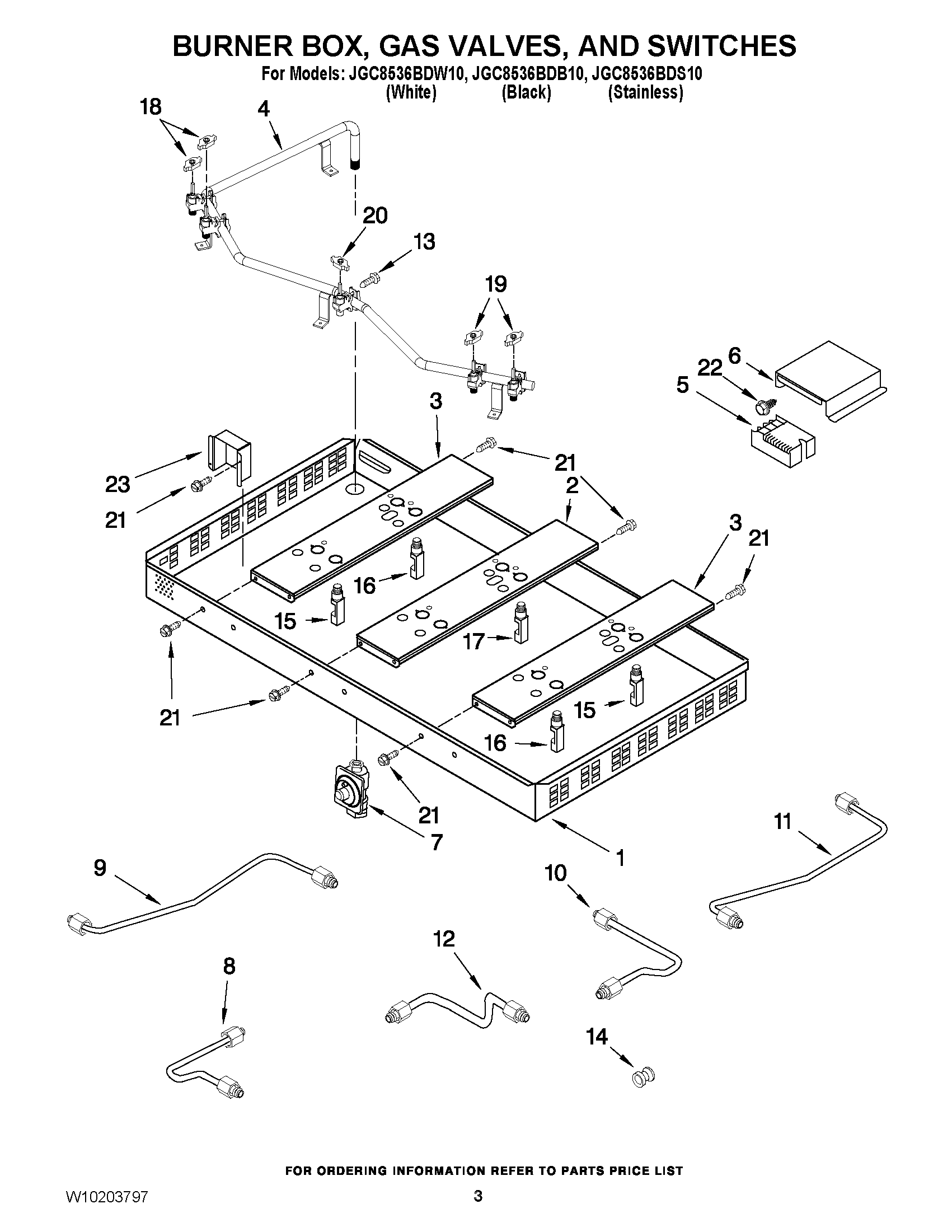

JGC8536BDS10 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1MAY W10203777
2MAY 74005976
3BRACKET, SEALED BURNER
4PIPE, MANIFOLD (INCLUDES VALVES)
5MAY W10110573
6MAY W10203556
7W11087445 Whirlpool Pressure Regulator
8MAY 74007755
9MAY 74007756
11MAY 74007758
12MAY 74007757
13MAY 71003231
14MAY 550707
1574009553 Whirlpool Orifice Holder
16WP7527P003-60 Whirlpool Orifice Holder
17WP7527P004-60 Whirlpool Orifice Holder
18WP74007753 Whirlpool BU Switch
19WP74007774 Whirlpool Switch Button
20HARNESS & SWITCHES (CENTER)
21MAY 200758
22MAY 7101P426- 60
23MAY W10175142
