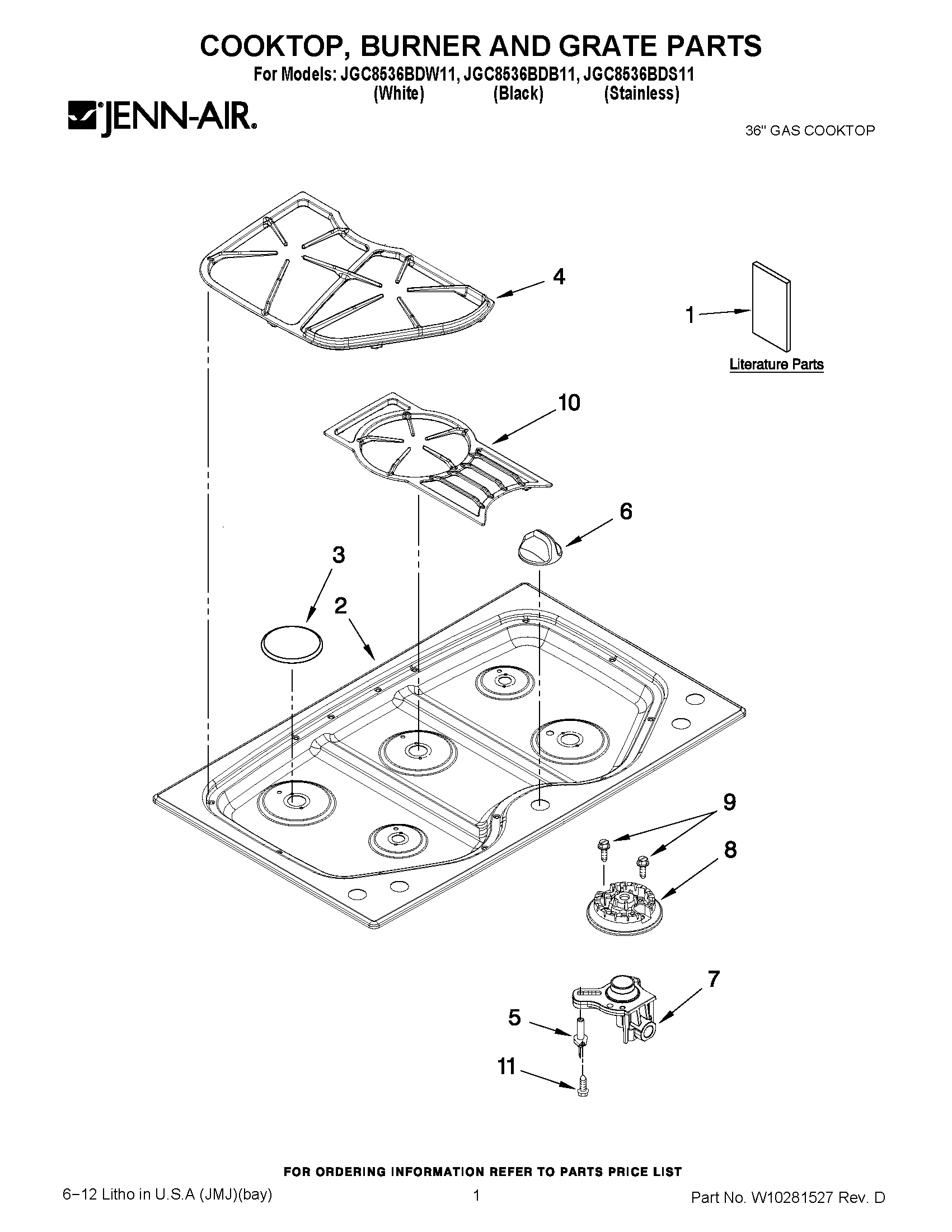

JGC8536BDW11 01 – COOKTOP, BURNER AND GRATE PARTS

JGC8536BDW11 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGC8536BDW11 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY 8101P643-60
1MAY W10210795
1MAY W10205174
1USE & CARE GUIDE
1TIPS, SAFE COOKING (FRENCH)
2MAY 2001N305-09
2MAY 2001N305-81
2MAY 2001N306-55
3Cap, Burner (Black)
3CAP, BURNER (CTR)
3CAP, BURNER (LF & RR)
3CAP, BURNER (LR & RF)
4MAY 7518P423-60
4MAY 7518P424-60
5IGNITOR
6KNOB, CONTROL (5) (PLATINUM)
7HOLDER, ORIFICE (LF, RR)
7HOLDER, ORIFICE (CTR)
7MAY 7527P003-60
7HOLDER, ORIFICE (LR)
8HEAD, BURNER (LF & RR)
8HEAD, BURNER (LR & RF)
8HEAD, BURNER (CTR)
9WP3368921 Whirlpool Screw
10MAY 7518P440-60
11MAY 7101P606-60
