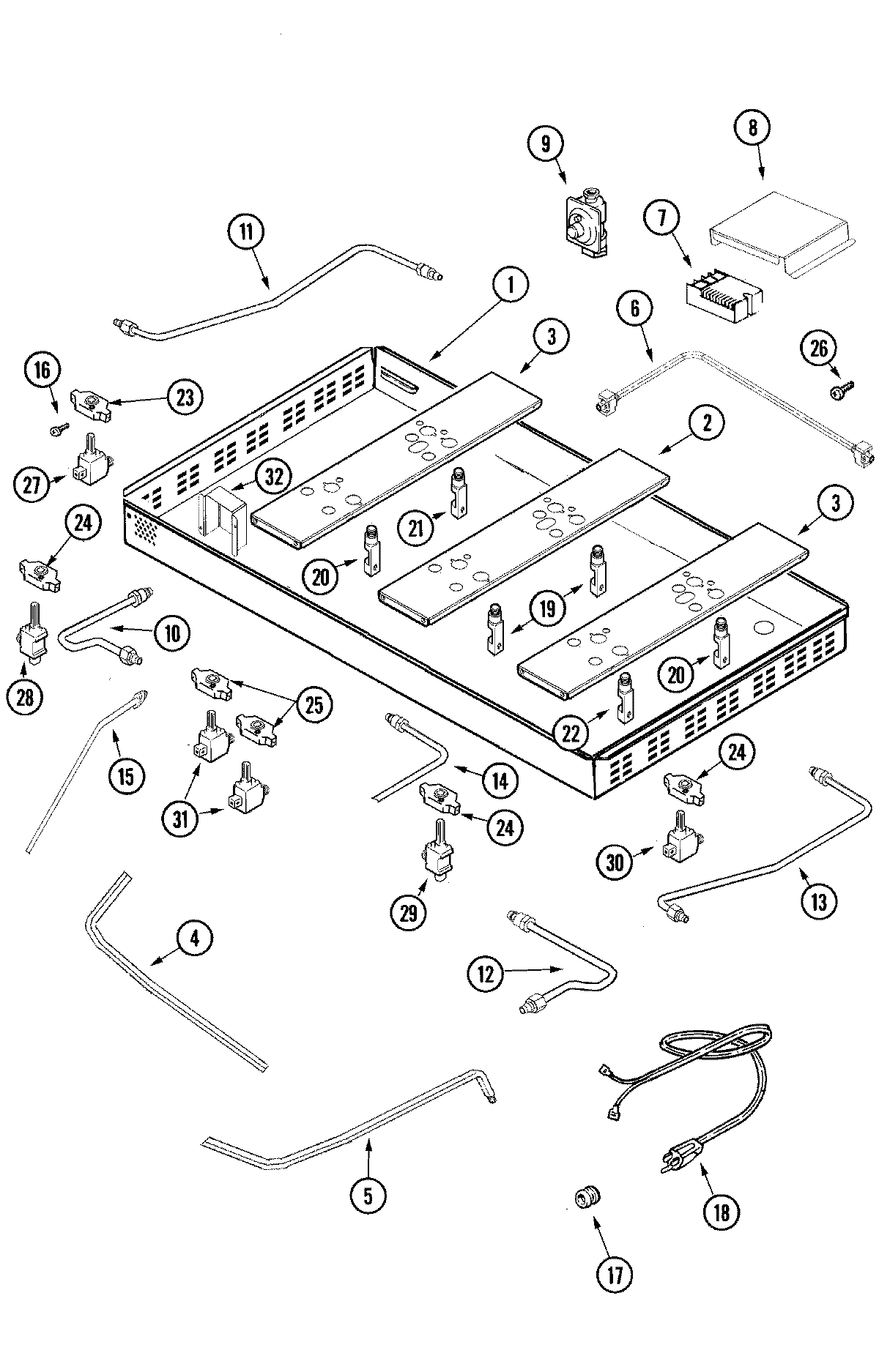

JGC8645ADB 01 – BODY

Products

Position	Product
1	MAY 74005969
1	MAY Y706186
1	WP3400202 Whirlpool Screw
2	MAY 74005976
3	BRACKET, SEALED BURNER
4	MAY 74005971
5	MAY 74005970
6	MAY 74005972
7	WP71002749 Whirlpool Spark Module
8	COVER, SPARK MODULE
9	W11106948 Whirlpool Pressure Regulator
10	MAY 74005948
11	MAY 74005949
12	MAY 74005950
13	MAY 74005951
14	MAY 74005974
15	MAY 74005975
16	MAY 71003231
17	MAY 705833
18	MAY 74005927
19	Holder W/Orifice (6.5K) (LF,RR)
19	71002728 Whirlpool Oven LP Orifice
20	MAY 71002727
20	HOLDER W/ORIFICE (9.1K)
21	HOLDER W/ORIFICE (10.5K)
22	MAY 71002723
22	WP7509P062-60 Whirlpool Orifice Spud
23	74005953 Whirlpool Oven Igniter Switch
24	WP74005954 Whirlpool Igniter Switch
25	SWITCH, IGNITER
26	WP90767 Whirlpool Screw
27	VALVE, TOP BURNER
28	VALVE, TOP BURNER
29	VALVE, TOP BURNER
30	VALVE, TOP BURNER
31	MAY 7724P004-60
31	VALVE, TOP BURNER
32	MAY 74006339
