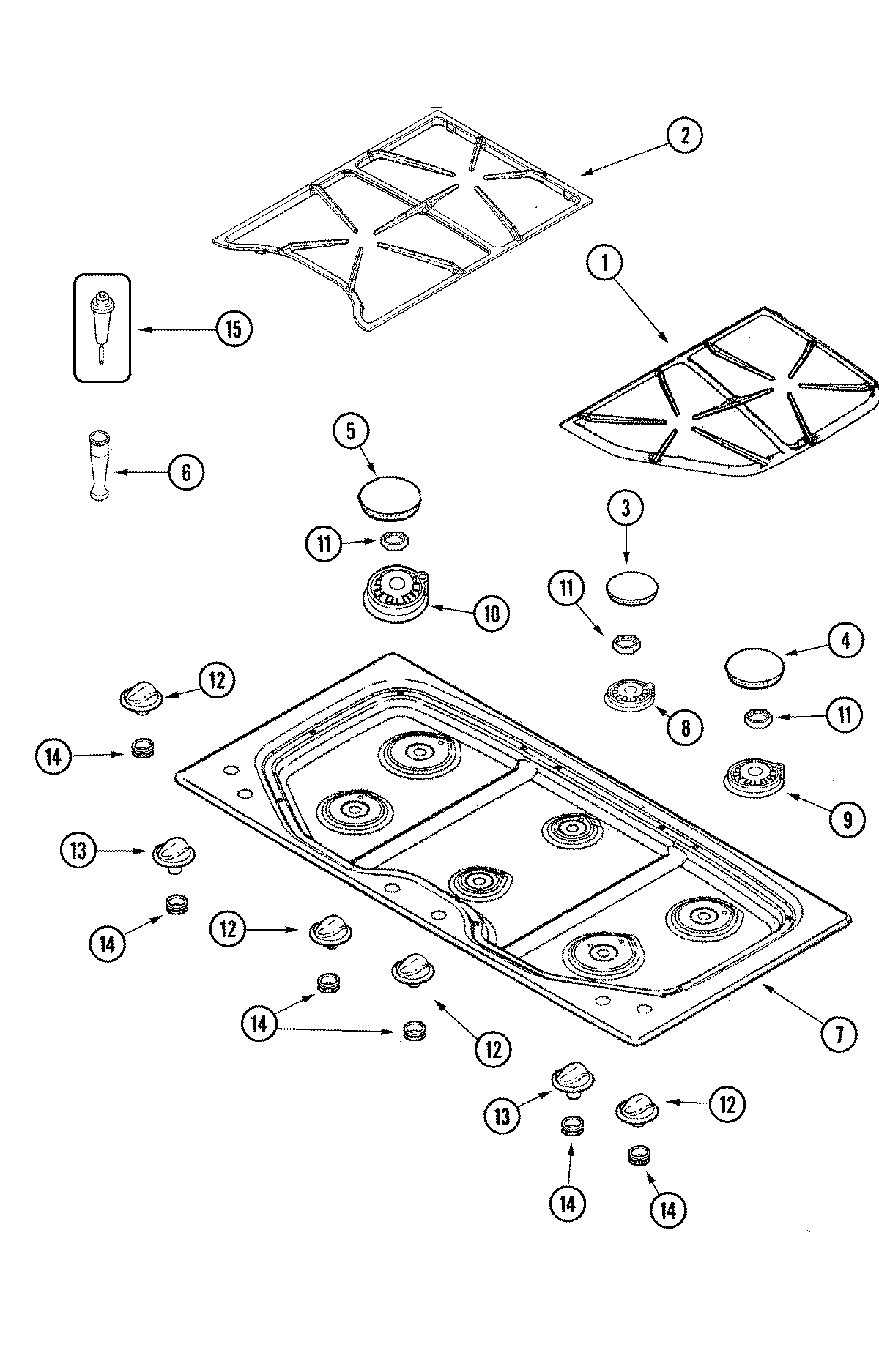

JGC8645ADS 02 – TOP ASSEMBLY

JGC8645ADS 02 – TOP ASSEMBLY

Written by

in

JGC8645ADS 02 – TOP ASSEMBLY

Products

PositionProduct
1GRATE (RT-BLK)
1GRATE (LT-BLK)
2GRATE, (CNTR-BLK)
3CAP, BURNER (SMR-MT BLK)
3MAY 74005349
4MAY 74005344
4WP74007196 Whirlpool Burner Cap
5CAP, BURNER (LRG-BLK)
5MAY 74005345
6WP7538P003-60 Whirlpool Venturi
7MAY 74005984
8WP7540P028-60 Whirlpool Burner Base
9MAY 74005956
10BURNER, BASE (LRG)
10MAY 74005957
11WP7103P178-60 Whirlpool Nut
12WP74005940 Whirlpool Burner Knob
13WP74005939 Whirlpool Burner Knob
14WP74005934 Whirlpool Grommet
15WP7432P109-60 Whirlpool Oven Igniter
15HARNESS, SPARK LEAD (LT)
15Harness,Spark(RT)
15HARNESS, MAIN WIRE
16MAY 74005988
17MANUAL, USE & CARE
18MAY 74005475
