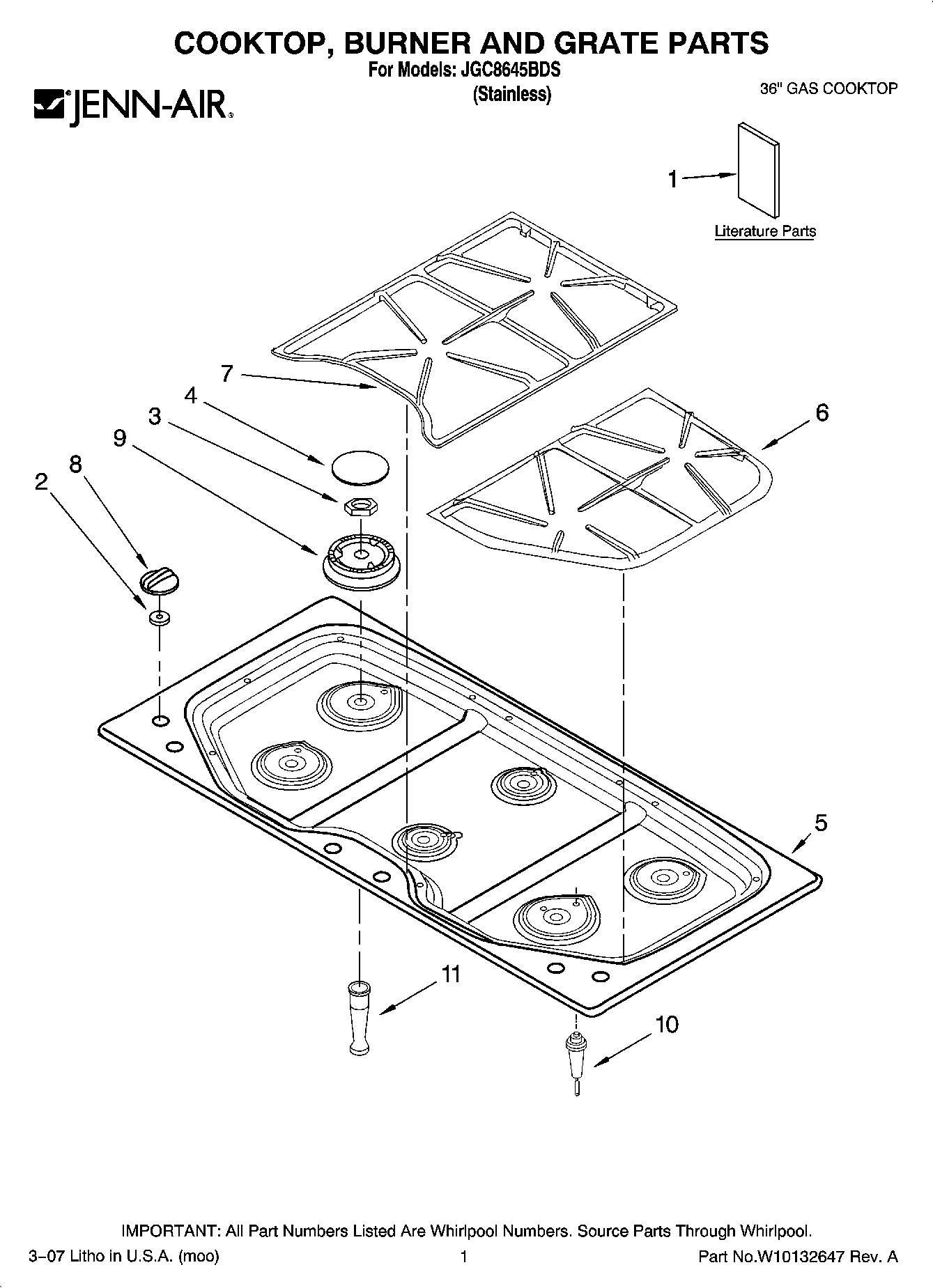

JGC8645BDS 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MANUAL, USE & CARE
2WP74005934 Whirlpool Grommet
3WP7103P178-60 Whirlpool Nut
4CAP, BURNER (LRG-BLK)
4CAP, BURNER (SMR-MT BLK)
4WP74007196 Whirlpool Burner Cap
5MAY 74009565
6GRATE (LT-BLK)
6GRATE (RT-BLK)
7GRATE, (CNTR-BLK)
8W11246919 Whirlpool Knob
8MAY 74009566
9BURNER, BASE (LRG)
9BURNER, BASE (SM)
9WP7540P028-60 Whirlpool Burner Base
10WP7432P109-60 Whirlpool Oven Igniter
11WP7538P003-60 Whirlpool Venturi
