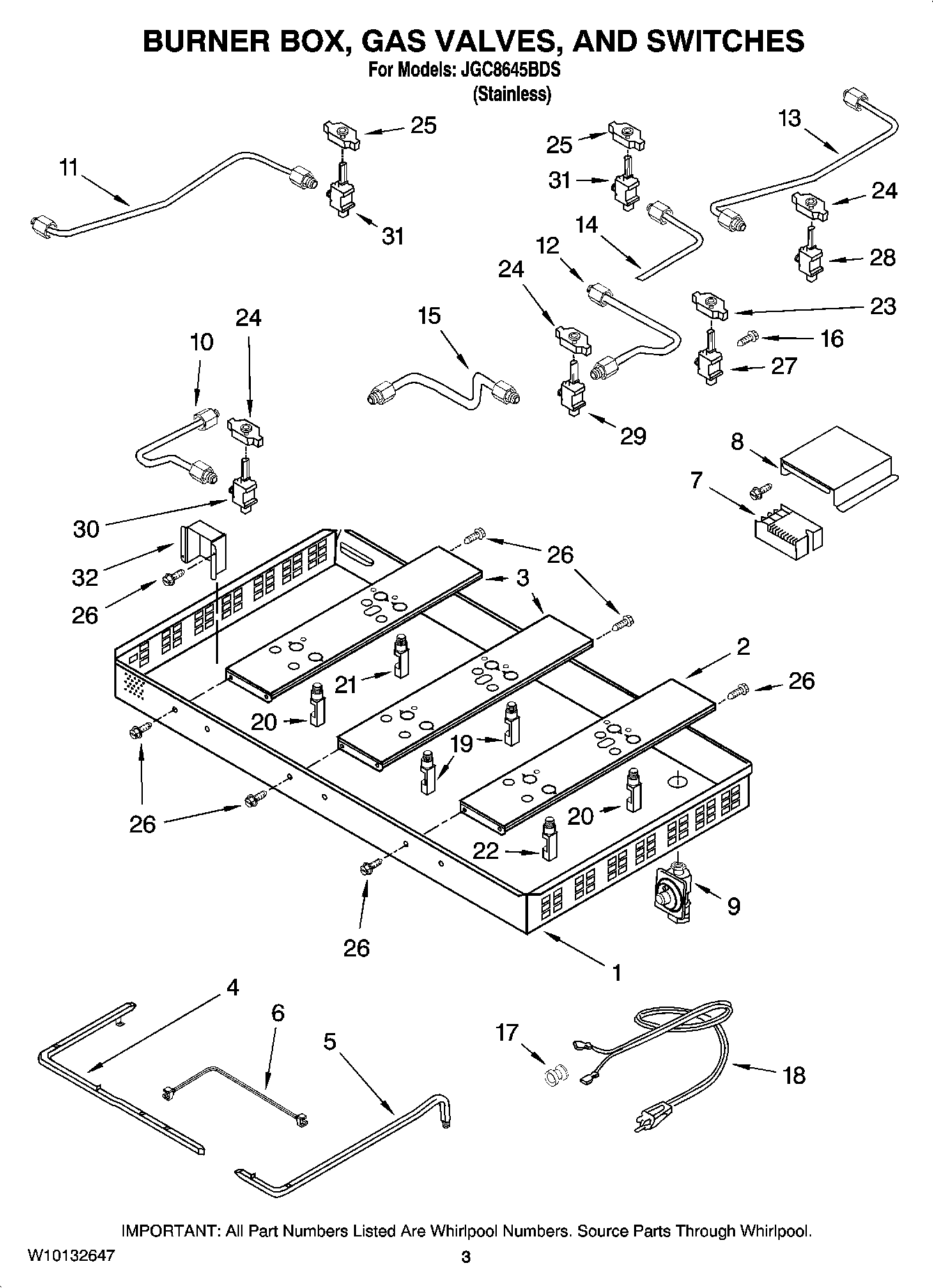

JGC8645BDS 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	DOR-FIP WH
NI	HARNESS, SPARK LEAD (LT)
NI	MAY 74005988
NI	HARNESS, MAIN WIRE
NI	Harness,Spark(RT)
NI	MAY 3804F247-45
1	MAY 74009562
2	MAY 74005976
3	BRACKET, SEALED BURNER
4	MAY 74005971
5	Pipe,Manifold(LT)
6	MAY 74005972
7	WP71002749 Whirlpool Spark Module
8	COVER, SPARK MODULE
9	W11106948 Whirlpool Pressure Regulator
10	MAY 74005948
11	MAY 74005949
12	MAY 74005950
13	MAY 74005951
14	MAY 74005974
15	MAY 74005975
16	MAY 71003231
17	MAY 705833
18	MAY 74007903
19	Holder W/Orifice (6.5K) (LF,RR)
20	HOLDER W/ORIFICE (9.1K)
21	HOLDER W/ORIFICE (10.5K)
22	MAY 71003150
23	74005953 Whirlpool Oven Igniter Switch
24	WP74005954 Whirlpool Igniter Switch
25	SWITCH, IGNITER
26	WP90767 Whirlpool Screw
27	VALVE, TOP BURNER
28	VALVE, TOP BURNER
29	VALVE, TOP BURNER
30	VALVE, TOP BURNER
31	VALVE, TOP BURNER
32	MAY 74006339
