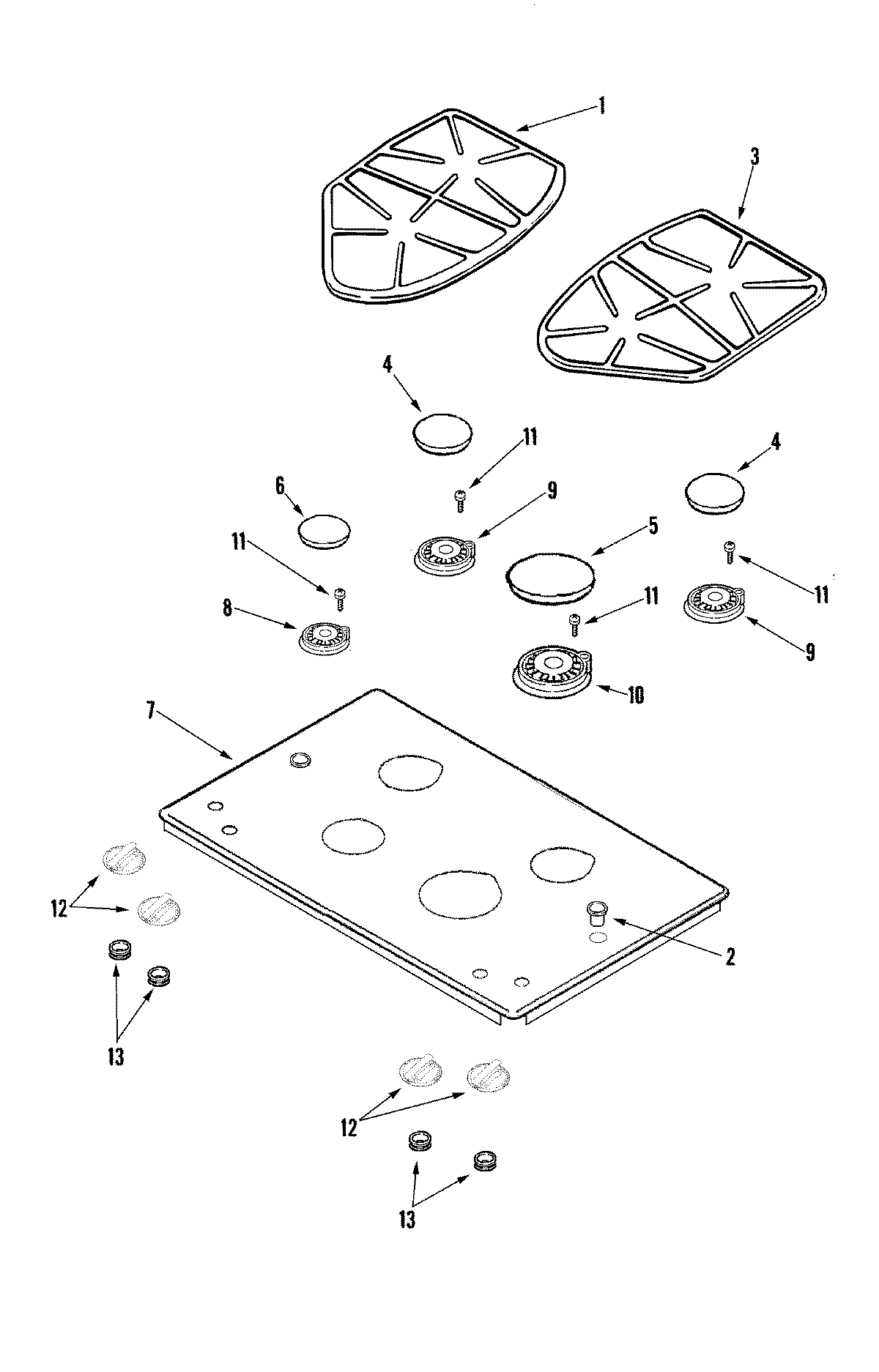

JGC9430ADB 03 – TOP ASSEMBLY

JGC9430ADB 03 – TOP ASSEMBLY

Written by

in

JGC9430ADB 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74008002
2MAY 74007982
2MAY 74007981
3GRATE (BLK-RT)
4WP74007925 Whirlpool Burner Cap
5WPW10154101 Whirlpool Burner Cap
6WP3191898 Whirlpool Surface Burner Cap Black
7MAY 74008010
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10WP74009336 Whirlpool Oven Top Igniter
11WP3368921 Whirlpool Screw
12WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
13WP8008P071-60 Whirlpool Grommet
1474010651 Whirlpool Oven Fiber Glass Gasket
15WP74010652 Whirlpool Gasket
