JGC9430ADF 03 – TOP ASSEMBLY

JGC9430ADF 03 – TOP ASSEMBLY

Written by

in

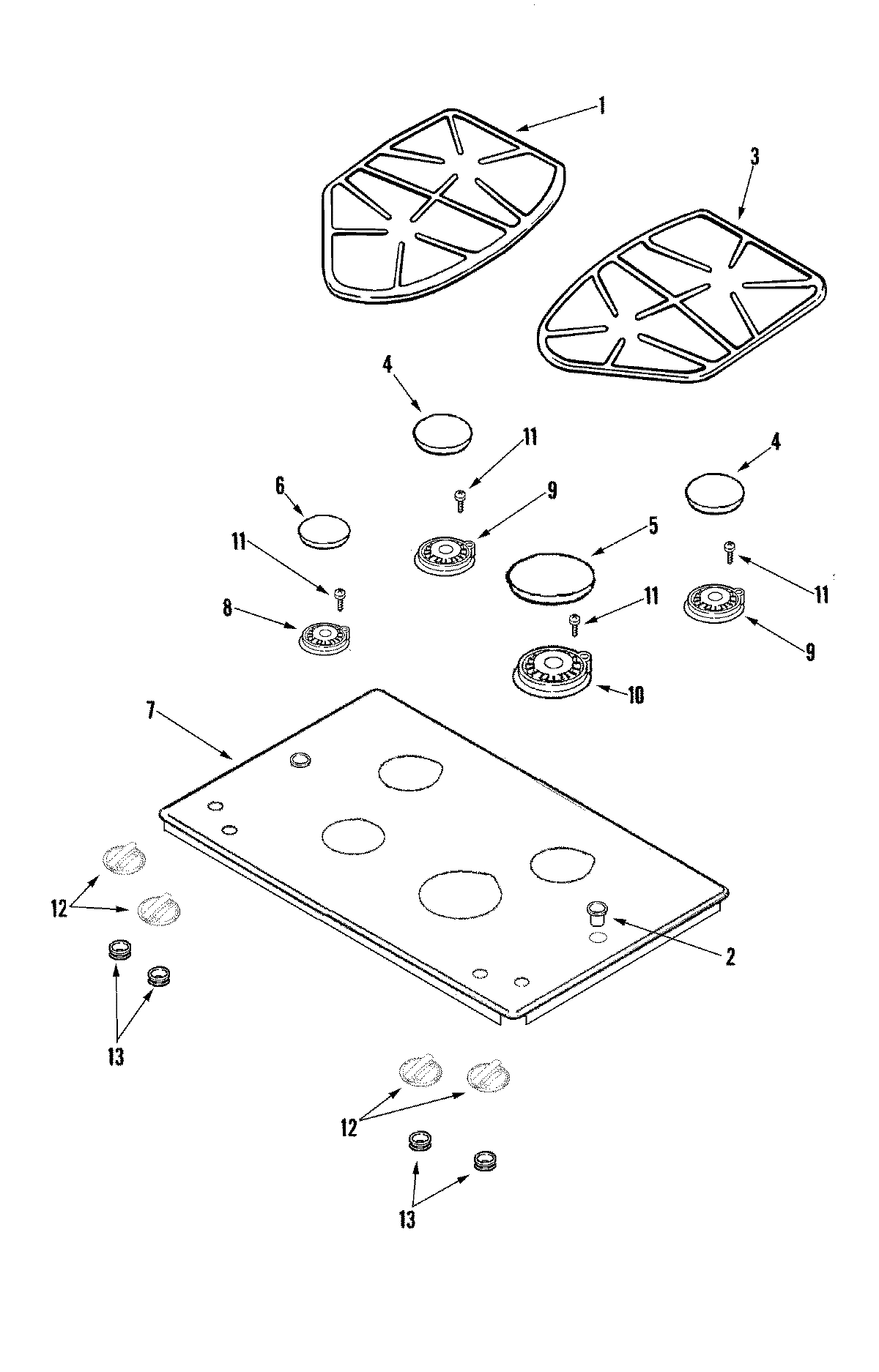

JGC9430ADF 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74008004
2MAY 74007980
2MAY 74007982
3MAY 74008003
4WP74007752 Whirlpool Burner Cap (Medium Gray)
5WP74007420 Whirlpool Large Gray Burner Cap
6CAP, BURNER (SMR-GRY)
7MAY 74008009
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10WP74009336 Whirlpool Oven Top Igniter
11WP3368921 Whirlpool Screw
12WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
13MAY 71002371
1474010651 Whirlpool Oven Fiber Glass Gasket
15WP74010652 Whirlpool Gasket
