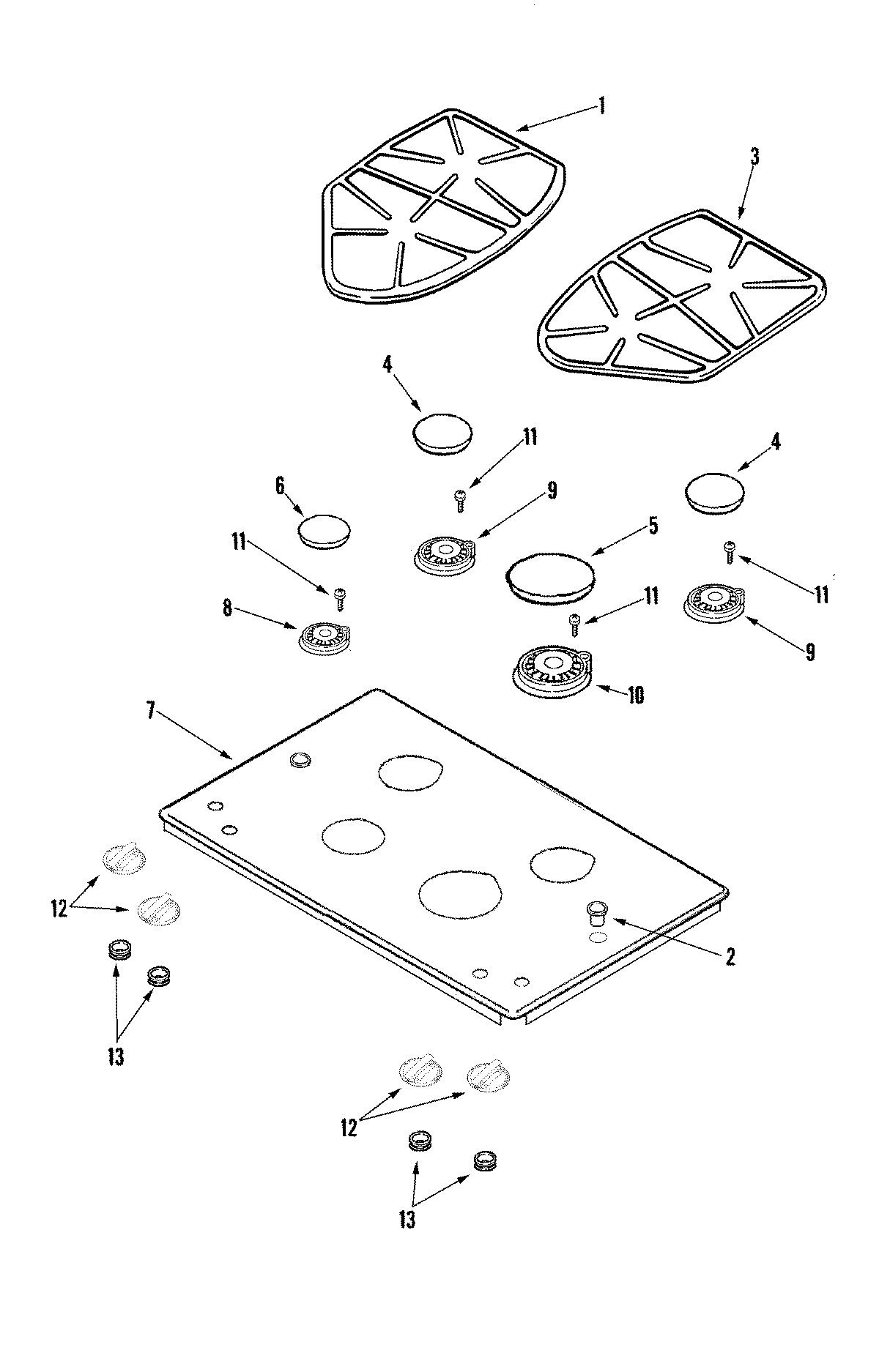

JGC9430ADS 03 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74008002
2	MAY 74007982
2	MAY 74007981
3	GRATE (BLK-RT)
4	WP74007925 Whirlpool Burner Cap
5	WPW10154101 Whirlpool Burner Cap
6	WP3191898 Whirlpool Surface Burner Cap Black
7	MAY 74008011
8	74007734 Whirlpool Burner Assembly
9	74007735 Whirlpool Burner Assembly
10	74007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10	WP74009336 Whirlpool Oven Top Igniter
11	WP3368921 Whirlpool Screw
12	WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
13	WP8008P071-60 Whirlpool Grommet
14	74010651 Whirlpool Oven Fiber Glass Gasket
15	WP74010652 Whirlpool Gasket
