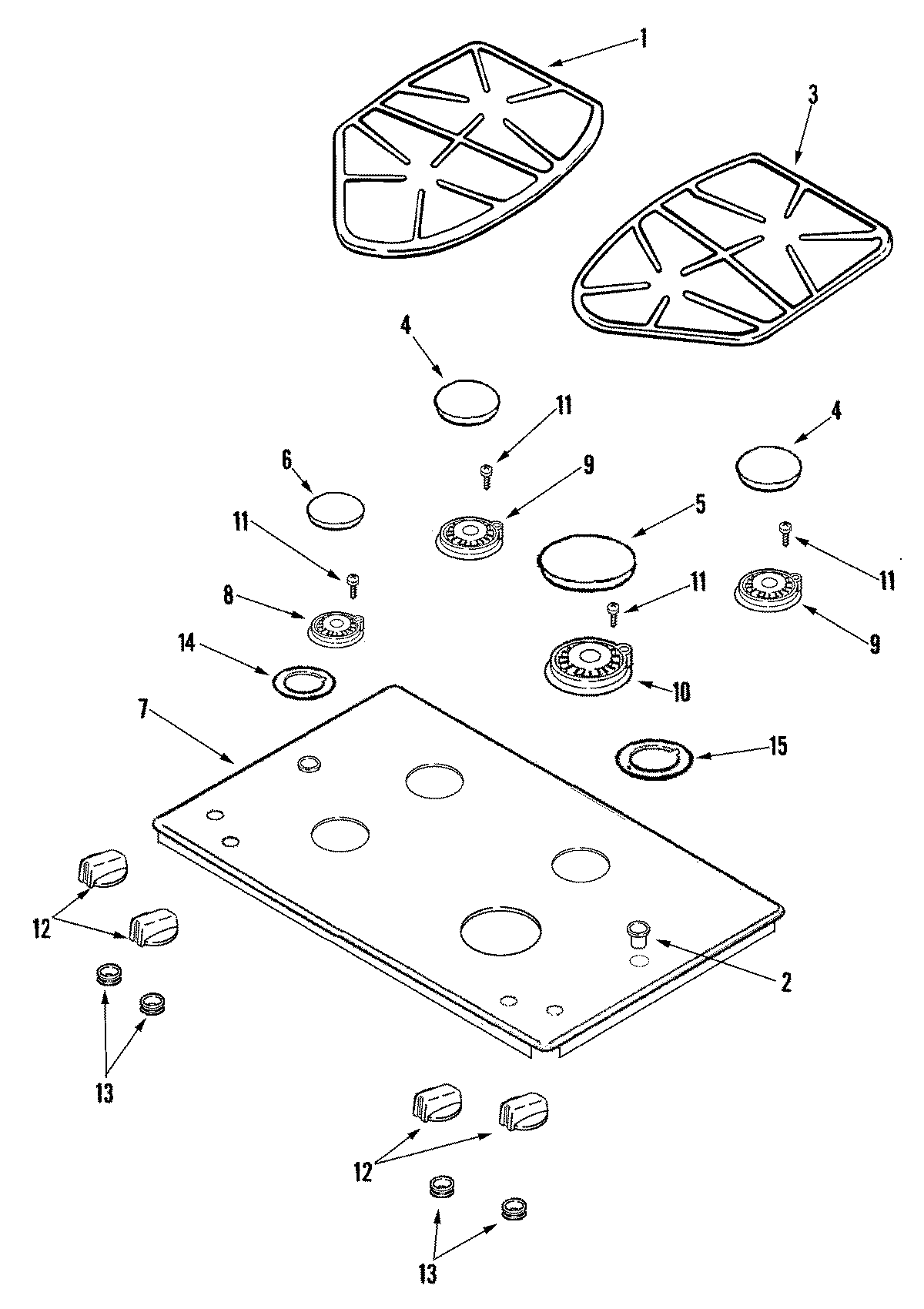

JGC9430BDB 03 – TOP ASSEMBLY

JGC9430BDB 03 – TOP ASSEMBLY

Written by

in

JGC9430BDB 03 – TOP ASSEMBLY

Products

PositionProduct
1GRATE (LEFT)
1GRATE (BLK-RT)
2MAY 74007981
2MAY 74007982
3GRATE (RIGHT)
4Cap, Burner (12.5K RF, LR)
5CAP, BURNER (EX-LRG/BLK)
6WP8284669 Whirlpool Burner Cap
7MAY 7920P176-60
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10WP74009336 Whirlpool Oven Top Igniter
11WP3368921 Whirlpool Screw
12MAY 7733P503-60
13WP8008P071-60 Whirlpool Grommet
1474010651 Whirlpool Oven Fiber Glass Gasket
15WP74010652 Whirlpool Gasket
