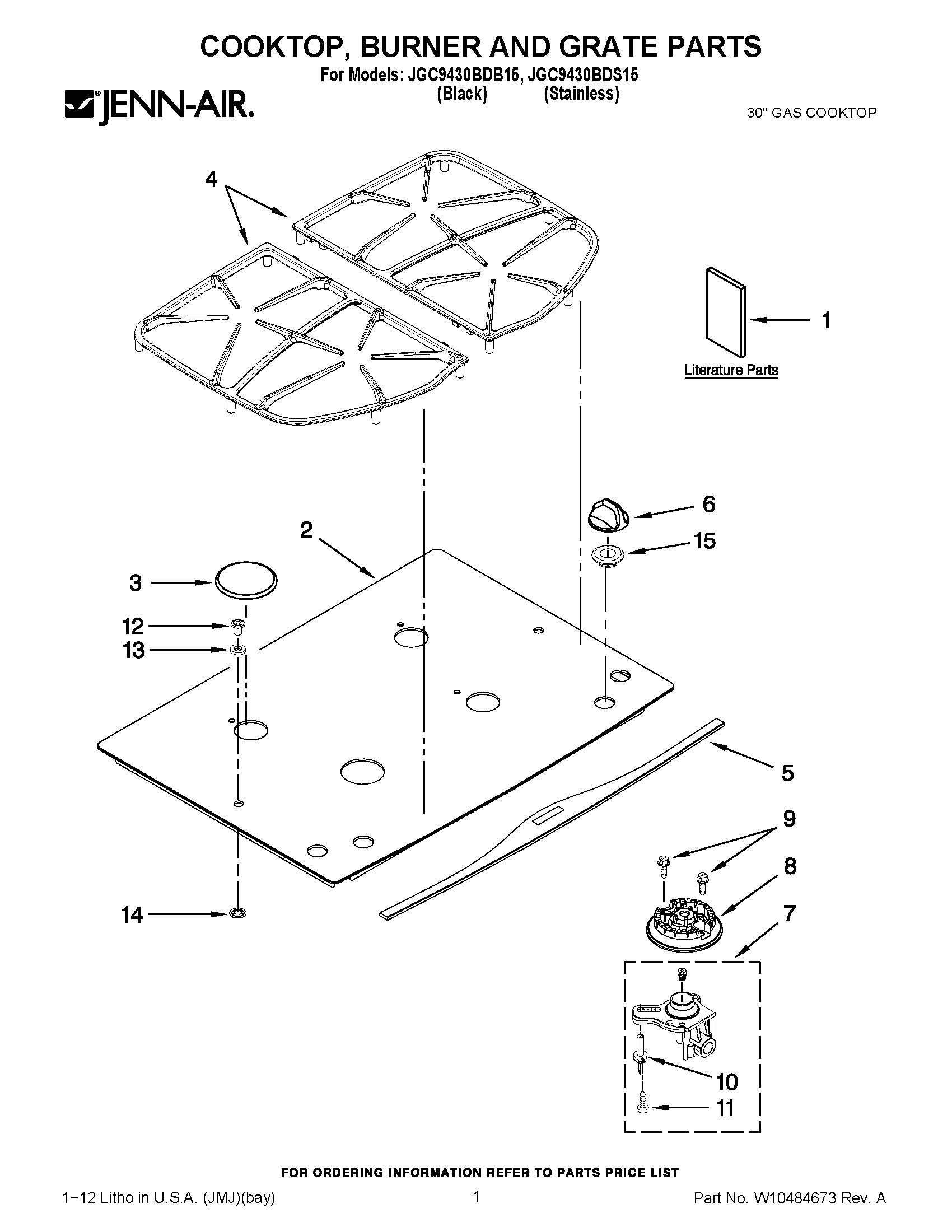

JGC9430BDB15 01 – COOKTOP, BURNER AND GRATE PARTS

JGC9430BDB15 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGC9430BDB15 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10210794
1MAY W10204447
1MAY W10203804
1TIPS, SAFE COOKING (FRENCH)
2MAY W10204896
3CAP, BURNER (LF & RR)
3CAP, BURNER (LR & RF)
3CAP, BURNER (CTR)
4GRATE (LEFT)
4GRATE (RIGHT)
5TRIM,COOKTOP SS MODEL ONLY (REAR)
5MAY W10168877
6KNOB, CONTROL
7MAY 7527P116-60
7MAY 7527P118-60
7MAY 7527P119-60
7MAY 7527P117-60
8ASSEMBLY, BURNER AUXILIARY (LEFT REAR & RIGHT REAR)
8HEAD, BURNER (LR & RF)
8HEAD, BURNER (CTR)
9WP3368921 Whirlpool Screw
10IGNITOR
11MAY 7101P606-60
12MAY 8008P064-60
13MAY 7109P081-60
14MAY 7114P008-60
15MAY 8008P071-60
