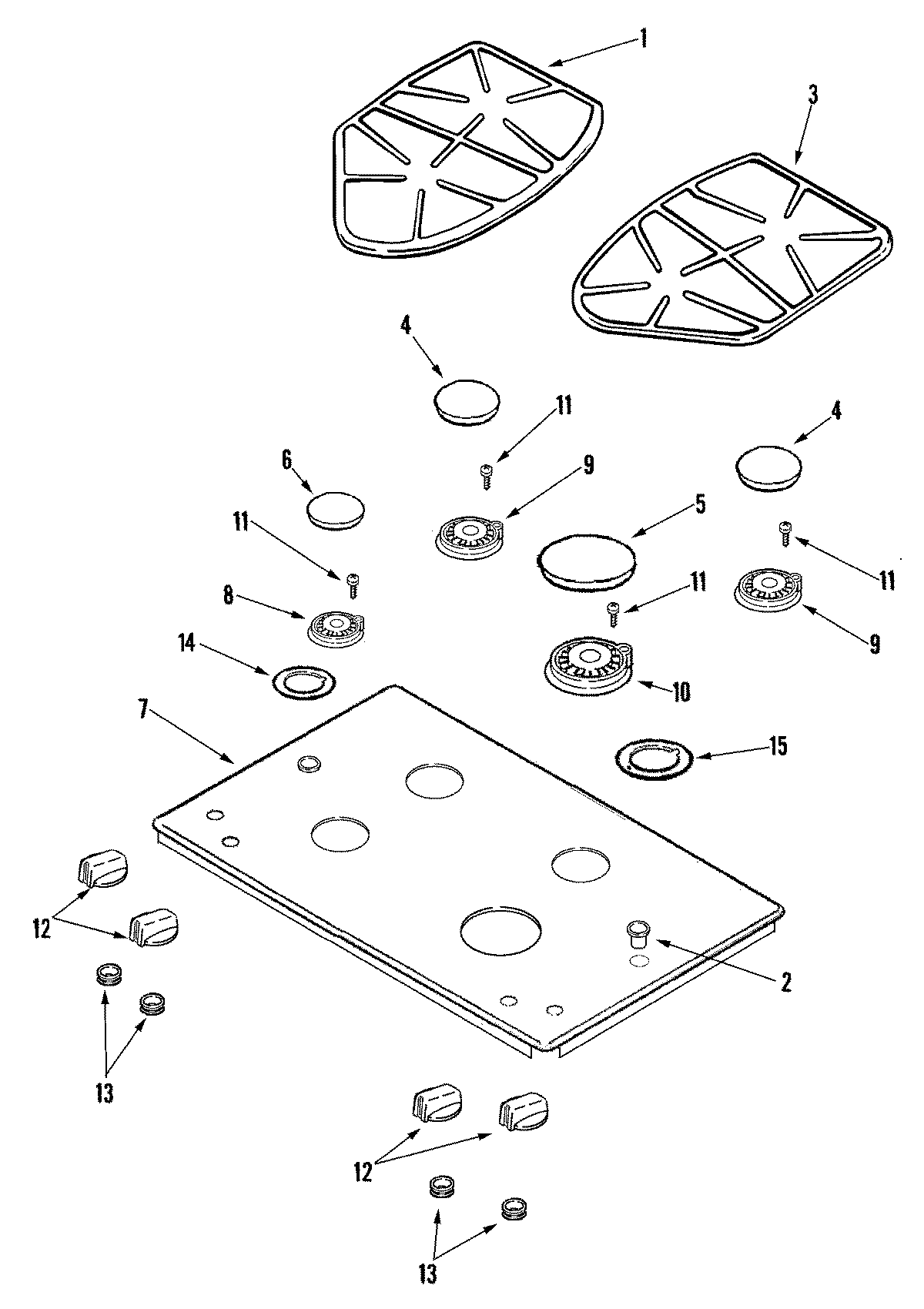

JGC9430BDF 03 – TOP ASSEMBLY

JGC9430BDF 03 – TOP ASSEMBLY

Written by

in

JGC9430BDF 03 – TOP ASSEMBLY

Products

PositionProduct
1GRATE (LEFT)
1GRATE (BLK-RT)
2MAY 74007980
2MAY 74007982
3GRATE (RIGHT)
4Cap, Burner (12.5K RF, LR)
5CAP, BURNER (EX-LRG/BLK)
6WP8284669 Whirlpool Burner Cap
7COOKTOP (FROST WHITE)
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10WP74009336 Whirlpool Oven Top Igniter
11WP3368921 Whirlpool Screw
12MAY 7733P503-60
13WP8008P071-60 Whirlpool Grommet
1474010651 Whirlpool Oven Fiber Glass Gasket
15WP74010652 Whirlpool Gasket
